RVFM DF-03S-42C Micros 3A 125VAC Lever R Angle Left
|
|
|
A value for money super-miniature microswitch suitable for a wide variety of applications. - Microswitch
- Lever actuator
- Right angle left mounting
- 125V AC contact voltage
- 3A contact current
- NO-NC contact
- PCB thru-hole terminals
- -25 to +85°C operating temperature
- 1,000,000 ops operating life
- 50gf operating force
- 8gf release force
- 3mm pre-travel
- 0.6mm over travel
- 0.8mm differential movement
- 12.7mm long, 5.8mm wide, 6.65mm high
- 0.5g weight
|
|
Price |
|
Rapid Electronics Code |
£0.20 |
|
78-0877 |
|
|
More info / buy |
|
|
RVFM DF-03S-42D Micros 3A 125VAC Lever R Angl Right
|
|
|
A value for money super-miniature microswitch suitable for a wide variety of applications. - Microswitch
- Lever actuator
- Right angle right mounting
- 125V AC contact voltage
- 3A contact current
- NO-NC contact
- PCB thru-hole terminals
- -25 to +85°C operating temperature
- 1,000,000 ops operating life
- 50gf operating force
- 8gf release force
- 3mm pre-travel
- 0.6mm over travel
- 0.8mm differential movement
- 12.7mm long, 5.8mm wide, 6.65mm high
- 0.5g weight
|
|
Price |
|
Rapid Electronics Code |
£0.90 |
|
78-0878 |
|
|
More info / buy |
|
|
RVFM DF-P1S-42P Micros 0.1A 30VDC Lever
|
|
|
A value for money super-miniature microswitch suitable for a wide variety of applications. - Microswitch
- Lever actuator
- Straight mounting
- PCB thru-hole terminals
- 30V DC contact voltage
- 100mA contact current
- NO-NC contact
- -25 to +85°C operating temperature
- 1,000,000 ops operating life
- 50gf operating force
- 8gf release force
- 3mm pre-travel
- 0.6mm over travel
- 0.8mm differential movement
- 12.7mm long, 5.8mm wide, 6.65mm high
- 0.5g weight
|
|
Price |
|
Rapid Electronics Code |
£0.68 |
|
78-0870 |
|
|
More info / buy |
|
|

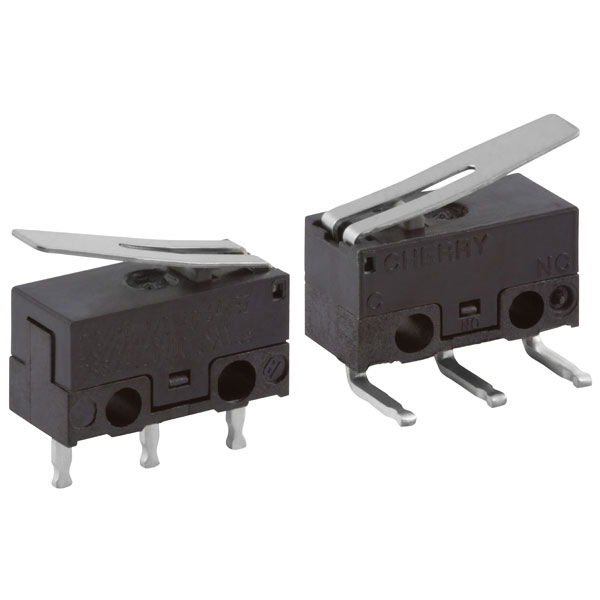

ZF DG13-B1LA DG13-B1AA Microswitch SPDT 3A 125VAC 2A 30VDC Lever straight
|
|
|
This DG13-B1LA subminiature microswitch is suitable for many industry applications. - Very small size (only 12.8 x 5.8 x 6.5mm)
- PCB terminal, straight
- High mechanical operating life
- 125V AC
- Operating temperature -25 to +85 °C
|
|
Price |
|
Rapid Electronics Code |
£2.78 |
|
50-1145 |
|
|
More info / buy |
|
|
ZF DG13-B3LA Microswitch SPDT 3A 125V AC; 2A, 30V DC, Lever, Left-hand PCB
|
|
|
This DG13-B3LA subminiature microswitch is suitable for many industry applications. - Very small size (only 12.8 x 5.8 x 6.5mm)
- PCB terminal, angled
- High mechanical operating life
- 125V AC
- Operating temperature -25 to +85 °C
|
|
Price |
|
Rapid Electronics Code |
£6.05 |
|
50-1146 |
|
|
More info / buy |
|
|

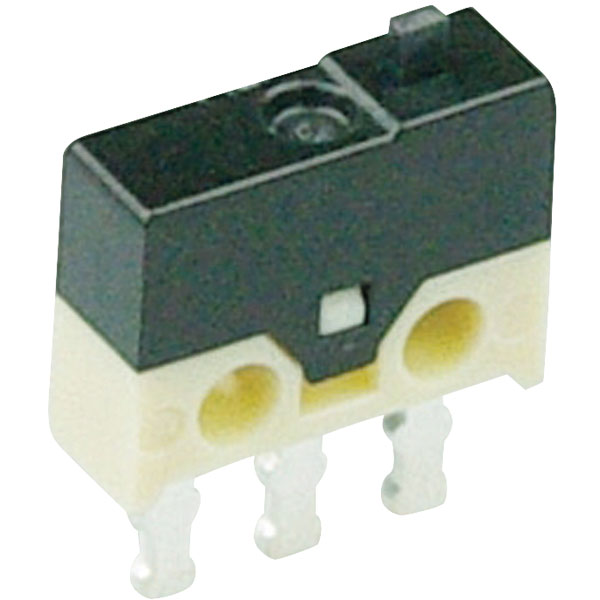

ZF DH2C-B1PA Microswitch SPDT 5-500mA, 30VDC, Lever, Solder
|
|
|
A DH2C-B1PA ultraminiature microswitch, suitable for applications up to 30V DC. - 5 to 500mA @ 30V DC
- Just 8.2mm x 2.7mm x 6.2mm (0.323 x 0.106 x 0.244 inches)
- Specially designed for low switching currents
- For use on circuit boards
- SPST, On-On
- Maintained-Momentary
- Degree of protection IP40
|
|
Price |
|
Rapid Electronics Code |
£4.40 |
|
50-2662 |
|
|
More info / buy |
|
|
