A splitter from AV:Link suitable for dividing signals between receivers.

• Typical insertion loss 6dB

BKL Electronics 0403133 HF-Adaptor Coaxial Plug to F-Coupling 90°.

BKL Electronics 0403137 HF-Adaptor Coaxial Coupling to F-Coupling, 90°.

BKL Electronics 0409063 A gold-plated panel mount adaptor, SMA female to SMA female. Fits a 6.5mm diameter panel cut out.

• Connector type: Adaptor, mount
• Connector type : SMA adaptor
• Connector/Input type A: SMA socket
• Content: 1 pc
• Impedance: 50 O
• Manufacturer part No.: 0409063

BKL Electronics 0409095 This is an inline adaptor with a male SMA connector to a F-socket. Nickel plated brass body with gold plated contacts

• Connector type: Adaptor, straight
• Connector type : SMA adaptor
• Connector/Input type A: SMA plug
• Content: 1 pc
• Impedance: 50 O
• Manufacturer part No.: 0409095

BKL Electronics 0412010 The HF-Adaptor FME Connector to SMA Socket is a standard FME (For Mobile Equipment) socket that facilitates extensions or transitions.

The HF Adaptor N Plug to UHF Socket is a standard N male to UHF coupling.

The SMA Adaptor SMA Connector to BNC Coupler 409033 is a standard SMA (Sub-Miniature-A) Male to BNC Female coupler used mainly for applications in the frequency ranges 1GHz to 18/26.5 GHz (depending upon the design). The plug connector is considered as male and the socket as female, depending upon the design of the inner conductor as metallic pin or as metallic pipe. It has a high mechanical strength owing to the screw lock (8mm).

The SMA Connector to TNC Coupler Adaptor is a standard SMA (Sub-Miniature-A) male to TNC-coupling used mainly for applications in the frequency ranges 1GHz to 18/26.5 GHz (depending upon the design). The plug connector is considered as male and the socket as female, depending upon the design of the inner conductor as metallic pin or as metallic pipe. It has a high mechanical strength owing to the screw lock (8mm).

The SMA Connector to SMA Connector Adaptor is a standard SMA (Sub-Miniature-A) male to SMA male is used mainly for applications in the frequency ranges 1GHz to 18/26.5 GHz (depending upon the design). The plug connector is considered as male and the socket as female, depending upon the design of the inner conductor as metallic pin or as metallic pipe. It has a high mechanical strength owing to the screw lock (8mm).

The SMA Adaptor to SMA Coupler is a standard SMA (Sub-Miniature-A) coupler to SMA coupler is used mainly for applications in the frequency ranges 1GHz to 18/26.5 GHz (depending upon the design). The plug connector is considered as male and the socket as female, depending upon the design of the inner conductor as metallic pin or as metallic pipe. It has a high mechanical strength owing to the screw lock (8mm).

Thanks to its secure screw interlock, this product is ideal for use in moving assemblies and connections within devices.

Thanks to its secure screw interlock, this product is ideal for use in moving assemblies and connections within devices.

The SMA Reverse Connector to SMA Reverse Socket Adaptor is a standard Reverse SMA (Sub-Miniature-A) male to SMA female reverse used mainly for applications in the frequency ranges 1GHz to 18/26.5 GHz (depending upon the design). The plug connector is considered as male and the socket as female, depending upon the design of the inner conductor as metallic pin or as metallic pipe. It has a high mechanical strength owing to the screw lock (8mm).

The SMA Reverse Connector to SMA Reverse Socket Adaptor is a standard Reverse SMA (Sub-Miniature-A) male to SMA female standard used mainly for applications in the frequency ranges 1GHz to 18/26.5 GHz (depending upon the design). The plug connector is considered as male and the socket as female, depending upon the design of the inner conductor as metallic pin or as metallic pipe. It has a high mechanical strength owing to the screw lock (8mm).

IntelliConnect 0124-P1CH-000-102Z TNC dust cap with cord.

• TNC dust cap plug
• Connector meets: MIL-STD-348 FIG. 313-1, MIL-PRF-39012
• Assembly meets: RoHS 2002/95/EC standards
• Connector durability: 500 cycles min.

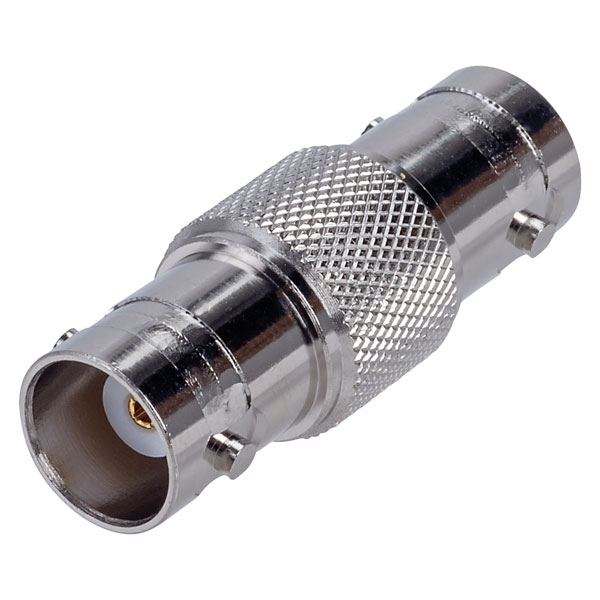

A straight BNC adaptor that is useful for a variety of applications including networked computer systems.

• Female to female
• Impedance 50Ω
• Bright nickel plated brass body
• Centre contact: gold-plated beryllium copper
• Dielectric: PTFE
• Ideal for joining 2 cables
• Length: 33.5mm
• Mueller type BU-P3283

BNC plug to shrouded socket adaptor which complies with the safety requirements of IEC1010.

• Sockets are colour coded red and black for easy identification
• Fully insulated BNC plug and sockets completely isolate the user from any potential hazard
• Current rating 3A
• Shrouded sockets available in 2 and 4mm options
• Compliant with 500V CAT I and 150V CAT III
• CE approved

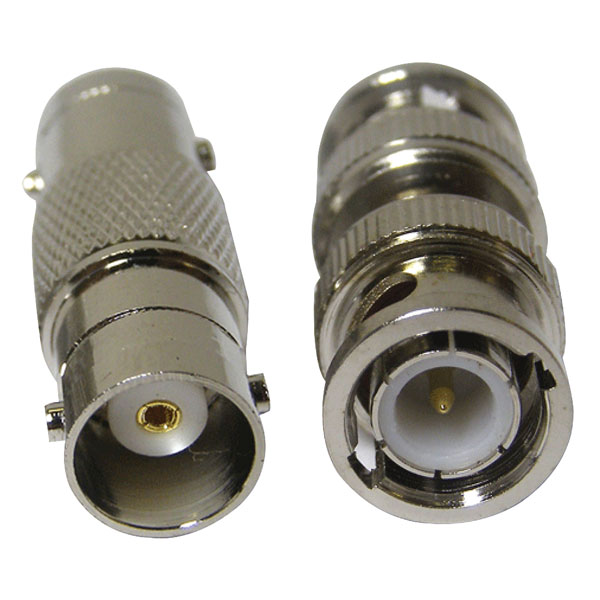

A BNC socket to BNC socket RF adaptor from RF Solutions.

• 50Ω impedance
• RF Solutions type ADP-BNCM-BNCM

A type N plug to type N plug RF adaptor from RF Solutions.

• 50Ω impedance
• RF Solutions type ADP-NM-NM

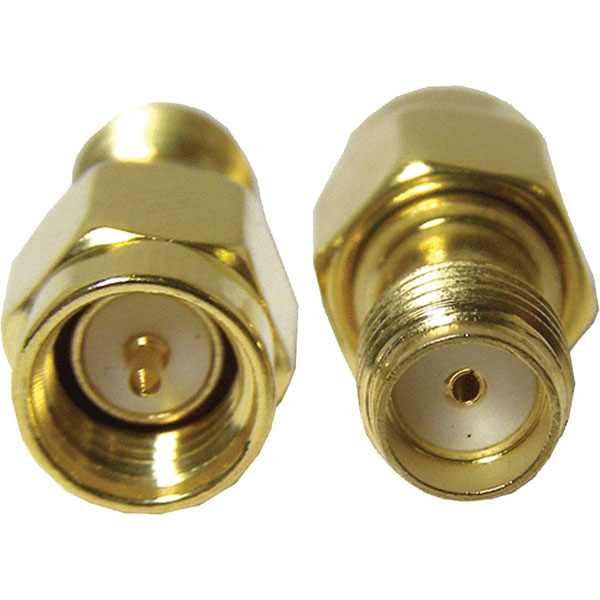

An SMA socket to SMA socket RF adaptor from RF Solutions.

• 50Ω impedance
• RF Solutions type ADP-SMAF-SMAF

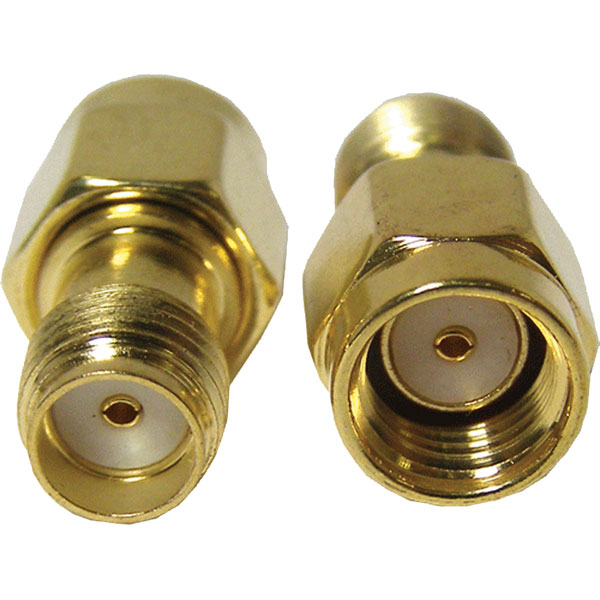

A reverse polarity SMA plug to normal SMA socket RF adaptor from RF Solutions.

• 50Ω impedance
• RF Solutions type ADP-SMAMRP-SMAF

A reverse polarity SMA plug to reverse polarity SMA socket RF adaptor from RF Solutions.

• 50Ω impedance
• RF Solutions type ADP-SMAMRP-SMAFRP

An SMA plug to SMA socket RF adaptor from RF Solutions.

• 50Ω impedance
• RF Solutions type ADP-SMAM-SMAF

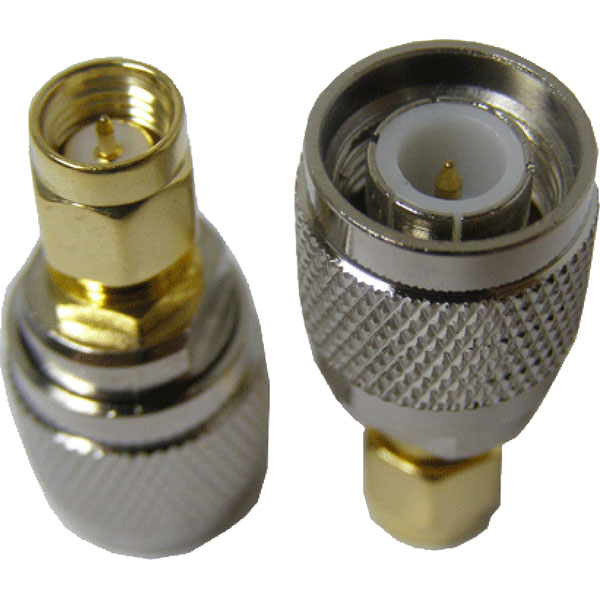

An SMA plug to TNC plug RF adaptor from RF Solutions.

• 50Ω impedance
• RF Solutions type ADP-SMAM-TNCM

An FME female to SMA female RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Siretta type ADAPT/FMEF/SMAF

An FME male to SMA female RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Siretta type ADAPT/FMEM/SMAF

An FME male to SMA male RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Impedance 50Ω
• Siretta type ADAPT/FMEM/SMAM

An SMA female to SMA female RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Siretta type ADAPT/SMAF/SMAF

An SMA female to SMA reverse polarity female RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Siretta type ADAPT/SMAF/SMAF/RP

An SMA female to TNC female RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Siretta type ADAPT/SMAF/TNCF

An SMA female to TNC male RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Siretta type ADAPT/SMAF/TNCM

An SMA male to SMA reverse polarity female RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Siretta type ADAPT/SMAM/SMAF/RP

An SMA male to SMA male RF adaptor from Siretta.

• Operating frequency up to 6GHz
• Siretta type ADAPT/SMAM/SMAM

This 1 x BNC socket to 1 x BNC socket adaptor is part of a range of adaptors suited to interconnection of a wide range of BNC plugs and sockets with nominal impedance of 50Ω.

• Suited to many applications including networked computer systems
• Bright nickel plated body
• Diameter 9.6mm

This 2 x BNC socket to 1 x BNC plug adaptor is part of a range of adaptors suited to interconnection of a wide range of BNC plugs and sockets with nominal impedance of 50Ω.

• Suited to many applications including networked computer systems
• Bright nickel plated body

This 1 x BNC socket to 2 x BNC socket adaptor is part of a range of adaptors suited to interconnection of a wide range of BNC plugs and sockets with nominal impedance of 50Ω.

• Suited to many applications including networked computer systems
• Bright nickel plated body

This 1 x BNC plug to 2 x 4mm terminal adaptor is a useful adaptor comprising a BNC plug terminated to twin 4mm terminals in red and black with 4mm sockets.

• Signal is connected to red terminal
• 19mm centres

1 x N female to 1 x N female adaptor with brass contact material.

• Suitable for connecting two N-male connectors
• Brass centre pins
• Nickel plated body
