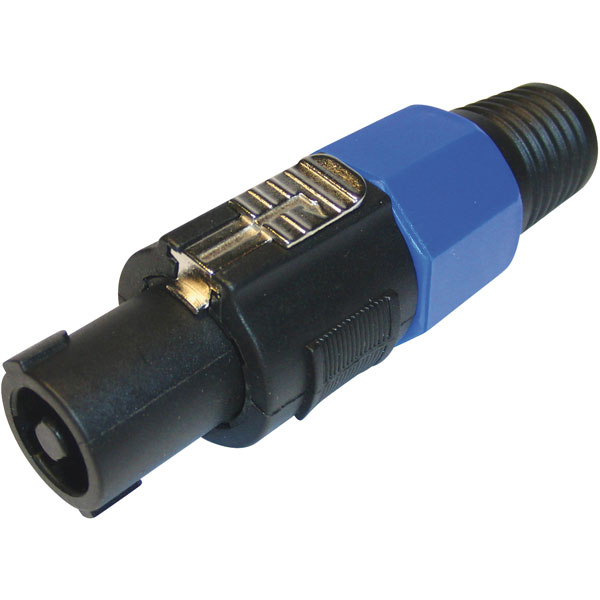

The Cliffcon® S Connector is 4-pole plug without PVC cable grommet that has been specifically designed for audio applications.

• Blue nut as standard

The Cliffcon® S Connector Flange Socket (small flange) is a quality 4-pole chassis socket that is compatible with all CliffCon® S 4 pole plugs.

The Cliffcon® S Connector Flange Socket (large square type) is a quality 4-pole chassis socket that is compatible with all CliffCon® S 4 pole plugs.

This plug is supplied in 2-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 2
• Type: FC684202
• Plug construction: Plug, mounting
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684202
• Contact material: Tin plated
• Specification: Installation plug

This plug is supplied in 3-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 3
• Type: FC684203
• Plug construction: Plug, mounting
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684203
• Contact material: Tin plated
• Specification: Installation plug

This plug is supplied in 4-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 4
• Type: FC684204
• Plug construction: Plug, mounting
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684204
• Contact material: Tin plated
• Specification: Installation plug

This mounting connector is supplied in 5-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 5
• Type: FC684205
• Plug construction: Plug, mounting
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684205
• Contact material: Tin plated
• Specification: Mounted connector

This panel connector is supplied in 6-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 6
• Type: FC684206
• Plug construction: Plug, mounting
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684206
• Contact material: Tin plated
• Specification: Panel connector

This installation plug is supplied in 8-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 8
• Type: FC684207
• Plug construction: Plug, mounting
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684208
• Contact material: Tin plated
• Specification: Installation plug

This socket is supplied in 2-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 2
• Type: FC684212
• Plug construction: Socket, Cable Mount
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684212
• Contact material: Tin plated
• Specification: Cable socket 180

This socket is supplied in 3-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 3
• Type: FC684213
• Plug construction: Socket, Cable Mount
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684213
• Contact material: Tin plated
• Specification: Cable socket 180°

This socket is supplied in 4-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 4
• Type: FC684214
• Plug construction: Socket, Cable Mount
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684214
• Contact material: Tin plated
• Specification: Cable socket 180°

This socket is supplied in 5-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 5
• Type: FC684215
• Plug construction: Socket, Cable Mount
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684215
• Contact material: Tin plated
• Specification: Cable socket 180°

This socket is supplied in 6-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 6
• Type: FC684216
• Plug construction: Socket, Cable Mount
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684216
• Contact material: Tin plated
• Specification: Cable socket 180°

This socket is supplied in 8-pole. Primarily it is intended for low voltage and signal applications. Contacts are tin plated, and other metal parts are brass, nickel plated.

• Number of pins: 8
• Type: FC684218
• Plug construction: Socket, Cable Mount
• Nominal voltage: 48V
• RoHS compliant: yes
• Nominal current: 1A
• Manufacturer part no.: FC684218
• Contact material: Tin plated
• Specification: Cable socket 180°

The Cliffcon® S Connector Cable Plug is a quality 4 pole plug with PVC cable grommet that has been specifically designed for audio applcations.

• Anti-kick device
• Blue nut as standard

The Cliffcon® S Connector Cable Plug is a quality 4 pole socket with PVC cable grommet, specifically designed for audio applcations.

• Bend protection
• Blue nut as standard

The Cliff FM12300 is a 250V AC, 20A CLIFFCON- P-Series connector socket in Blue. This socket is designed to be used with the Cliff FM12301 plug.

Keyed plug locks into socket to prevent insertion of the wrong plug.

One socket supplied only.

• Power In Socket
• 20A, 250V AC
• IP65 Rated
• Panel Mount

The Cliff FM12301 is a 250V AC, 20A CLIFFCON- P-Series connector Plug in Blue. This plug is designed to be used with the Cliff FM12300 socket.

Keyed plug locks into socket to prevent insertion of the wrong plug.

One connector supplied only.

• Power In Plug
• 20A, 250V AC
• IP65 Rated

The Cliff FM12315 is a 250V AC, 20A CLIFFCON- P-Series connector socket in Grey. This socket is designed to be used with the Cliff FM12316 plug.

Keyed plug locks into socket to prevent insertion of the wrong plug.

One socket supplied only.

• Power Out Socket
• 20A, 250V AC
• IP65 Rated
• Panel Mount

The Cliff FM12316 is a 250V AC, 20A CLIFFCON- P-Series connector Plug in Grey. This plug is designed to be used with the Cliff FM12315 socket.

Keyed plug locks into socket to prevent insertion of the wrong plug.

One connector supplied only.

• Power Out Plug
• 20A, 250V AC
• IP65 Rated
