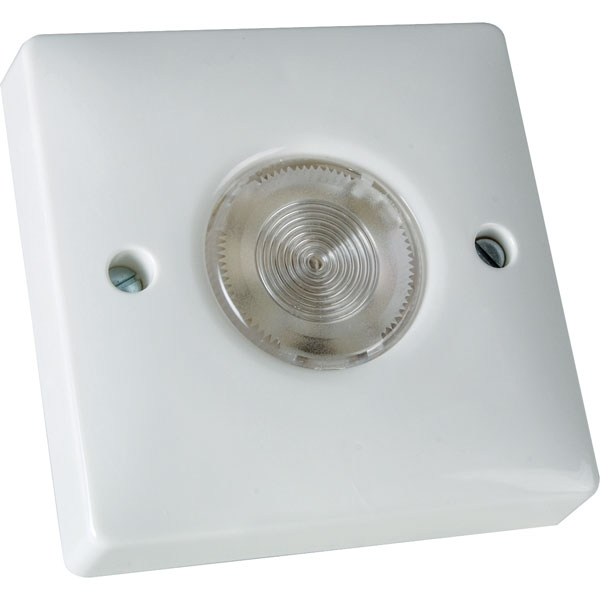

The Timeguard DS2 Electronic Time Delay Switch is a single gang push button delay switch with centre button neon. Light ON times for the Timeguard DS2 are adjustable via a tamperproof potentiometer from 10 seconds to 2 hours approx. in 4 ranges (selectable by 2 position DIL switch).

• Adjustable light ON times from 10 seconds to 2 hours approx. by potentiometer in 4 ranges (selectable by 2 position DIL switch): 3 sec to 30 sec, 12 sec to 2min 4 sec, 1 min 36 sec to 16 min 31 sec, 12 min 26 sec to 2hrs 12 min (all nominal)
• For use with incandescent lighting up to 1.5kW, 2kW heating, 18 to 500W fluorescent and 20 to 200W of low voltage lighting (not suitable for low energy lighting)
• Note: 3 wire connection; Neutral required
• Manufacturer's part Timeguard DS2

The Timeguard FLA01 Fluorescent Strip Light Adaptor allows up to 85W of fluorescent strip lights or low energy lamps to be used with ZV700, ZV210 & ZV215. The FLA01 connects between switched live and neutral where space allows.

• Can be used with the Digital Light Switch (ZV700) for different loads
• One adaptor per switch
• Manufacturers part no. Timeguard FLA01

The Timeguard ZV700B 7 Day Digital Security Light Switch is a 24 hour/7 day digital light switch which will automatically turn filament, fluorescent, low energy and low voltage lights ON and OFF at pre-programmed times. An optional dusk start feature turns lights ON at dusk and OFF at a programmed time.

The ZV700B combines the function of a manual light switch with automatic timed control of lighting on a weekly basis available at the slide of a switch. There is a further option of starting an automatic lighting period at dusk but ending it in the usual way with a timed OFF.

The ZV700B is easily programmed using the two buttons and the digital display. Either automatic mode is selectable using the three position slide switch and in the third position, manual mode, the lamp is turned ON and OFF as normal using the rocker switch.

The ZV700B has two enhanced features, the first is battery back-up of clock time and programme memory and the second is the ability to switch low energy, fluorescent and low voltage lighting.

• 6 ON/OFF switching programmes
• Can be set to operate over all weekdays, both weekend days, all 7 days (24 hour operation) or on individual days
• Three position slide switch allows manual operation, auto operation with timed ONs and OFFs or auto and photocell operation giving dusk start and timed OFF with additional timed ONs and OFFs if required
• Built-in 1000 hour rechargeable battery retains programmes and clock times during power failure
• Controls 40 - 300W of filament, 20 - 150W low energy (minimum bulb size 20W), 18 - 76W of fluorescent and 20 - 200W of low voltage lighting
• Note: FLA01 strip light adaptor may be required in certain installations
• Manufacturer's part Timeguard ZV700B
