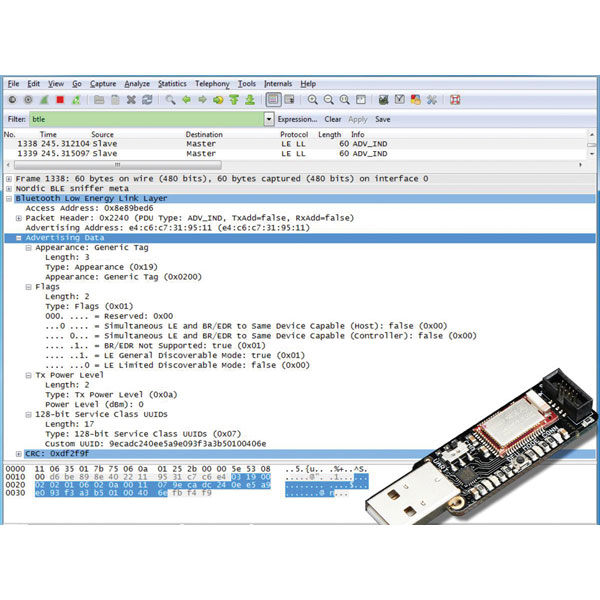

The Adafruit Bluefruit LE Sniffer is a must have tool for developers of hardware or software that relies on Bluetooth LE. This handy gadget will listen in on data traffic between two devices and push the conversation to Wireshark for analysis down to the packet level. On Windows machines you can use Nordic's software to stream live data to Wireshark or save it to a pcap file for offline analysis. Adafruit have example software in Python which will work with any operating system to capture Bluetooth data to pcap files. The Bluetooth LE Sniffer only works with Bluetooth LE devices, it can't be used to sniff Bluetooth Classic traffic. As the board's firmware occupies the whole of the onboard memory, there's no room for a bootloader which means that it can't be re-programmed over the air. To re-programme the board you can use a J-Link and SWD adaptor. Supplied as a fully assembled board.

• Analyse Bluetooth LE data links using Wireshark
• Stream live data on Windows, capture pcap files on other operating systems
• Examine data traffic down to the packet level
• Adafruit part no. 2269

We also supply this board with serial link firmware (Bluetooth LE Friend, 75-0585) which does include a bootloader so that you can programme it over the air. The Friend board does not have sniffing capabilities.

*Customers looking to resell on eBay or Amazon should contact Adafruit directly.

The Adafruit HUZZAH ESP8266 WiFi Breakout Boards use the Internet of Things chip of choice, the ESP8266, running at 80MHz, with 4Mbytes of Flash memory, 9 x GPIO pins, and 1 x analogue input. Adafruit have produced these breadboard friendly breakouts with an on board antenna so you can get to know this very successful chip. They come pre-programmed with NodeMCU Lua firmware which lets you perform complex network tasks in a small number of steps. In its raw state the EPS8266 can be a difficult chip to work with, but Adafruit have performed their magic to take the pain away. They added 2 x push buttons (RESET and user), an LED for blinking, 500mA 3.3V DC regulator, and 2 x diode protected power inputs. You can program it via a standard FTDI cable using its on board Lua interpreter or download a bootloader to it and treat it like an Arduino with WiFi. Supplied as an assembled and tested ESP8266 breakout, plus strips of 0.1in. header pins for you to solder on as required.

Adafruit provide a free tutorial with masses of information to help get you started.

• FTDI programmable ESP8266 with built in antenna
• Pre-programmed with NodeMCU Lua interpreter
• 4 x mounting holes
• Dimensions: 25 x 38 x 5mm (1 x 1.5 x 0.2in.)
• Adafruit part no.: 2471

We supply either the SMT breakout (73-5319) which is the ESP8266 chip plus an antenna on a breadboard friendly breakout, or the same module mounted on a HUZZAH breakout (73-5312) with additional components to make your life easier. If you are an experienced user then feel free to use the SMT breakout or use the HUZZAH breakout for prototyping, then the SMT version for deployment.

The FTDI cable is not included, but we do stock a suitable cable if you don't mind a little hacking.

*Customers looking to resell on eBay or Amazon should contact Adafruit directly.

The Adafruit Bluefruit Friend Bluetooth Low Energy Breakout Board lets you cut through the pile of Bluetooth Classic APIs, development tools and licences, and treat a Bluetooth LE connection just like a serial link. Send and receive keystrokes from your favourite terminal software, from software such as Python (via PySerial) or from your smartphone. Adafruit have built a software stack right into the Bluetooth LE board, so you can focus on sending and receiving the data you want for your application. Its optional command mode lets you create GATT services and characteristics, make it into a UriBeacon and set the device advertising. The UriBeacon is part of the Google "Physical Web" initiative where a Bluetooth LE device broadcasts a URI which smartphone and tablet apps can detect. For example, the URI could lead to an interactive page of sensor data. Another particularly useful feature is the over the air (OTA) programming from any BLE capable iOS or Android device.

The Bluefruit Friend is based around the very capable MDBT40 chipset (similar to the Nordic nRF51822) with Adafruit's own 100% custom firmware. The MDBT40 has an ARM Cortex M0 core running at 16MHz, 256kbytes Flash memory, 32kbytes SRAM. It talks to the host microcontroller over 4 or 5 wire SPI.

Supplied as a fully assembled and tested Bluetooth Low Energy board plus a strip of 0.1in. header pins for you to solder on as required. See Adafruit's "Quick Start" guide, part of their massive free tutorial with software examples. They also provide an Android app and an iOS app which can talk BLE to your project. Please note, the Adafruit Metro is not included but we do stock the Adafruit Mini if you need one. We can also supply a wide range of breadboards.

• Easily create Bluetooth Low Energy (BLE) connections with compatible devices
• Supports Google's "Physical Web" initiative with UriBeacons
• Uses simple serial UART commands
• Over the air programmable
• Dimensions: 23 x 26 x 5mm (0.9 x 1 x 0.2in.)
• Adafruit part no.: 2633

*Customers looking to resell on eBay or Amazon should contact Adafruit directly.

The Adafruit FONA 3G Cellular Breakout Board adds to their impressive 2G phone breakouts with 3G and GPS built in. You can expect better coverage, backwards compatibility with GSM and a fast GPS with a 1s hot start time to first fix (TTFF). On the phone side, it's quad-band and will connect to any GSM network with a 2G SIM, plus dual-band UMTS/HDSPA. It can send and receive SMS messages, and send and receive GPRS data. Plug the module into your PC USB and you can send AT commands at up to 4Mbits/sec, talk GPS NMEA, and a use it as a modem. The GPS module has 16 x acquisition channels, 1s hot start time to first fix and an accuracy of 2.4m; an active GPS antenna is highly recommended to achieve best results.

Adafruit have surrounded this fine module with a host of extras including 500mAh+ LiPo and Li-ion battery charging, a TRRS headphone jack, and breakouts for an 8Ω speaker plus electret mic. Plus 2.8 to 5V power and logic compatibility, LEDs for power, battery charge and network, uFL connectors for phone and GPS antennas and a SIM socket. You will need a few things to complete a working gadget including a 2G or 3G SIM card, a 500mAh or larger battery, a micro USB cable, external uFL antennas for GSM and GPS, and a TRRS headset.

Supplied as a fully assembled and tested 3G breakout board plus a strip of 0.1in. header pins for you to solder on as required. Adafruit provide a free tutorial and library to help get you started. Whatever you build, it won't be an Android or iPhone but it will be yours.

• Mobile phone and GPS in one module
• Accepts 2G and 3G SIMs
• On board GPS, accurate to 2.4m
• Built-in battery charger for 500mA+ LiPo and Li-ion batteries
• Dimensions: 50 x 46 x 7mm (2.0 x 1.8 x 0.3in.)
• Adafruit part no.: 2691

Daunted? This is quite an advanced product and best suited to the experienced. However, Adafruit have a simpler products, the FONA mini cellular breakout and FONA 800 Shield for Arduino, with more mature libraries, instructions and community.

*Customers looking to resell on eBay or Amazon should contact Adafruit directly.

The Adafruit ATWINC1500 WiFi Breakout for Arduino uses the excellent ATWINC1500 which is 802.11b/g/n compatible. Adafruit like this chip so much they now use it in all their designs. Communicate with your microcontroller via SPI using only 4 x signals plus 2 x power lines. With support for WPA and WPA2 security it also supports TLS1.2. You can attach to an access point or run the board as a soft access point to create an ad-hoc network. There are 3 x LEDs which you can either control yourself via the SPI or assign to the networking library to display network status such as connected, transmitting etc.

Supplied with an assembled and tested main board plus a strip of 01.in. header pins for you to solder on as required. Adafruit provide a free tutorial and library to help get you started.

This version has a uFL connector for an external antenna (antenna not included).

• Wireless 802.11b/g/n compatible
• Supports WPA, WPA2 and TLS1.2
• 3 x LEDs under user control or for network status display
• 3 to 5V logic and power compatible
• Dimensions 33 x 28 x 4mm (1.3 x 1.1 x 0.16in.)
• Adafruit part no.: 3060

*Customers looking to resell on eBay or Amazon should contact Adafruit directly.

A GPS breakout board designed around the MTK3339 chipset. This high quality GPS module can track up to 22 satellites on 66 channels and also features a built-in antenna and -165dB tracking, high sensitivity receiver. Location update rate is up to 10 per second and power usage is only 20mA during navigation.

The module has a built in data-logging capability that can log time, date, longitude, latitude, and height is logged every 15 seconds and only when there is a fix. The internal FLASH can store about 16 hours of data. When a bigger antenna is required, any 3V active GPS antenna can be connected via the uFL connector. The module will automatically detect the active antenna and switch over.

Includes one fully assembled and tested module, header for breadboarding, CR1220 coin cell holder (coin cell not included).

• Onboard ultra-low dropout 3.3V regulator
• 5V Friendly design and only 20mA current draw
• Breadboard friendly + two mounting holes
• ENABLE pin to turn off module using any microcontroller pin or switch
• Footprint for optional coin cell to keep RTC running and allow warm starts
• Fix status LED

Learning tips and tutorials can be seen here.
