This GDS-2072A 2-channel digital storage oscilloscope 70MHz from GW Instek has been designed with a host of excellent features, making it one of the most high-speed, efficient scopes on the market.

Included within this superb piece of kit is a 2GSa/s maximum real-time sampling rate and 100GSa/s fast equivalent-time sampling rate, plus an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, therefore allowing waveforms of complicated and obscure signals to be demonstrated.

Standard features include the ability to provide 2Mega point record length, and waveform search with segmented memory functions. Events of interest can also be captured and saved into the segmented memory, and then divided into 2,048 sections for observation - the irrelevant waveforms can be ignored.

Consequently, the overall efficiency of memory usage can be enhanced: under waveform search mode, after the input signal is triggered, the GDS-2072A is able to search and mark the waveform sections, which comply with user-defined search conditions and threshold levels within the whole memory. Meanwhile, with zoom window and play/pause button allows scrolling through the whole displayed waveform, rapidly navigating all the waveforms in an efficient way.

• 80,000 wfm/s of waveform update rate
• 36 automatic measurement functions for various measurement selections
• Optional function generator
• Optional 8 or 16 digital channel with logic analyzer (MSO)
• Flexible remote control connectivity (standard: USB; option: LAN/GPIB)
• Upgradable CAN/LIN bus analysis, advanced logic, datalog, DVM and H-expansion functionalities
• Manufacturer's part GDS-2072A

This GDS-2074A 4-channel digital storage oscilloscope 70MHz from GW Instek has been designed with a host of excellent features, making it one of the most high-speed, efficient scopes on the market.

Included within this superb piece of kit is a 2GSa/s maximum real-time sampling rate and 100GSa/s fast equivalent-time sampling rate, plus an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, therefore allowing waveforms of complicated and obscure signals to be demonstrated.

Standard features include the ability to provide 2Mega point record length, and waveform search with segmented memory functions. Events of interest can also be captured and saved into the segmented memory, and then divided into 2,048 sections for observation - the irrelevant waveforms can be ignored.

Consequently, the overall efficiency of memory usage can be enhanced: under waveform search mode, after the input signal is triggered, the GDS-2072A is able to search and mark the waveform sections, which comply with user-defined search conditions and threshold levels within the whole memory. Meanwhile, with zoom window and play/pause button allows scrolling through the whole displayed waveform, rapidly navigating all the waveforms in an efficient way.

• 80,000 wfm/s of waveform update rate
• 36 automatic measurement functions for various measurement selections
• Optional function generator
• Optional 8 or 16 digital channel with logic analyzer (MSO)
• Flexible remote control connectivity (standard: USB; option: LAN/GPIB)
• Upgradable CAN/LIN bus analysis, advanced logic, datalog, DVM and H-expansion functionalities
• Manufacturer's part GDS-2074A

This GDS-2102A 2-channel digital storage oscilloscope 100MHz from GW Instek has been designed with a host of excellent features, making it one of the most high-speed, efficient scopes on the market.

Included within this superb piece of kit is a 2GSa/s maximum real-time sampling rate and 100GSa/s fast equivalent-time sampling rate, plus an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, therefore allowing waveforms of complicated and obscure signals to be demonstrated.

Standard features include the ability to provide 2Mega point record length, and waveform search with segmented memory functions. Events of interest can also be captured and saved into the segmented memory, and then divided into 2,048 sections for observation - the irrelevant waveforms can be ignored.

Consequently, the overall efficiency of memory usage can be enhanced: under waveform search mode, after the input signal is triggered, the GDS-2072A is able to search and mark the waveform sections, which comply with user-defined search conditions and threshold levels within the whole memory. Meanwhile, with zoom window and play/pause button allows scrolling through the whole displayed waveform, rapidly navigating all the waveforms in an efficient way.

• 80,000 wfm/s of waveform update rate
• 36 automatic measurement functions for various measurement selections
• Optional function generator
• Optional 8 or 16 digital channel with logic analyzer (MSO)
• Flexible remote control connectivity (standard: USB; option: LAN/GPIB)
• Upgradable CAN/LIN bus analysis, advanced logic, datalog, DVM and H-expansion functionalities
• Manufacturer's part GDS-2102A

This GDS-2104A 4-channel digital storage oscilloscope 100MHz from GW Instek has been designed with a host of excellent features, making it one of the most high-speed, efficient scopes on the market.

Included within this superb piece of kit is a 2GSa/s maximum real-time sampling rate and 100GSa/s fast equivalent-time sampling rate, plus an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, therefore allowing waveforms of complicated and obscure signals to be demonstrated.

Standard features include the ability to provide 2Mega point record length, and waveform search with segmented memory functions. Events of interest can also be captured and saved into the segmented memory, and then divided into 2,048 sections for observation - the irrelevant waveforms can be ignored.

Consequently, the overall efficiency of memory usage can be enhanced: under waveform search mode, after the input signal is triggered, the GDS-2072A is able to search and mark the waveform sections, which comply with user-defined search conditions and threshold levels within the whole memory. Meanwhile, with zoom window and play/pause button allows scrolling through the whole displayed waveform, rapidly navigating all the waveforms in an efficient way.

• 80,000 wfm/s of waveform update rate
• 36 automatic measurement functions for various measurement selections
• Optional function generator
• Optional 8 or 16 digital channel with logic analyzer (MSO)
• Flexible remote control connectivity (standard: USB; option: LAN/GPIB)
• Upgradable CAN/LIN bus analysis, advanced logic, datalog, DVM and H-expansion functionalities
• Manufacturer's part GDS-2104A

This GDS-2202A 2-channel digital storage oscilloscope 200MHz from GW Instek has been designed with a host of excellent features, making it one of the most high-speed, efficient scopes on the market.

Included within this superb piece of kit is a 2GSa/s maximum real-time sampling rate and 100GSa/s fast equivalent-time sampling rate, plus an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, therefore allowing waveforms of complicated and obscure signals to be demonstrated.

Standard features include the ability to provide 2Mega point record length, and waveform search with segmented memory functions. Events of interest can also be captured and saved into the segmented memory, and then divided into 2,048 sections for observation - the irrelevant waveforms can be ignored.

Consequently, the overall efficiency of memory usage can be enhanced: under waveform search mode, after the input signal is triggered, the GDS-2072A is able to search and mark the waveform sections, which comply with user-defined search conditions and threshold levels within the whole memory. Meanwhile, with zoom window and play/pause button allows scrolling through the whole displayed waveform, rapidly navigating all the waveforms in an efficient way.

• 80,000 wfm/s of waveform update rate
• 36 automatic measurement functions for various measurement selections
• Optional function generator
• Optional 8 or 16 digital channel with logic analyzer (MSO)
• Flexible remote control connectivity (standard: USB; option: LAN/GPIB)
• Upgradable CAN/LIN bus analysis, advanced logic, datalog, DVM and H-expansion functionalities
• Manufacturer's part GDS-2202A

This GDS-2204A 4-channel digital storage oscilloscope 200MHz from GW Instek has been designed with a host of excellent features, making it one of the most high-speed, efficient scopes on the market.

Included within this superb piece of kit is a 2GSa/s maximum real-time sampling rate and 100GSa/s fast equivalent-time sampling rate, plus an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, therefore allowing waveforms of complicated and obscure signals to be demonstrated.

Standard features include the ability to provide 2Mega point record length, and waveform search with segmented memory functions. Events of interest can also be captured and saved into the segmented memory, and then divided into 2,048 sections for observation - the irrelevant waveforms can be ignored.

Consequently, the overall efficiency of memory usage can be enhanced: under waveform search mode, after the input signal is triggered, the GDS-2072A is able to search and mark the waveform sections, which comply with user-defined search conditions and threshold levels within the whole memory. Meanwhile, with zoom window and play/pause button allows scrolling through the whole displayed waveform, rapidly navigating all the waveforms in an efficient way.

• 80,000 wfm/s of waveform update rate
• 36 automatic measurement functions for various measurement selections
• Optional function generator
• Optional 8 or 16 digital channel with logic analyzer (MSO)
• Flexible remote control connectivity (standard: USB; option: LAN/GPIB)
• Upgradable CAN/LIN bus analysis, advanced logic, datalog, DVM and H-expansion functionalities
• Manufacturer's part GDS-2204A

This GDS-2302A 2-channel digital storage oscilloscope 300MHz from GW Instek has been designed with a host of excellent features, making it one of the most high-speed, efficient scopes on the market.

Included within this superb piece of kit is a 2GSa/s maximum real-time sampling rate and 100GSa/s fast equivalent-time sampling rate, plus an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, therefore allowing waveforms of complicated and obscure signals to be demonstrated.

Standard features include the ability to provide 2Mega point record length, and waveform search with segmented memory functions. Events of interest can also be captured and saved into the segmented memory, and then divided into 2,048 sections for observation - the irrelevant waveforms can be ignored.

Consequently, the overall efficiency of memory usage can be enhanced: under waveform search mode, after the input signal is triggered, the GDS-2072A is able to search and mark the waveform sections, which comply with user-defined search conditions and threshold levels within the whole memory. Meanwhile, with zoom window and play/pause button allows scrolling through the whole displayed waveform, rapidly navigating all the waveforms in an efficient way.

• 80,000 wfm/s of waveform update rate
• 36 automatic measurement functions for various measurement selections
• Optional function generator
• Optional 8 or 16 digital channel with logic analyzer (MSO)
• Flexible remote control connectivity (standard: USB; option: LAN/GPIB)
• Upgradable CAN/LIN bus analysis, advanced logic, datalog, DVM and H-expansion functionalities
• Manufacturer's part GDS-2302A

This GDS-2304A 4-channel digital storage oscilloscope 300MHz from GW Instek has been designed with a host of excellent features, making it one of the most high-speed, efficient scopes on the market.

Included within this superb piece of kit is a 2GSa/s maximum real-time sampling rate and 100GSa/s fast equivalent-time sampling rate, plus an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, therefore allowing waveforms of complicated and obscure signals to be demonstrated.

Standard features include the ability to provide 2Mega point record length, and waveform search with segmented memory functions. Events of interest can also be captured and saved into the segmented memory, and then divided into 2,048 sections for observation - the irrelevant waveforms can be ignored.

Consequently, the overall efficiency of memory usage can be enhanced: under waveform search mode, after the input signal is triggered, the GDS-2072A is able to search and mark the waveform sections, which comply with user-defined search conditions and threshold levels within the whole memory. Meanwhile, with zoom window and play/pause button allows scrolling through the whole displayed waveform, rapidly navigating all the waveforms in an efficient way.

• 80,000 wfm/s of waveform update rate
• 36 automatic measurement functions for various measurement selections
• Optional function generator
• Optional 8 or 16 digital channel with logic analyzer (MSO)
• Flexible remote control connectivity (standard: USB; option: LAN/GPIB)
• Upgradable CAN/LIN bus analysis, advanced logic, datalog, DVM and H-expansion functionalities
• Manufacturer's part GDS-2304A

The GW Instek GDS-3502 digital storage oscilloscope is a full-featured and powerful tool that allows you to tackle complex measurement issues with ease. The GW Instek GDS-3502 has a maximum bandwidth of 350MHz, and is equipped with a real-time sampling rate up to 5GSa/s and an equivalent-time sampling rate of 100GSa/s. The large 8-inch SVGA TFT LCD screen, combined with the advanced digital signal processing technology VPO, provides meticulous detail and clarity for the displayed waveforms.

The GW Instek GDS-3502 gives you confidence not to miss any part of the test signal in the product verification and debugging stages and allows you to speed up your task without hesitation.With widespread applications of embedded system using serial bus communications, resolving unexpected issues, such as propagation delay and bus contention, is often a challenge to design and testing engineers. The GW Instek GDS-3502 provides (optional) design and testing engineers with powerful tools for the communication analysis and debugging of the most popular serial interface projects including I²C, SPI and UART.

To fulfil the increasing power measurement demands, as a green energy trend, GW Instek GDS-3502 provides embedded power-measurement software (optional), which includes measurements of Power Quality, Harmonics, Ripple and Inrush Current, meeting requirements of most power measurement standards.

• 350MHz Bandwidth
• 2-Channels
• Dual sampling modes: 5GSa/s real-time sampling rate and 100GSa/s equivalent time sampling rate
• 25k points memory for each input channel
• VPO (Visual Persistence Oscilloscope) technology to display less-frequently- appeared signals
• 8 inch 800 x 600 high resolution TFT LCD display
• Unique split screen system with independent setting for each signal channel
• Three input impedance selection 50 /75 /1M
• Optional power measurement software for power supply measurement and analysis
• Optional serial BUS triggering, decoding software supporting I²2 C, SPI and UART
• Manufacturers part no. GW Instek GDS-3502

The GW Instek GDS-3504 500MHz, 4-Channel Digital Storage Oscilloscope is a new platform of 4 input channels, 500MHz bandwidth, 5GSa/s sampling rate, and VPO waveform display. The split screen feature has been designed to meet the requirements of multi-window and multi-signal tests in the research and the manufacturing fields. The optional power analysis software and the optional serial bus analysis software are available to facilitate the engineer's tasks in testing and manufacturing of the associated products.

The GW Instek GDS-3504 Oscilloscope is a high-tech platform carrying thoughtful features, brings very high customer value to both general purpose market and professional market.

The unique split screen feature of GW Instek GDS-3504 Oscilloscope allows each input channel to be operated independently with respective setting and waveform display. The time base, the vertical sensitivity, and the trigger selections can be done by each channel separately, and the waveform of each input signal can be shown on the individual part of the screen. This nearly four DSO in one feature is very useful for the applications that need to simultaneously see the details of multiple waveforms with very different characteristics. The 8 inch high resolution 800 x 600 LCD display makes the split screen a pleasant observation environment to view the details of complex signals.

• 350MHz with 4 channels
• 5GSa/s RT or 100GSa/s ET sampling rate
• Independent memory for each channel
• VPO Technology
• Large 8-inch 800 x 600 display
• Split screen function
• 3 Built-in impedances (50O/75O/1MO)
• Power analysis software (optional)
• Serial Bus analysis software for I2C, SPI and UART (optional)
• Manufacturers part no. GW Instek GDS-3504

The Owon 100MHz 2-Channel scope and analyser is a 2-channel colour unit that provides a combination of comprehensive features, speed of use and extensive analysis capabilities, functioning as an oscilloscope or as a logic analyser.With its 100MHz bandwidth this instrument is perfect for design, testing and maintenance in the laboratory or workshop. It is also equipped with many outstanding features, including a crystal clear 8.0 inch colour TFT-LCD screen with 640 x 480 resolution. This well-designed unit also provides up to 2M points record length, and comes with two passive probes that are switchable between 1:1 and 10:1 input ratio, and a logic analyzer probe and wires and clips for 16 channels. Also Included is a USB cable, power adaptor, user manual and software CD – all of which makes the Owon 2-Channel scope a standout unit representing fantastic value.

• Two-in-one perfrormance (oscilloscope and logic analyser)
• 8in LCD colour display
• Supports USB for data transmission to PC
• USB Flash Disk storage
• 20 automatic measurements
• Max.2m record length
• Slope trigger and pulse trigger added
• Size 350 x 157 x 120mm

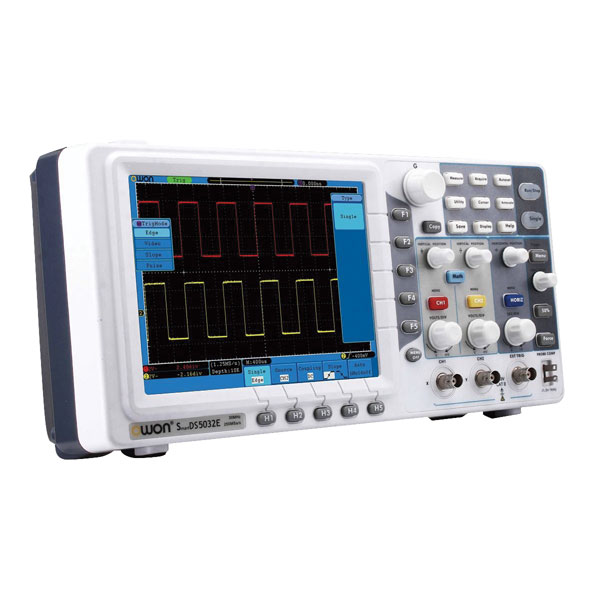

The OWON SDS5032E is a 30MHz Slim Design Oscilloscope that provides a combination of comprehensive features, speed of use and comprehensive analysis capabilities. The impressive full colour 8 inch LCD display has a high resolution 800 × 600 that makes the wave easy to read. The SDS5032E offers a 30MHz bandwidth, a sample rate of 125MSa/s in dual Channels. VGA output is included for external monitors or video projectors, making it ideal for teaching situations.

The OWON digital storage oscilloscope SDS5032E offers reliable measurement technology for a really good price.

• 8 inch LCD TFT colour display 800 x 600
• Bandwidth: 30MHz
• Sample rate: Up to 250ms/s
• Autoscale and built-in FFT
• Record length: 10K points per channel
• Store up to 15 waveforms
• 20 Automatic measurements
• USB interface, LAN
• VGA output for use of projection
• Rechargeable battery (optional)
• Light weight: 1.5kg
• Compact design
• Dimensions: 35 x 157 x 8cm
• What's in the box? Power probe, power cord, USB data cable, CD-Rom and user's manual
• Manufacturer's part: OWON SDS5032E

The Rigol DS1054Z is a High Quality 4-Channel Digital Storage Oscilloscope (DSO) with 50MHz bandwidth.

This high-performance and economical digital oscilloscope has a real-time sample rate of up to 1GSa/s, and is ideal for the designing, debugging and educational requirements of the mainstream digital oscilloscope market. The oscilloscope is compact, easy-to-use and packed with useful features and functions for all measuring tasks. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals.

The particularly large TFT colour display is very easy to read with the largest possible area always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

What's in the Box?Rigol DS1054Z 4x passive probes (150MHz)USB cableUK and European mains leads Quick start guideCD (user guide and application software)

• 4x Analogue channels
• 50MHz bandwidth
• Maximum sample rate 1GSa/s
• Vertical scale 1mV/div to 10V/div
• Innovative 'UltraVision' technology
• Up to 30,000wfms/s waveform capture rate
• 7 inch WVGA (800 x 480) TFT LCD display, 64 intensity grading levels
• Up to 15 off trigger functions, including various protocol triggers
• Auto measurement of 33 waveform parameters, with statistics
• Built-in FFT with a choice of window functions
• Pass/fail test function
• Built-in help facility
• Compact size, light weight, easy to use
• Manufacturer's part: Rigol DS1054Z

The Rigol DS1074Z Plus is a High Quality 4-Channel Digital Storage Oscilloscope (DSO) with 70MHz bandwidth, and a real-time sample rate of up to 1GSa/s.

This high-performance and economical digital oscilloscope is ideal for the designing, debugging and educational requirements of the mainstream digital oscilloscope market. The oscilloscope is compact, easy-to-use and packed with useful features and functions for all measuring tasks. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals.

The particularly large TFT colour display is very easy to read with the largest possible area always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

What's in the Box?Rigol DS1074Z Plus 4x passive probes (150MHz)USB cableUK and European mains leadsQuick start guideCD (user guide and application software)

• MSO Ready - Can be upgraded to 16 digital channels (order code 64-7431)
• 70MHz bandwidth, 4 channels
• Maximum sample rate 1GSa/s
• Vertical scale 1mV/div to 10V/div
• Innovative 'UltraVision' technology
• Up to 30,000wfms/s waveform capture rate
• 7 inch WVGA (800x480) TFT LCD display, 64 intensity grading levels
• Up to 15 off trigger functions, including various protocol triggers
• Auto measurement of 33 waveform parameters, with statistics
• Built-in FFT with a choice of window functions
• Pass/fail test function
• Built-in help facility
• Compact size, light weight, easy to use
• Manufacturer's part: Rigol DS1074Z Plus

The Rigol DS1104Z-S Plus is a High Quality 4-Channel Digital Storage Oscilloscope (DSO) with 100MHz bandwidth, and supplied with a built-in 2 channel function/ arbitrary waveform generator.

This high-performance and economical digital oscilloscope has a real-time sample rate of up to 1GSa/s, and is ideal for the designing, debugging and educational requirements of the mainstream digital oscilloscope market. The oscilloscope is compact, easy-to-use and packed with useful features and functions for all measuring tasks. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals.

The particularly large TFT colour display is very easy to read with the largest possible area always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

What's in the Box?Rigol DS1104Z-S Plus 4x passive probes (150MHz)USB cableUK and European mains leadsQuick start guideCD (user guide and application software)

• MSO Ready - Can be upgraded to 16 digital channels (order code 64-7431)
• 100MHz bandwidth, 4 channels
• Maximum sample rate 1GSa/s
• Vertical scale 1mV/div to 10V/div
• Innovative 'UltraVision' technology
• Up to 30,000wfms/s waveform capture rate
• 7 inch WVGA (800x480) TFT LCD display, 64 intensity grading levels
• Up to 15 off trigger functions, including various protocol triggers
• Auto measurement of 33 waveform parameters, with statistics
• Built-in FFT with a choice of window functions
• Pass/fail test function
• Built-in help facility
• Compact size, light weight, easy to use
• Supplied with a built-in 2 channel function/ arbitrary waveform generator
• Manufacturer's part: Rigol DS1104Z-S Plus

The 3 Series MDO optional integrated Arbitrary Function Generator (3-AFG) is perfect for simulating sensor signals within a design or adding noise to signals to perform margin testing. The integrated function generator provides output of predefined waveforms up to 50 MHz for sine, square, pulse, ramp/triangle, DC, noise, sin(x)/x (Sinc), Gaussian, Lorentz, exponential rise/fall, Haversine and cardiac.

The arbitrary waveform generator provides 128 k points of record for storing waveforms from the analogue input, a saved internal file location, a USB mass storage device, or from an external PC. Transfer waveform files to your 3 Series MDO edit memory via USB or LAN or using a USB mass storage device to be output from the AFG in the oscilloscope.

Refer to the data sheet for further information on the Arbitrary Function Generator (3-AFG) installed option.

• 13 predefined waveform types
• 50 MHz waveform generation
• 128 k arbitrary generator record length
• 250 MS/s arbitrary generator sample rate

The Tektronix 3-BND Installed option Application Bundle for MDO3 series oscilloscopes includes the following upgrade options:

• SUP3 SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429
• SUP3 SRAUDIO - Audio serial triggering and analysis (I²S, LJ, RJ, TDM)
• SUP3 SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay)
• SUP3 SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
• SUP3 SREMBD - Embedded serial triggering and analysis (I²C, SPI)
• SUP3 SRUSB2 - USB 2.0 serial bus triggering and analysis (LS, FS, HS)
• SUP3 PWR - Power measurement and analysis

Please refer to the datasheet for further details.

The logic analyser (option 3-MSO) provides 16 Digital Channels which are tightly integrated into the oscilloscope's user interface. This simplifies operation and makes it possible to solve mixed-signal issues easily.Features include: Colour-coded digital traces that allow easy visibility of channel activity at a glance. Multiple transition detection giving an indication on screen that more information is available.Grouping of digital waveforms and adding waveform labels is easy using the touchscreen. Refer to the data sheet for further information on the 16 Digital Channels installed option.

• 16 digital channels
• 10 M record length on all channels
• 121.2 ps timing resolution

The Tektronix MDO3014 Mixed Domain Oscilloscope is the Ultimate 6-in-1 Integrated Oscilloscope that includes an integrated spectrum analyser, arbitrary function generator, logic analyser, protocol analyser, and digital voltmeter/counter. The Tektronix MDO3014 is completely customisable and fully upgradable.

At the core of the Tektronix MDO3014 is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug, from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analysing their characteristics and your device's behaviour.

What's in the Box?Tektronix MDO3014 OscilloscopeN-to-BNC adaptorDocumentation CDTPP0250: 250 MHz, 10x passive voltage probe. One per analogue channelInstallation and Safety Instructions, printed manual (translated in English, Japanese, and Simplified Chinese)Accessory bagPower cordOpenChoice Desktop SoftwareCalibration certificate documenting traceability to National Metrology Institute(s) and ISO9001 quality system registration

• 4 analogue channel
• 100MHz bandwidth
• Up to 2.5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9 pF capacitive loading
• FastAcq - high-speed waveform capture rate finds elusive signal anomalies quickly
• Wave Inspector - Controls provide easy navigation and automated search of waveform data
• Add functionality, increase bandwidth or spectrum analyzer frequency range over time as your needs change or budget allows
• 33 automated measurements and waveform histograms for simplified waveform analysis
• TekVPI probe interface directly supports active, differential, and current probes for automatic scaling and units
• Manufacturer's part: Tektronix MDO3014 Mixed Domain Oscilloscope

The Tektronix MDO3024 is a 4-Channel Mixed Domain Oscilloscope (MDO) that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter making it the Ultimate 6-in-1 Integrated Oscilloscope.

The MDO3024 is completely customisable and fully upgradeable. Add the instruments and performance you need now or later.

At the core of the 200MHz MDO3024 is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug; from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analyzing their characteristics and your device's behaviour.

The MDO3024 includes three automated RF measurements: Channel Power, Adjacent Channel Power Ratio, and Occupied Bandwidth. When one of these RF measurements is activated, the oscilloscope automatically turns on the Average spectrum trace and sets the detection method to Average for optimal measurement results.

The MDO3024 is the first oscilloscope in its class to include an integrated spectrum analyzer, and includes a spectrum analyzer with a frequency range of 9 kHz up to its analogue bandwidth of 200MHz.

• 200MHz, 4 analogue channels
• Upgradable bandwidth to protect your investment
• 2.5GS/s sample rate
• 10M record length on all channels
• 9kHz to 200MHz Spectrum Analyser
• 5-digit DVM option enabled with post-purchase registration with Tektronix
• FastAcq high-speed waveform capture
• Wave Inspector Controls
• 33 automated measurements and waveform histograms
• 9 inch WVGA widescreen colour display
• Optional functionality: 50 MHz AFG, 121.2ps timing resolution Logic Analyzer, Protocol Analyser
• Three-year warranty
• Manufacturer's part: Tektronix MDO3024 Mixed Domain Oscilloscope

The Tektronix MDO3034 is a 4-Channel Mixed Domain Oscilloscope that will provide you with affordable performance in a compact design.

This is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3034 is completely customisable and fully upgradeable.

At the core of the MDO3034 is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug, from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analyzing their characteristics and your device's behaviour.

Digital phosphor technology provides you with fast insight into the real operation of your device. Its fast waveform capture rate is greater than 235,000wfm/s with FastAcq and gives you a high probability of quickly seeing the infrequent problems common in digital systems: runt pulses, glitches, timing issues, and more.

The MDO3034 features a 229mm wide-screen, high resolution (800 x 480 WVGA) display. This oscilloscope also contains a number of ports which can be used to connect the instrument to a network, directly to a PC, or other test equipment: Front and rear USB host ports, Rear USB device port, 10/100 Ethernet port, and a rear-accessed video out port.

• Upgradable bandwidth to protect your investment
• 2.5GS/s sample rate
• 10M record length on all channels
• 9kHz to 350MHz Spectrum Analyser
• FastAcq™ high-speed waveform capture
• Wave Inspector® Controls
• 33 automated measurements and waveform histograms
• 229mm wide-screen, high resolution WVGA display
• Supplied with 4 Channels
• Supplied with a bandwidth of 350MHz
• Manufacturer's part: Tektronix MDO3034

The Tektronix MDO3054 is a 4-Channel Mixed Domain Oscilloscope that will provide you with affordable performance in a compact design.

This is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3054 is completely customisable and fully upgradeable.

At the core of the MDO3054 is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug, from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analyzing their characteristics and your device's behaviour.

Digital phosphor technology provides you with fast insight into the real operation of your device. Its fast waveform capture rate is greater than 235,000wfm/s with FastAcq and gives you a high probability of quickly seeing the infrequent problems common in digital systems: runt pulses, glitches, timing issues, and more.

The MDO3054 features a 229mm wide-screen, high resolution (800 x 480 WVGA) display. This oscilloscope also contains a number of ports which can be used to connect the instrument to a network, directly to a PC, or other test equipment: Front and rear USB host ports, Rear USB device port, 10/100 Ethernet port, and a rear-accessed video out port.

• Upgradable bandwidth to protect your investment
• 2.5GS/s sample rate
• 10M record length on all channels
• 9kHz to 500MHz Spectrum Analyser
• FastAcq™ high-speed waveform capture
• Wave Inspector® Controls
• 33 automated measurements and waveform histograms
• 229mm wide-screen, high resolution WVGA display
• Supplied with 4 Channels
• Supplied with a bandwidth of 500MHz
• Manufacturer's part: Tektronix MDO3054

The Tektronix MDO3104 is a 4-Channel Mixed Domain Oscilloscope that will provide you with affordable performance in a compact design.

This is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3104 is completely customisable and fully upgradeable.

At the core of the MDO3104 is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug, from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analyzing their characteristics and your device's behaviour.

Digital phosphor technology provides you with fast insight into the real operation of your device. Its fast waveform capture rate is greater than 280,000wfm/s with FastAcq and gives you a high probability of quickly seeing the infrequent problems common in digital systems: runt pulses, glitches, timing issues, and more.

The MDO3104 features a 229mm wide-screen, high resolution (800 x 480 WVGA) display. This oscilloscope also contains a number of ports which can be used to connect the instrument to a network, directly to a PC, or other test equipment: Front and rear USB host ports, Rear USB device port, 10/100 Ethernet port, and a rear-accessed video out port.

• Upgradable bandwidth to protect your investment
• 2.5GS/s sample rate
• 10M record length on all channels
• 9kHz to 1GHz Spectrum Analyser
• FastAcq™ high-speed waveform capture
• Wave Inspector® Controls
• 33 automated measurements and waveform histograms
• 229mm wide-screen, high resolution WVGA display
• Supplied with 4 Channels
• Supplied with a bandwidth of 1GHz
• Manufacturer's part: Tektronix MDO3104

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO32, 2-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO32 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 2 analogue channels
• 1 auxiliary trigger input
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 100MHz, upgradable up to 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO32 3-BW-100

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO32, 2-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO32 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow

• Mixed Domain Oscilloscope
• 2 analogue channels
• 1 auxiliary trigger input
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO32 3-BW-1000

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO32, 2-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO32 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 2 analogue channels
• 1 auxiliary trigger input
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 200MHz, upgradable up to 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO32 3-BW-200

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO32, 2-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO32 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 2 analogue channels
• 1 auxiliary trigger input
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 350MHz, upgradable up to 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO32 3-BW-350

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO32, 2-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO32 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 2 analogue channels
• 1 auxiliary trigger input
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 500MHz, upgradable up to 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO32 3-BW-500

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO34, 4-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO34 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 4 analogue channels
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 100MHz, upgradable up to 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO34 3-BW-100

The Tektronix MD034 3-BW-1000 is an MD034 3-BW-100 mixed domain oscilloscope pre-installed with an upgrade that boosts the analogue bandwidth to 1GHz.

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO34, 4-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO34 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 4 analogue channels
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO34 3-BW-1000

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO34, 4-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO34 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 4 analogue channels
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 200MHz, upgradable up to 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO34 3-BW-200

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO34, 4-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO34 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 4 analogue channels
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 350MHz, upgradable up to 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO34 3-BW-350

This MDO34 3-BW-500 Mixed Domain Oscilloscope comes complete with pre-installed 3-MSO 16 Digital Channels, 3-BND Application Bundle and 3-AFG Arbitrary Function Generator.

Get a fully loaded 3 Series MDO34 3-BW-500 at a great price, allowing you to benefit from :

• Serial decode & trigger buses such as I2C, SPI, CAN, LIN & USB plus automated power analysis
• 16 digital channels; free up your analogue channels and see more signals at once
• Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you're testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyser built right in with superior RF test performance and guaranteed RF specifications.Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO34 Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight, portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO34 can be fully upgraded enabling additional functionality over time as needs change or budgets allow.

Includes the following:

65-4094 - Tektronix MDO34 3-BW-500 Mixed Domain Oscilloscope 4x 500MHz Channels85-7389 - Tektronix 3-MSO Installed Option; 16 Digital Channels 85-7390 - Tektronix 3-BND Installed Option; Application Bundle for 3 Series MDO85-7391 - Tektronix 3-AFG Installed Option; Arbitrary Function Generator

• Mixed Domain Oscilloscope (MDO)
• 4 Analogue channels
• 16 Digital channels (pre-installed option)
• 1 Spectrum Analyzer input
• 1 Logic Analyzer input
• Bandwidth: 500MHz, upgradable up to 1GHz
• Sample Rate (Analog channels): up to 5GS/s
• Sample Rate (Digital channels): up to 8.25GS/s (121ps resolution)
• 10Mpoints record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• TPP series Probes with 3.9pF capacitive loading and 250MHz, 500MHz or 1GHz bandwidth (dependent on instrument bandwidth)
• P6316 16 channel logic Probe and accessories
• Spectrum Analyzer: 1GHz standard, upgradable to 3GHz (optional)
• Arbitrary Function Generator (pre-installed option)
• Serial Bus Decode, Triggering and Search (pre-installed option)
• Automated Power Measurement and Analysis (pre-installed option)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO34 3-BW-500 3-BND 3-MSO 3-AFG

Having the right instruments to hand when and where you need them is critical to efficient testing and fault-finding. The Tektronix 3 Series MDO34, 4-channel Mixed Domain Oscilloscope combines analogue waveforms, digital logic and spectrum analysis in a lightweight 5.3kg (11.7 lbs), portable package, making it the perfect choice where space is limited and high flexibility is desired.

The combination of a small instrument and a high level of integration, aids its usage for sophisticated lab experiments as well as in the teaching of various electronics principles. The MDO34 can be fully upgraded enabling the addition of functionality over time as needs change or budgets allow.

• Mixed Domain Oscilloscope
• 4 analogue channels
• 1 spectrum analyzer input
• 1 logic analyzer input
• Bandwidth: 500MHz, upgradable up to 1GHz
• Up to 5GS/s sample rate
• 10M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9pF capacitive loading and 250MHz or 500MHz analog bandwidth
• Spectrum Analyzer (optional)
• Arbitrary Function Generator (optional)
• Digital Channels (optional)
• Serial Bus Decode, Triggering and Search (optional)
• Digital Voltmeter / Frequency Counter (Free with product registration): 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements
• Please refer to the datasheet for full details of the options available
• 3-year manufacturer's warranty
• Tektronix type MDO34 3-BW-500

The MSO2012B offers up to 100MHz bandwidth and 1GS/s sample rate. This oscilloscope from Tektronix delivers advanced debug features at an entry-level price. Quickly find and diagnose problems in complex designs with up to 20 channels for analyzing analogue and digital signals.

With a deep record length of 1M points standard on all channels, the MSO2012B lets you capture long windows of signal activity while maintaining fine timing resolution.

• Accuracy: ±3%
• Bandwidth: 100MHz
• Channel type: 2
• Dimensions: 134(L) x 377(W) x 180(H)mm
• Displays: TFT 112 320, TEE colours
• Input coupling: AC, DC, GND
• Input impedance: 1MΩ; 11.5pF
• Input voltage range: 300 V (DC + peak AC)
• Interfaces: 1x USB 2.0
• Memory depth: 1Mpts
• Power supply: 100 - 240V AC
• Resolution: 8-Bit
• Sampling rate: 1GS/s
• Screen size: 17.8cm (480 x 234 Pixel)
• Timebase range: 4ns/DIV - 100s/DIV
• Triggering: Edge, pulse, runt, logic, video, rise/fall time
• Type (manufacturer type): MSO2012B
• Vertical deflection: 2mV/DIV – 5 V/DIV

This Tektronix MSO22 2-BW-100 Oscilloscope features 2 analogue channels, 100 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

This Tektronix MSO22 2-BW-200 Oscilloscope features 2 analogue channels, 200 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

This Tektronix MSO22 2-BW-350 Oscilloscope features 2 analogue channels, 350 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

This Tektronix MSO22 2-BW-500 Oscilloscope features 2 analogue channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

This Tektronix MSO22 2-BW-70 Oscilloscope features 2 analogue channels, 70 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

The Tektronix P6139B is a 500MHz Oscilloscope Probe. This high bandwidth, high impedance probe features a small probe head and sharp tip that makes it easier to probe dense circuitry.

Applications: Low Power Devices, Service, Manufacturing Engineering, Test Research and Development.

• 500MHz Probe Bandwidth
• Large Input Impedance at the Probe Tip (10MΩ, 8pF)
• 10x Attenuation Factor
• 300V CAT II Input voltage
• Outstanding electrical performance
• Rugged and easy to use
• Compact probe head for probing small geometry circuit elements
• Small probe body for enhanced visibility to the device-under-test
• Cable length 1.3m
• Replaceable probe tip cartridges
• Large accessory set for versatile connectivity
• TekProbe interface for direct BNC connection for oscilloscopes with 1MΩ inputs
• Integrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope display
• Manufacturer's part: Tektronix MSO22 2-P6139B

This Tektronix MSO24 2-BW-100 Oscilloscope features 4 analogue channels, 100 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

This Tektronix MSO24 2-BW-200 Oscilloscope features 4 analogue channels, 200 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

This Tektronix MSO24 2-BW-350 Oscilloscope features 4 analogue channels, 350 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

This Tektronix MSO24 2-BW-70 Oscilloscope features 4 analogue channels, 70 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

This Tektronix MSO24 2-BW-70 Oscilloscope features 4 analogue channels, 70 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.
• One-year software maintenance that provides access to new firmware releases with updates.

The Tektronix P6139B is a 500MHz Oscilloscope Probe. This high bandwidth, high impedance probe features a small probe head and sharp tip that makes it easier to probe dense circuitry.

Applications: Low Power Devices, Service, Manufacturing Engineering, Test Research and Development.

• 500MHz Probe Bandwidth
• Large Input Impedance at the Probe Tip (10MΩ, 8pF)
• 10x Attenuation Factor
• 300V CAT II Input voltage
• Outstanding electrical performance
• Rugged and easy to use
• Compact probe head for probing small geometry circuit elements
• Small probe body for enhanced visibility to the device-under-test
• Cable length 1.3m
• Replaceable probe tip cartridges
• Large accessory set for versatile connectivity
• TekProbe interface for direct BNC connection for oscilloscopes with 1MΩ inputs
• Integrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope display
• Manufacturer's part: Tektronix MSO24 2-P6139B

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect.

With the same made-for-touch user interface technology as the award-winning 5 Series and the largest and highest resolution display in its class, the 4 Series MSO sets a new expectation of how a scope should work.

The 4 Series MSO offers better visibility into complex systems by offering four and six channel models with a 13.3-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.

Most engineers can recall situations in which they were debugging a particularly difficult problem and wanted greater system visibility and context, but the scope they were using was limited to two or four analog channels. Using a second scope involves significant effort to align trigger points, difficulty in determining timing relationships across the two displays, and documentation challenges.

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect.

With the same made-for-touch user interface technology as the award-winning 5 Series and the largest and highest resolution display in its class, the 4 Series MSO sets a new expectation of how a scope should work.

The 4 Series MSO offers better visibility into complex systems by offering four and six channel models with a 13.3-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.

Most engineers can recall situations in which they were debugging a particularly difficult problem and wanted greater system visibility and context, but the scope they were using was limited to two or four analog channels. Using a second scope involves significant effort to align trigger points, difficulty in determining timing relationships across the two displays, and documentation challenges.

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect.

With the same made-for-touch user interface technology as the award-winning 5 Series and the largest and highest resolution display in its class, the 4 Series MSO sets a new expectation of how a scope should work.

The 4 Series MSO offers better visibility into complex systems by offering four and six channel models with a 13.3-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.

Most engineers can recall situations in which they were debugging a particularly difficult problem and wanted greater system visibility and context, but the scope they were using was limited to two or four analog channels. Using a second scope involves significant effort to align trigger points, difficulty in determining timing relationships across the two displays, and documentation challenges.

• Number of Channels: 4 Analogue, 32 Digital
• Bandwidth: 200MHz
• Digital/Analogue: Digital
• Oscilloscope Type: Bench
• Oscilloscope Form: Mixed Signal
• Series: 4 Series MSO
• Power Source: Mains
• Interface: CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
• Display Type: TFT
• Maximum Vertical Sensitivity: 10V/div
• Minimum Time Base: 200ps/div
• Screen Size: 13.3in
• Sample Rate Random: 6.25 Gsps
• Weight: 7.6kg
• Input Impedance: 1 MΩ
• Record Length: 31.25M points/ch
• Maximum Time Base: 1000s/div
• Dimensions: 450 x 155 x 249mm
• Vertical Resolution: 12 bit
• Rise Time: 5.5ns
