This GW Instek GSP-730 spectrum analyzer bandwidth 150kHz ~ 3GHz is a high-quality piece of equipment mainly developed to fulfill the demands of RF communication educations.

Budget constraint and insufficient teaching tools are normally the two hurdles for schools to provide high-quality courses for RF communication experiments. A spectrum analyzer such as the GSP-730, featuring full functions should, along with the GRF-1300 training kit (54-6506), provide an economic turn-key solution for 3GHz RF communication experiment courses.

By connectiong this GSP-730 analyzer, the GRF-1300 trainer and a PC, a tangible system is integrated for performing ongoing experiments while t a lecture can be given. Using a PC, the teacher can present teaching material with PowerPoint slide and simultaneously control the GSP-730 and to perform experiments and get spectrum displays and parameter readings on the PC screen. The GSP-730 and can easily transfer current teaching materials such as the PowerPoint slides, textbook and remote control software, into electronic-teaching system.

The combination of the GSP-730 and GRF-1300 forms a fundamental training system for RF communication and telecommunication classes in universities, colleges, vocational schools, and military training centers, as well as private companies.

• Frequency range : 150kHz ~ 3GHz
• Autoset function
• Noise floor: ≦-100dBm
• RBW range : 30kHz, 100kHz, 300kHz, 1MHz
• ACPR/CHPW/OCBW measurement
• 3 traces in different colours
• Split window function
• Limit line function
• Remote control software
• Presentation material for training courses
• Support interface : USB device/host, RS-232C
• 5.6" TFT LCD with VGA output
• Manufacturer's part GSP-730

Pack includes: quick start manual, user manual CD and power cord.

This 1.5GHz spectrum analyser from Rigol has a unique widescreen display, friendly interface and easy-to-use operations. Included are the following features:

Distinguish the two nearby signals clearly with the 100Hz RBWCompare spectrums when changing the RBW settings with different colour traceZero span to demodulate the AM signalRead out the spectrum peak values with the peak table functionMeasure lower than -130dBm signal with the standard preamplifierVSWR measurementEMI measurement (EMI filter and quasi-peak and pass/fail)The GUI to control the RF demo kit (transmitter) directly

• All-digital IF technology
• 9kHz-1.5GHz frequency range
• Up to -135dBm displayed average noise level (DANL)
• -80dBc/Hz @ 10kHz oset phase noise
• Total amplitude uncertainty <1.5dB
• 100Hz minimum resolution bandwidth (RBW)
• 1.5GHz tracking generator (DSA815-TG)
• Advanced measurement functions (option)
• EMI filter and quasi-peak detector kit (option)
• VSWR measurement kit (option)
• Complete connectivity: LAN, USB host, USB device, GPIB (option)
• 8in WVGA (800 x 480) display
• Compact size, lightweight design
• Manufacturer's part DSA815-TG

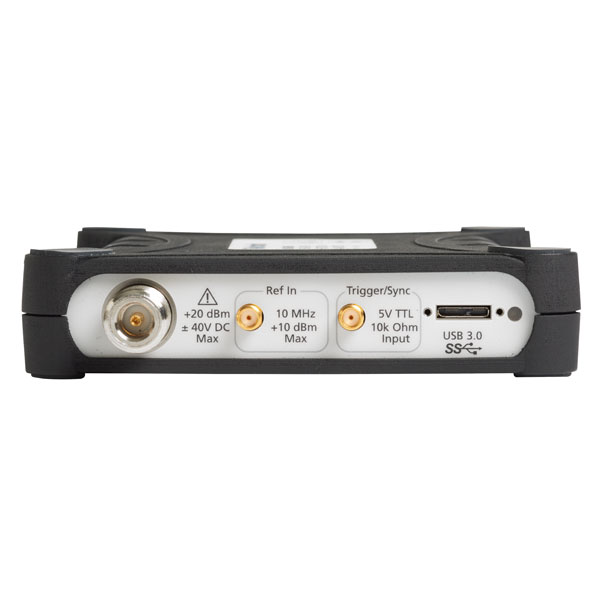

The Tektronix RSA306B uses your PC and Tektronix SignalVu-PC™ RF Signal Analysis Software to provide real-time spectrum analysis, streaming capture and deep signal analysis capabilities for signals from 9kHz to 6.2GHz. It is a low-cost, highly portable package that is ideal for field, factory or academic use.

The RSA306B offers full-featured spectrum analysis and deep signal analysis at a price unmatched by any previous offering. Using the latest in commercial interfaces and available computing power, the RSA306B separates signal acquisition from measurement, dramatically lowering the cost of instrument hardware. Data analysis, storage and replay is performed on your personal computer, tablet or laptop. Managing the PC separately from the acquisition hardware makes computer upgrades easy and minimizes IT management issues.

• Key performance specifications
• 9kHz to 6.2GHz frequency range covers a broad range of analysis needs
• +20dBm to -160dBm measurement range
• Mil-Std 28800 Class 2 environmental, shock and vibration specifications for use in harsh conditions
• Fast sweeps (2 per second) over entire 6.2GHz span for quick detection of unknown signals
• Acquisition bandwidth of 40MHz enables wide-band vector analysis of modern standards
• Minimum signal duration as short as 27μs captured with 100% probability of intercept
• Key features
• Full-featured spectrum analysis capability with included Tektronix SignalVu-PC™ software
• 17 spectrum and signal analysis measurement displays enable dozens of measurement types
• Options for mapping, modulation analysis, WLAN, LTE, and Bluetooth standards support, pulse measurements, playback of recorded files, signal survey, and frequency/phase settling
• EMC/EMI pre-compliance and troubleshooting - CISPR detectors, predefined standards, limit lines, easy accessory setup, ambient capture, failure analysis, and report generation
• DataVu-PC software enables multi-unit recording in variable bandwidths
• Real time Spectrum/Spectrogram display to minimize time spent on transient and interference hunting
• Application programming interface (API) included for Microsoft Windows environments
• MATLAB instrument driver for use with Instrument Control Toolbox
• Streaming capture records long-term events
• Tektronix 3-year warranty
