The Keithley 2450 is a Single Output Variable Bench DC Power Supply/ SourceMeter SMU Instrument that truly brings Ohm's law (current, voltage, and resistance) testing right to your fingertips.
The innovative graphical user interface (GUI) and advanced, capacitive touchscreen technology allows intuitive usage, and helps to minimise the learning curve to enable engineers and scientists to learn faster, work smarter, and invent easier.
The 2450 is the SMU for everyone: a versatile instrument, particularly well-suited for characterising modern scaled semiconductors, nano-scale devices and materials, organic semiconductors, printed electronics, and other small-geometry and low-power devices.
Capabilities of I-V systems, curve tracers, and semiconductor analyzers at a fraction of their cost
Five-inch, high resolution capacitive touchscreen graphical user interface (GUI)
0.012% basic measure accuracy with 6½-digit resolution
Enhanced sensitivity with new 20mV and 10nA source/measure ranges
Source and sink (4-quadrant) operation
Four Quickset modes for fast setup and measurements
Built-in, context-sensitive front panel help
Front panel input banana jacks; rear panel input triaxial connections
Model 2450 SCPI and TSP® scripting programming modes
Model 2400 SCPI-compatible programming mode
Front panel USB memory port for data/programming/configuration I/O
The Keithley 2470 High Voltage SourceMeter® Source Measure Unit (SMU) Instrument brings advanced Touch, Test, Invent® technology right to your fingertips.
It combines an innovative graphical user interface (GUI) with capacitive touchscreen technology to make testing intuitive and minimise the learning curve to help engineers and scientists learn faster, work smarter, and invent easier.
With its 1100V and 10fA capability, the 2470 is optimised for characterising and testing high voltage, low leakage devices, materials, and modules, such as silicon carbide (SiC), gallium nitride (GaN), power MOSFETs, transient suppression devices, circuit protection devices, power modules, batteries, and much more.
These new capabilities, combined with Keithley's decades of expertise in developing high precision, high-accuracy SMU instruments, make the 2470 a "go-to instrument" for high-voltage source and low-current measurement applications in the lab and in the test rack.
Wide coverage up to 1100V / 1A DC 20W max.
10fA measure resolution
0.012% basic measure accuracy with 6½-digit resolution
Five-inch, high resolution capacitive touch screen GUI
The Keithley 2600B-PM-1 200V Protection Module with 1A Clamp is a stand-alone module that protects certain lower-voltage source-measure units (SMUs) that are part of a testing configuration from damage by voltage sources that are greater than 220V.
The maximum DC current is 100mA, and the clamp prevents <100µs transient current spikes up to 1A.
The protection module is designed for use with the following lower-voltage SMUs:
Model 2635B Single-Channel System SourceMeter Instrument - 63-0490
Model 2636B Dual-Channel System SourceMeter Instrument - 63-0491

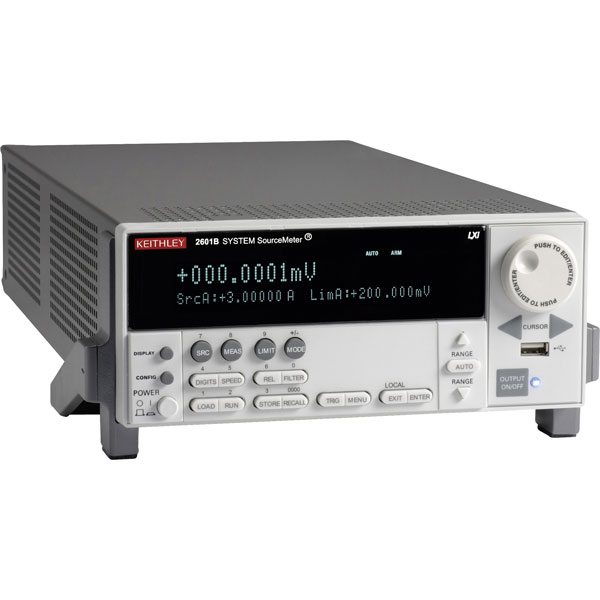

The Keithley 2601B is a Single Output Variable Bench DC Power Supply/ SourceMeter SMU Instrument from the 2600B Series. This single channel SMU instrument has a tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to automated production test.
The 2601B has a 6½-digit resolution and USB 2.0 connectivity and is equipped with Keithley's high speed TSP® technology (over 190% faster than traditional PC-to-instrument communication techniques,) which dramatically improves the system-level speed to lower the cost of test. The TSP-Link interface enables multi-channel parallel test and expands the test system without the cost of a mainframe.
Single channel model with up to 40W power output
4 quadrant source/measure with 6½ digit resolution
Current Max/Min: 3A DC, 10A pulse/100fA
Voltage Max/Min: 40V/ 100nV
Compatibility with the Keithley IVy mobile app
Built-in web browser based software for I-V characterization
TSP® (Test Script Processing) technology embeds complete test programs inside the instruments
TSP-Link® expansion technology for multi-channel parallel test
Keithley's 2600B Series Source Measurement Units (SMU) are the industry standard current-voltage source and measurement solution for highly automated production test applications.
Both dual and single-channel models tightly integrate a precision power supply, true current source, digital multimeter (DMM), and an electronic load with pulse generating capabilities.
Keithley 2602B Dual-channel System SourceMeter SMU (3 A DC, 10 A Pulse) Product Features:
4-quadrant voltage/current source and measure with 6 digit resolution (2-line VFD display).
Dual channel.
Built-in web browser based software enables remote control through any browser, on any computer, from anywhere in the world.
Compatibility with the Keithley IVy mobile app enables true plug & play I/V characterization and test through any Android device.
TSP (Test Script Processing) technology embeds complete test programs for best-in-class system-level throughput.
USB 2.0, LXI-C, GPIB, RS-232 and digital I/O interfaces.
Software emulation for Keithley's Model 2400 SourceMeter SMU product.
Software drivers and development/debug tools supplied.
The Keithley 2611B is a Single Output Variable Bench DC Power Supply/ SourceMeter SMU Instrument from the 2600B Series. This single channel SMU instrument has a tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to automated production test.
The 2611B has a 6½-digit resolution and USB 2.0 connectivity and is equipped with Keithley's high speed TSP® technology (over 200% faster than traditional PC-to-instrument communication techniques,) which dramatically improves the system-level speed to lower the cost of test. The TSP-Link interface enables multi-channel parallel test and expands the test system without the cost of a mainframe. The wide range of 1.5A DC, 10A pulse, 200V output makes power supply suitable for testing a wide range of higher voltage and higher current devices materials, components, and sub-assemblies.
Single channel model with 30W power output
4 quadrant source/measure with 6½ digit resolution
Current Max/Min: 1.5A DC, 10A pulse/ 100fA
Voltage Max/Min: 200V/ 100nV
Built-in "Plug & Play" Java-Based I-V characterization and test software
TSP (Test Script Processing) technology embeds complete test programs inside the instruments
TSP-Link expansion technology for multi-channel parallel test
The Keithley 2635B is a Single Output Variable Bench DC Power Supply/ SourceMeter SMU Instrument from the 2600B Series. This single channel SMU instrument has a tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to automated production test.
The 2635B has a 6½ digit resolution and USB 2.0 connectivity and is equipped with Keithley's high speed TSP® technology (over 200% faster than traditional PC-to-instrument communication techniques,) which dramatically improves the system-level speed to lower the cost of test. The TSP-Link interface enables multi-channel parallel test and expands the test system without the cost of a mainframe.
Single-channel model with 30W power output
4 quadrant source/measure with 6½ digit resolution
Large, easy-to-read, dual line display
Voltage Max/Min: 200V/100nV
Built-in Plug & Play Java-Based I-V characterization and test software
TSP (Test Script Processing) technology embeds complete test programs inside the instruments
TSP-Link expansion technology for multi-channel parallel test
The Keithley 2636B is a Dual Output Variable Bench DC Power Supply/ SourceMeter SMU Instrument from the 2600B Series. This single channel SMU instrument has a tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to automated production test.
The 2636B has a 6½ digit resolution and USB 2.0 connectivity and is equipped with Keithley's high speed TSP® technology (over 200% faster than traditional PC-to-instrument communication techniques,) which dramatically improves the system-level speed to lower the cost of test. The TSP-Link interface enables multi-channel parallel test and expands the test system without the cost of a mainframe.
Dual channel model with 60W power output
4 quadrant source/measure with 6½ digit resolution
Large, easy-to-read, dual line display
Voltage Max/Min: 200V/100nV
Built-in Plug & Play Java-Based I-V characterization and test software
TSP (Test Script Processing) technology embeds complete test programs inside the instruments
TSP-Link expansion technology for multi-channel parallel test
The Keithley 2651A is a Single Output Variable Bench DC Power Supply/ SourceMeter SMU Instrument that has been specifically designed to characterise and test high power electronics. This power supply can help you improve productivity in applications across the R&D, reliability, and production spectrums, including high brightness LEDs, power semiconductors, DC-DC converters, batteries, solar cells, and other high power materials, components, modules, and subassemblies.
The 2651A offers a highly flexible, four-quadrant voltage and current source/load coupled with precision voltage and current meters.
Easily connect two units (in series or parallel) to create solutions up to 100A or 80V
Combines a precision power supply, current source, Digital Multimeter, arbitrary waveform generator, V or I pulse generator with measurement, electronic load, and trigger controller
Includes TSP Express characterisation software, LabVIEW driver, and Keithley's Test Script Builder software development environment
1% to 100% pulse duty cycle for pulse width modulated (PWM) drive schemes and device specific drive stimulus
1pA resolution enables precise measurement of very low leakage currents
