The Aim-TTi Replacement Kelvin Clip Set BS K-Clip is a replacement Kelvin Clip Set.  It is ideal for with the BS407 Precision Micro Ohmmeter.

• Good quality
• Manufacturers part no. Aim-TTi BS K-Clip

Serial cable HA1600, LCR400.

The Aim I-prober 520 positional current probe is unlike any other current measurement device available. It is slim, good looking and very clever.

Calibrated measurement of current normally requires the current to be passed through a closed magnetic loop. Typically this is done using some form of split clamp device. Whereas this is suitable for individual wires, it is of no use for measuring current in PCB tracks. The unique feature of the I-prober 520 is its ability to observe and measure currents flowing in PCB tracks by acting as a positional current probe.

The magnitude of the signal is critically related to its position relative to the conductor which means that the probe tip must be positioned carefully. The size of the conductor (e.g. the width of a PCB track) also has a significant effect. This means that the sensitivity of the I-prober has to be adjusted to match the track width when quantitative measurements are required. A calibrator within the control box enables sensitivity adjustment in conjunction with a calibration graph.

The measurement result will also include other field effects present at the tip of the probe and not just that coming from the current through the conductor. This may include DC effects from adjacent magnetised components and from the earth's magnetic field, plus AC effects from transformers and other field radiating sources. Current in adjacent tracks, or tracks on the opposite side of the PCB will also affect the measurement. There are potential solutions to these problems. The unwanted DC can be nulled out by observing the measurement without power to the circuit, whilst AC interference can be attenuated using bandwidth filters. The I-prober control box includes a wide range DC offset control and switchable filters.

• Observe and measure current in a PCB track
• Make measurements via non-contact probing
• Suitable for observation and measurement of current in component lead
• Measurement of ground planes as well as PCB tracks
• Wide dynamic range of 10mA to 20A pk to pk
• Wide bandwidth of DC to 5MHz
• Low noise equivalent to <6mA RMS at full bandwidth
• Minimal disturbance to circuit conditions through very low insertion impedance
• Safety rated to 300V Cat II (600V Cat I)
• Suitable for connection to any oscilloscope
• High accuracy general purpose H-field probe
• Convertible into closed magnetic circuit current probe
• Manufacturers part no. Aim-TTi I-prober 520

Kelvin clip test leads set (requires the BNC Adaptor).

Aim-TTi TG GPIB Interface option for TGR1040 and TGR2050.

• Aim-TTi type TG GPIB

Because current measurement requires the insertion of a shunt or a CT, the task often becomes difficult due to breaks in the electrical path. The GW Instek Current Probe GCP-1030 only needs to be connected directly into the BNC input on waveform observation equipment such as an oscilloscope or a recorder.

Then simply clamp onto the GW Instek Current Probe conductor to be measured to easily observe current waveforms under a wide bandwidth and high sensitivity conditions.

A built-in DEMAG (demagnetize) function allows the removal of any residual magnetism that has built up in the magnetic core due to power on/off switching or excessive input current. In addition, voltage offset or temperature drift on the probe can be easily corrected by using the zero adjustment control.

• Various bandwidths: DC-100MHz
• DC and AC measurements
• Superior 1% accuracy and high signal to noise ratio
• Overload-protect function prevents probe damage from excessive input
• Direct connection to high-impedance 1MΩ BNC input of oscilloscope
• Demagnetize button to remove any residual magnetism that builds up in the magnetic core
• External power supply allows the connection of current probes to a single power supply
• Manufacturers part no. GW Instek 100MHz/30A Current probe GCP-1030

This device can be directly connected to a BNC input connector of a waveform measuring instrument such as an oscilloscope or recorder, and by clamping on a conductor to be measured, allows the current waveform to be easily captured.

• Highly accurate current detection
• Easy current measurement
• Broadband frequency characteristics DC to 50 MHz (for GCP-530)
• Compact and permits measurement of low current levels
• Easy protect function at excessive input
• Manufacturers part no. GW Instek GCP-206P (2-Channel)

This device can be directly connected to a BNC input connector of a waveform measuring instrument such as an oscilloscope or recorder, and by clamping on a conductor to be measured, allows the current waveform to be easily captured.

• Highly accurate current detection
• Easy current measurement
• Broadband frequency characteristics DC to 100 MHz (for GCP-1030)
• Compact and permits measurement of low current levels
• Easy protect function at excessive input
• Manufacturers part no. GW Instek GCP-425P (4-Channel)

Because current measurement requires the insertion of a shunt or a CT, the task often becomes difficult due to breaks in the electrical path. The GW Instek Current Probe GCP-530 only needs to be connected directly into the BNC input on waveform observation equipment such as an oscilloscope or a recorder.

Then simply clamp onto the GW Instek Current Probe conductor to be measured to easily observe current waveforms under a wide bandwidth and high sensitivity conditions.

A built-in DEMAG (demagnetize) function allows the removal of any residual magnetism that has built up in the magnetic core due to power on/off switching or excessive input current. In addition, voltage offset or temperature drift on the probe can be easily corrected by using the zero adjustment control.

• Bandwidth: DC-50MHz
• DC and AC measurements
• Superior 1% accuracy and high signal to noise ratio
• Overload-protect function prevents probe damage from excessive input
• Direct connection to high-impedance 1MΩ BNC input of oscilloscope
• Demagnetize button to remove any residual magnetism that builds up in the magnetic core
• External power supply allows the connection of current probes to a single power supply
• Manufacturers part no. GW Instek 50MHz/30A Current Probe GCP-530

A range of GW Instek GDP-025 high voltage differential probe offers the user a selectable attenuation setting, that makes it highly versatile. This allows it to be used a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places.

The GW Instek GDP-025 high voltage differential probe also provides an over range indicator which alerts the user when the probe input exceeds the dynamic range of the probe. The GW Instek high voltage differential probe provides a 25MHz bandwidth enabling users to safely make high-voltage measurements on floating circuit test.

The GW Instek high voltage differential probe converts floating signals to low-voltage ground-referenced signals that can be displayed safely and easily on any ground referenced oscilloscope.

Accessories that are included with the differential probe are: large crocodile clips, long grabber clips, test leads, BNC-BNC cable and power supply.

• 25Mhz Bandwidth
• Up to 1,400V Differential Voltage
• Flexible Attenuation Option, Suitable for Various Applications
• Separation design, users can easily replace the probe connector to complete a variety of test applications
• Accurately make floating measurements
• Manufacturers part no. GW Instek 25MHz High Voltage Differential Probe GDP-025

A range of GW Instek GDP-050 high voltage differential probe offers the user a selectable attenuation setting, that makes it highly versatile. This allows it to be used a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places.

The GW Instek GDP-050 high voltage differential probe also provides an over range indicator which alerts the user when the probe input exceeds the dynamic range of the probe. The GW Instek high voltage differential probe provides a 50MHz bandwidth enabling users to safely make high-voltage measurements on floating circuit test.

The GW Instek high voltage differential probe converts floating signals to low-voltage ground-referenced signals that can be displayed safely and easily on any ground referenced oscilloscope.

Accessories that are included with the differential probe are: large crocodile clips, long grabber clips, test leads, BNC-BNC cable and power supply.

• 50Mhz Bandwidth
• Up to 1,400V Differential Voltage
• Flexible Attenuation Option, Suitable for Various Applications
• Separation design, users can easily replace the probe connector to complete a variety of test applications
• Accurately make floating measurements
• Manufacturers part no. GW Instek 50MHz High Voltage Differential Probe GDP-050

A range of GW Instek GDP-100 high voltage differential probe offers the user a selectable attenuation setting, that makes it highly versatile. This allows it to be used a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places.

The GW Instek GDP-100 high voltage differential probe also provides an over range indicator which alerts the user when the probe input exceeds the dynamic range of the probe. The GW Instek high voltage differential probe provides a 50MHz bandwidth enabling users to safely make high-voltage measurements on floating circuit test.

The GW Instek high voltage differential probe converts floating signals to low-voltage ground-referenced signals that can be displayed safely and easily on any ground referenced oscilloscope.

Accessories that are included with the differential probe are: large crocodile clips, long grabber clips, test leads, BNC-BNC cable and power supply.

• 100Mhz Bandwidth
• Up to 1,400V Differential Voltage
• Flexible Attenuation Option, Suitable for Various Applications
• Separation design, users can easily replace the probe connector to complete a variety of test applications
• Accurately make floating measurements
• Manufacturers part no. GW Instek 100MHz High Voltage Differential Probe GDP-100

The GLA-1000 Series Signal Grippers GCP-201 is used with the GLA-Series.

• 20 piece set of signal grippers
• For: GLA-Series
• Manufacturers part no. GW Instek GCP-201

The GHT-205 High Voltage Test Probe is a test output probe that connects to GW Instek GPI/GPT-700A Series and GPI/GPT-800 Series Electrical Safety Tester. Its convenient shape allows faster connection to the DUT (device under test).

To prevent potential electric shocks whilst performing tasks close to high voltage area such as DUT, always wear rubber gloves for electrical work when performing electrical safety test with this probe.

• For: GPT-9800 Series, GPT/GPI-700A Series, GPT/GPI-800 Series
• Manufacturers part no. GW Instek GHT-205

NOTE: This probe is designed to be used with GW Instek GPI/GPT-700A Series and GPI/GPT-800 Series Electrica Safety Tester.

NOTE: Reading the warning carefully given on the label which is stamped on the body of high-voltage test probe before attempting to use it.

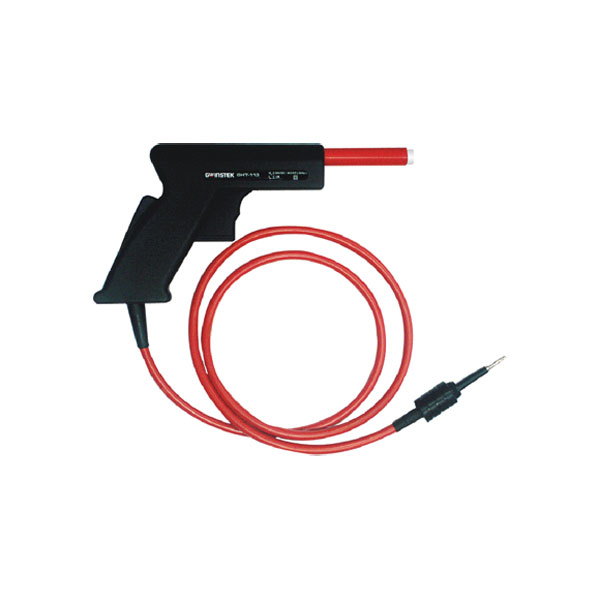

This GW Instek GPI/GPT-700A/800A HV Test Pistol has an unbreakable plastic housing.

• Operation voltage 10kVDC/8kVAC max
• Connecting via highly flexible safety cable
• Power supply line approx. 2m
• Wear-resistant tungsten test probe tip
• Teflon sleeve for resistance to burning
• Manufacturers part no. GW Instek GHT-113

The GW Instek GSP-800 Series BNC Antenna ATA-001 is used with the GSP-Series.

• Wideband, upper resonant frequency 1GHz
• Primary sensor type: H-Field
• Weight (kg): 0.25
• For: GSP-Series
• (An additional ADP-001 is needed for fitting GSP spectrum analyzers)
• Manufacturers part no. GW Instek ATA-001

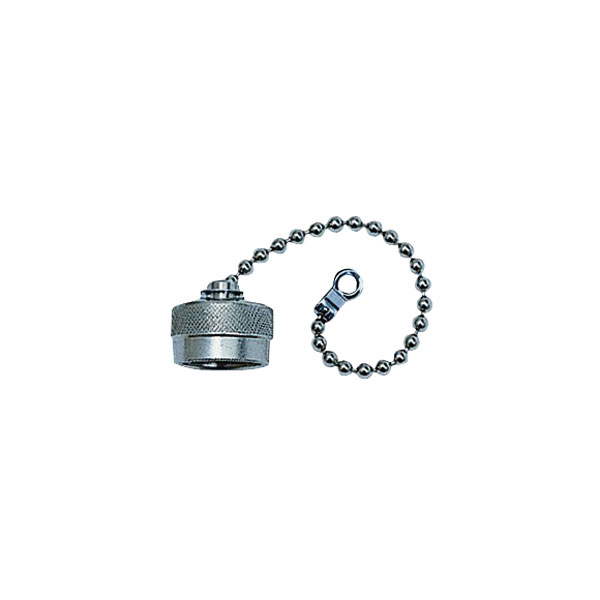

The GW Instek GSP-800 Series Cap with Chain N GAK-002 is ideal for use with the GSP-Series.

• N-Type Cap with Chain
• N (P/M)
• For: GSP-Series
• Manufacturers part no. GW Instek GAK-002

A GW Instek GSP-800 Series CATV Kit Set GKT-002.

• For CATV Application
• Including ADP-001, ADP-101 *2, GTL-304, GSC
• For: GSP-Series
• Manufacturers part no. GW Instek GKT-002

A GSP-800 Series General Kit Set GKT-001.

• For RLB-001 Application
• Including ADP-002 *2, ATN-100, GTL-303 *2, GSC-002
• For: GSP-Series
• Manufacturers part no. GW Instek GKT-001

The GW Instek GSP-800 Series Pre-Amplifier GAP-802 is ideal for use with the GSP-830.

• 20dB Preamplifier typical
• Frequency Range 9kHz to 3GHz
• For: GSP-830
• Manufacturers part no. GW Instek GAP-802

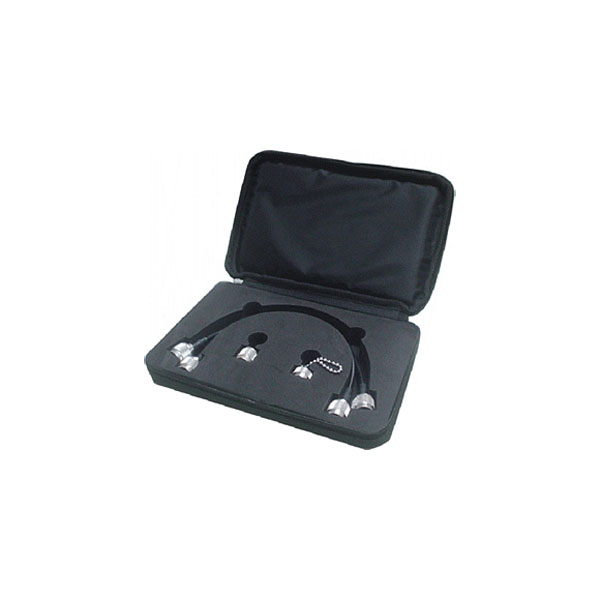

A GW Instek GSP-800 Series RLB Kit Set GKT-003.

• For RLB-001 Application
• Including GAK-001, GAK-002, GTL-302, GSC-004
• For: GSP-Series
• Manufacturers part no. GW Instek GKT-003

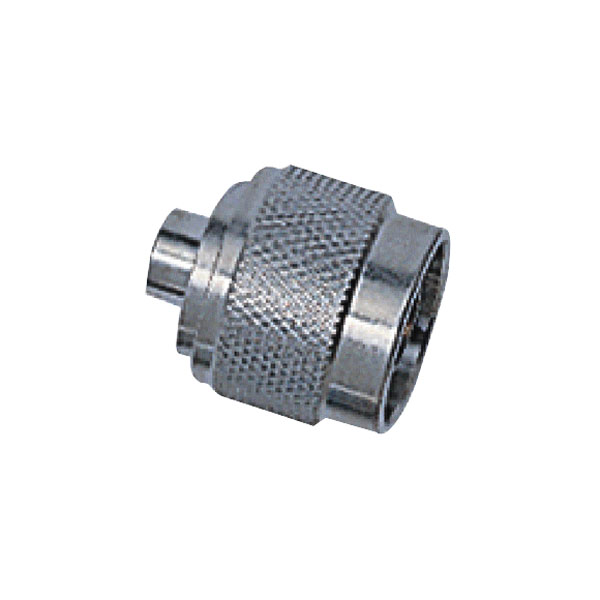

The GW Instek GSP-800 Series near Field Probe ATA-002 is for use with the GSP-Series.

• 50Ω Termination
• N (P/M) Connector
• For: GSP-Series
• Manufacturers part no. GW Instek GAK-001

This set of GW Instek GTL-101 Test Leads - BNC to Alligator Heads combines the ever popular BNC interface with most of the commonly used test lab connection types. In this case, it is alligator clips. These test leads are very useful in a lab environment for all your testing needs.

• For: GOS-310/620FG,GVT/SFG/GFG/GFC-Series
• Manufacturers part no. GW Instek GTL-101

This set of GW Instek GTL-103 Test Leads – Banana to Alligator Heads combines the ever popular BNC interface with most of the commonly used test lab connection types. In this case, it is Banana plugs.

These test leads are very useful in a lab environment for all your testing needs.

• For: GAG-809/810, GAD-201G
• Test lead length 1200mm (approx)
• Manufacturer's part no. GW Instek GTL-103

This set of GW Instek GTL-104A Test Leads - PSU 4-10A combines the ever popular Alligator clips with most of the commonly used test lab connection types. In this case, it is spade plugs. These test leads are very useful in a lab environment for all your testing needs.

• For: GPR-U/H/M Series, PSP/PST/PSS/PSM/GPS/GPC-Series
• Manufacturers part no. GW Instek GTL-104A

This set of GW Instek GTL-104A Test Leads - PSU 4-10A combines the ever popular Alligator clips with most of the commonly used test lab connection types. In this case, it is banana plugs. These test leads are very useful in a lab environment for all your testing needs.

• Max. Current 3A
• For: GPR-U/H/M Series, GPC/GPS/PPE/PPS/PPT/PSS/PST-Series
• Manufacturers part no. GW Instek GTL-105A

This set of GW Instek GTL-107A Test Leads combines the ever popular banana plug with most of the commonly used test lab connection types. In this case, it is banana socket. These test leads are very useful in a lab environment for all your testing needs.

• For: GDM-8034/8135/8145
• Manufacturers part no. GW Instek GTL-107A

This set of GW Instek GTL-108A Test Leads combines the ever popular banana plug with most of the commonly used test lab connection types. In this case, it is Kelvin plugs. These test leads are very useful in a lab environment for all your testing needs.

• For: GOM-801H/802,GDM-8255A/8251A
• Manufacturers part no. GW Instek GTL-108A

This GW Instek GTL-110 Test Lead with BNC/BNC Heads combines the ever popular BNC socket with most of the commonly used test lab connection types. In this case, it is BNC socket. This test lead is very useful in a lab environment for all your testing needs.

• For: GDS/GRS/GOS/GFC /GSG/GRG/SFG-Series
• Manufacturers part no. GW Instek GTL-108A

This W Instek GTL-115 Test Leads combines the ever popular crocodile clip with most of the commonly used test lab connection types. In this case, it is the spade connector. This test lead is very useful in a lab environment for all your testing needs.

• For: GCT-630, GPI-745
• Manufacturers part no. GW Instek GTL-110

This GW Instek GTL-117 Test Leads combines the ever popular banana socket with most of the commonly used test lab connection types. In this case, it is a pencil probe. This test lead is very useful in a lab environment for all your testing needs.

• For: GDM-8245/8246,GDM-8255A/8251A
• Manufacturers part no. GW Instek GTL-110

The GW Instek GTL-120 Test Leads is idea for use with the PEL 2000 series.

Not recommended for use as a battery charger.

The GW Instek GTL-121 Test Leads is idea for use with the PEL 2000 series.

Not recommended for use as a battery charger.

The GW Instek GTL-201A Ground Lead has been manufactured for testing with the GPS-X303 / PSM / GPS Series.

• European Terminal
• For: GPS-2303/3303/4303, PSM-Series, GPS-3030/3030D/3030DD
• Manufacturers part no. GW Instek GLA-1016

The GW Instek GTL-202 Sense Lead has been manufactured for testing with the PSM Series.

• European Terminal
• For: PSM-Series
• Manufacturers part no. GW Instek GTL-202

The GW Instek GTL-203A Europe Type has been manufactured for testing with the PSS/PST/GPC/GPS/SPS-Series.

• European Terminal
• Max. Current 3A
• For: PSS/PST/GPC/GPS/SPS-Series
• Manufacturers part no. GW Instek GTL-203A

The GW Instek GTL-204A Europe Type has been manufactured for testing with the GPC/GPS/PPE/PPS/PPT/PSM/PSP/PST-Series.

• European terminal
• Max. Current 10A
• For: GPC/GPS/PPE/PPS/PPT/PSM/PSP/PST-Series
• Manufacturers part no. GW Instek GTL-204A

This GW Instek GTL-232 RS232C Cable is commonly found on connections between peripheral equipment such as modems and a PC, although there are many other uses. The GW Instek GTL cable has been manufactured from quality cable and terminals.

This GW Instek GTL-232 RS232C Cable is commonly found on connections between peripheral equipment such as modems and a PC, although there are many other uses. The GW Instek GTL cable has been manufactured from quality cable and terminals.

• RS-232C Cable
• 9-pin female to 9-pin female type
• Null modem for computer
• Ideal for: GDS-2000 Series, GDS-800 Series, GRS-6032A/6052A,SFG-830,LCR-816/817/819/821,GPT/GPI-700A Series,PSM-2010/3004/6003,GDM-8255A/8251A
• Manufacturers part no. GW Instek GTL-232

This GW Instek GTL-232A RS232C Cable is ideal for connection of GW Instek PSP-603, 405 and 2010 although there are many other uses. The GW Instek GTL-232A cable has been manufactured from quality cable and terminals.

• RS-232C Cable
• 9-pin female to 9-pin female type
• Ideal for: PSP-603/405/2010
• Manufacturers part no. GW Instek GTL-232A

These GW Instek GTL-246 USB2.0 A-B Type Cable is ideal for connection of GW Instek GDS-2000 Series,GDS-1000A Series,GLA-1000 Series,GDS-800 Series although there are many other uses. The GW Instek GTL-246 cable have been manufactured from quality cable and terminals.

• A-B Type Cable
• USB Cable 2.0
• Approx 1.2m
• Ideal for: GDS-2000 Series,GDS-1000A Series,GLA-1000 Series,GDS-800 Series
• Manufacturers part no. GW Instek GTL-246 (1.2m)

The GW Instek GTL-247 USB 1-1 type cable is a great way to extend the reach of your USB device.

It is the easiest way to connect two devices without having to move all your furniture to accommodate them. The GW Instek GTL-247 USB 1-1 Type Cable has a 1.8m reach that gives you flexibility to answer all your connection needs.

• A-A Type Cable
• USB Cable 1.1
• Approx 1.8m
• Ideal for: GDM-8255A/8251A
• Manufacturers part no. GW Instek GTL-247

The GW Instek GTL-248 GPIB Cable is idea for use with the PEL 2000 series.

Not recommended for use as a battery charger.

The GW Instek GTL-249 Frame Link Cable is ideal for use with the PEL 2000 series.

Not recommended for use as a battery charger.

The GW Instek GTL-301 RF Cable is a high quality straight connector to straight connector assembly manufactured from high quality cable and fittings.

• RF Cable assembly
• RG223, N(P/M) connector
• 1000mm Length
• Ideal for GSP-series
• Manufacturers part no. GW Instek GTL-301

The GW Instek GTL-302 RF Cable is a high quality straight connector to straight connector manufactured from high quality cable and fittings.

• RF Cable Assembly
• RG223, N(P/M) Connector
• 300mm Length
• For GSP-Series
• Manufacturers part no. GW Instek GTL-302

The GW Instek GTL-303 RF Cable is a high quality straight connector to straight connector manufactured from high quality flexible cable and fittings.

• RF Cable Assembly
• RG316, SMA(P/M) Connector
• 600mm Length
• Ideal for GSP-Series
• (An additional ADP-002 is needed for fitting GSP spectrum analysers)
• Manufacturers part no. GW Instek GTL-303

The GW Instek GTL-304 RF Cable Assembly is a high quality straight connector to straight connector manufactured from high quality flexible cable and fittings.

• RF Cable Assembly
• RG223, N(P/M) - N(J/K) Connector
• 280mm Length
• Ideal for GSP-Series
• Manufacturers part no. GW Instek GTL-304

This is a 350MHz (10:1) passive probe for use with digital storage oscilloscopes GDS-3352/3354 from the GW Instek GDS 3000 Series.

This is a 150MHz (10:1) passive probe for use with digital storage oscilloscopes GDS-3152/ 3154 from the GW Instek GDS 3000 Series.

This is a 250MHz (10:1) passive probe for use with digital storage oscilloscopes GDS-3252/3254 from the GW Instek GDS 3000 Series.
