The ABI ChipMaster Compact Professional is a low-cost, hand-held out-of-circuit IC tester. The ChipMaster is designed for testing digital ICs with up to 40 pins through a ZIF socket (see LinearMaster for analogue devices).
The ChipMaster includes a search facility for unknown ICs, loop modes for intermittent failure detection, diagnostic information for individual pins and self diagnosis for product integrity.
The unit is battery operated (4x AA/LR6) but an optional battery eliminator is available for extended use.
The ABI Compact Range is fitted with an RS-232 interface to allow connection with a computer and use with the optional software CompactLink.
CompactLink is a PC based software package that allows users to add new devices to the library and create functional tests to suit special applications.
The ABI LinearMaster Compact Professional is a low-cost, hand-held out-of-circuit IC tester. The LinearMaster is designed for testing analogue ICs with up to 16 pins through a ZIF socket. A range of adaptors is also available for SOIC and PLCC devices.
The LinearMaster includes a search facility for unknown ICs, loop modes for intermittent failure detection, diagnostic information for individual pins and self diagnosis for product integrity.
The unit is battery operated (4x AA/LR6) but an optional battery eliminator is available for extended use.
The ABI Compact Range is fitted with an RS-232 interface to allow connection with a computer and use with the optional software CompactLink.
CompactLink is a PC based software package that allows users to add new devices to the library and create functional tests to suit special applications.
This dual instrument pack from Peak features the Atlas DCA Pro Advanced Semiconductor Analyser, model DCA75, 85-2073, and the Atlas LCR Impedance Meter, model LCR45, 85-2077, housed in a robust padded case, complete with spare batteries, user guides and space for accessories.
For full details of the Atlas DCA Pro Advanced Semiconductor Analyser (DCA75) see 85-2073
For full details of the Atlas LCR Impedance Meter (LCR45) see 85-2077
A smart and really clever instrument that will automatically analyse almost any semiconductor. Just connect it any way round and press test. It will automatically identify the type of part you have, identify the pinout and measure important parameters.It supports most bipolar transistors, Darlingtons, MOSFETs, diodes, LEDs and more. For 2-leaded components, just use any pair of test clips, any way round. It will even identify special component features such as fly-wheel diodes and resistor shunts on transistors.The Atlas DCA will measure current gain for transistors, gate threshold for MOSFETs and voltage drops for semiconductor junctions (such as transistor base-emitter junctions, diodes, LEDs etc).
Automatic identification of most discrete semiconductor components
Supports Bipolar Transistors, MOSFETs, JFETs, Diodes, LEDs, Diode Networks (such as SOT23 networks) and more
Connect any way round, the Atlas DCA will tell you which lead is which
Measures transistor HFE from 4 to 65,000
Measures transistor leakage current
Tests at a safe 5mA (into short circuit)
Silicon/Germanium identification
BiColour LED identification (2 and 3 lead types)
Fully automatic
Supplied with new premium quality universal hook probes
Supplied with premium grade probes, battery and user guide
Includes alkaline battery GP23A, MN21 (12V remote control/lighter type)
The DCA Pro is an advanced new design that features a graphics display, USB communications, PC Software and an enhanced component identification library.
The instrument can be used stand-alone or connected to a PC. Either way, the DCA Pro will automatically identify the component type, identify the pin-out and also measure a range of component parameters such as transistor gain, leakage, MOSFET and IGBT threshold voltages, pn characteristics and much more.
The DCA Pro supports all the components that the popular Peak Atlas DCA55 supports, but adds plenty more.
Transistors (including Darlingtons), Silicon and Germanium types. Measures gain, Vbe and leakage
MOSFETs, enhancement mode and depletion mode types. Measure on-threshold (at 5mA) and approx transconductance (for span of 3mA-5mA)
JFETs, including normally off SiC types. Measures pinch-off voltage (at 1uA) and approx transconductance (for span of 3mA-5mA)
Measuring a capacitor's ESR is a great indicator of capacitor condition. The Atlas ESR+ offers instant results, just connect the probes and press test. Innovative audible alerts give you an instant feedback of the measurement results with further detail shown on the screen.
And the tones themselves are surprisingly pleasant, including Bell-like pings and also a Beep-Barp type tone for ESR that is likely to be too high. There is also a reassuring Blip when the measurement has started and completed.
You can even use the Atlas ESR+ in-circuit, saving you the trouble of removing capacitors. When testing capacitors out-of-circuit, the unit will also display the capacitance. This clever instrument is a great way to check the physical condition of a wide range of capacitors. Elevated ESR is a sure indicator that the capacitor is failing and likely to dissipate heat and perform less like a capacitor and more like a resistor at high ripple currents.
It can measure and compensate for the effects of measuring ESR in-circuit too, it also knows that you do not want to be hassled with capacitor polarity, just connect any way round. It's designed with the real world in mind. Some capacitors can be charged up, but the Atlas ESR+ does not mind. If your capacitor is charged, the unit will automatically carry out a controlled discharge procedure before measuring the capacitance and ESR.
Measure capacitance and ESR
New enhanced dynamic range of 0.00Ω to 20.0Ω
ESR Resolution as fine as 0.01Ω
Supports capacitors from 1µF to 22,000µF
Capable of In-Circuit measurement of ESR
Polarity free, connect any way round
Protected against highly charged capacitors
Great for low DC resistance checking too (such as PCB short checking)
Test leads are ultra-durable and 45cm long with crocodile clips
Enhanced software compensation of cable resistance
The Atlas LCR40 is an advanced instrument that greatly simplifies the testing of passive components. Traditional LCR bridges are inherently complex and very time consuming to use.
The Atlas LCR40 does everything automatically, it tells you the component type in addition to component value data. What's more, the Atlas LCR40 automatically selects the best signal level and frequency for the particular component under test.
Just clip the universal test leads to your component and press the test button. In seconds, the Atlas LCR40 will identify the type of component (Inductor, Capacitor or Resistor) together with the component's main value. Additionally, further component data is also displayed, such as the DC resistance of an inductor.
The test frequency is automatically selected to suit the component under test and this is also confirmed on the scrollable display.
The Atlas LCR40 is supplied with our new detachable micro-hooks, allowing the use of the optional SMD Tweezers, clutch grabber and crocodile probes. Other accessories are available too, such as a added carry case, spare batteries and more.
Automatic identification and measurement of Inductors, Capacitors and Resistors
Automatic test frequency selection
Uses high purity sine waves (-60dB 3rd harmonic)
Incorporates probe compensation memory
Automatic component identification
Automatic test frequency selection (DC, 1kHz, 15kHz,200kHz)
Delayed or instant analysis (for hands free operation)
Auto power-OFF
Non-volatile probe and test lead compensation
Interchangeable probes sets
Automatic ranging and scaling with units display
1% basic resistance accuracy
1.5% basic inductance/capacitance accuracy
Supplied with micro-hook probes, battery and user guide
Includes alkaline battery GP23A, MN21 (12V remote control/lighter type)
The Peak LCR45 is a versatile hand-held LCR analyser that can measure the value of your passive component (inductor, capacitor or resistor) and also measure the detailed impedance in a number of modes.
The LCR45 offers enhanced measurement resolution (better than 0.1uH) whilst also giving you continuous fluid measurements. Additionally, the test frequencies of DC, 1kHz, 15kHz and 200kHz can be set to automatic or manual modes.
The meter is supplied with removable gold-plated hook probes, battery and user guide. It is compatible with standard 2mm test connectors.
Automatic or manual component type selection: Inductor, Capacitor or Resistor
Automatic or manual test frequency selection: DC, 1kHz, 15kHz and 200kHz
Inductance from 0.1uH to 10H
Capacitance from 0.1pF to 10,000uF
Resistance from 0.1Ω to 2MΩ
Inductance measurement also shows DC winding resistance
Display of 'Component type and values', 'Complex Impedance', 'Magnitude/Phase' and 'Admittance'
Test frequency displayed for all measurements
Typical accuracy of 1.5% for inductors and capacitors (see spec table for details)
Typical accuracy of 1% for resistors
Test lead complete with gold plated 2mm plugs and sockets
The Peak Atlas SCR is specifically designed for the rapid identification and analysis of a very wide range of thyristors and triacs. Just connect the test probes any way round and press test. The Atlas SCR will instantly identify the type of part, identify the pinout, categorise its gate sensitivity and measure the gate voltage drop.
Automatic type identification (Triac or Thyristor)
Automatic pinout identification, just connect any way round
Gate sensitivity display from 100µA to 100mA
Consistent load test conditions of 12V at 100mA, even for a dying battery
Measures gate voltage drop
Supplied with universal premium probes that can connect to TO-220, TO-3, TO-92 and even bolt styles
Supplied with premium grade probes, battery and user guide
Dimensions 103 x 72 x 20mm
Includes alkaline battery GP23A, MN21 (12V remote control/lighter type)
The Peak ZEN50 Atlas ZEN - Zener Diode Analyser tests zener diodes, avalanche diodes, VDRs, TVSs, LED strings and much more, up to a maximum voltage of 50V.
Measures breakdown voltage (0 to 50V) with a resolution as fine as 20mV
Measures slope resistance (up to 1kΩ at 15mA with a 1Ω resolution)
Supports most Zener diodes, avalanche diodes and reference diodes from 0 to 50V
Great for testing VDRs, TVSs and other types of voltage protection devices
Selectable test currents: 2, 5, 10 and 15mA
Tiny duty cycle of test current to minimise heating of your component even when testing at 50V and 15mA
Test voltages are below levels described in the Low Voltage Directive 2006/95/EC
Continuous measurement display (updated 3 times per second)
Measurement 'hold' function to hold displayed values even if component is removed
Fitted gold plated crocodile (alligator) clips
Very comprehensive printed user guide
Long battery life and regulated test conditions even when the battery voltage is as low as 1.0V
Powered by a single alkaline AAA battery (included)

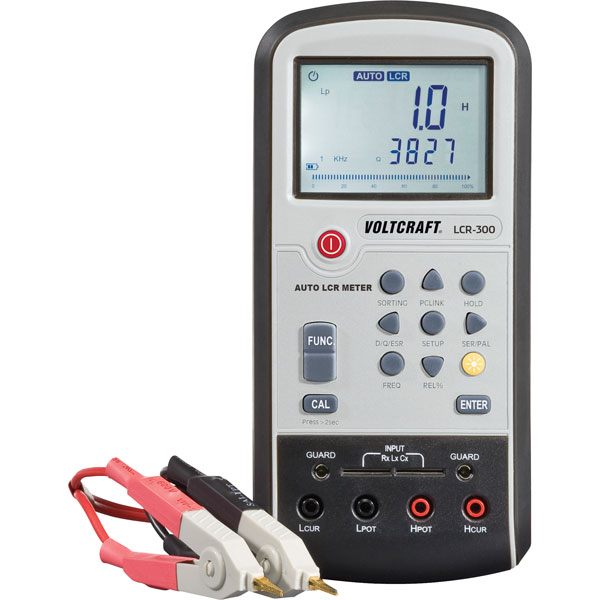

The Voltcraft LCR-300 LCR-Multimeter is a compact digital multimeter for electronics and test applications, and the right choice for electronics, technicians and field service engineers.
Measuring and displaying the electrical values of coils
Measuring inductivities of up to 2000H
Capacity measurement up to 20mF
Measuring resistors (AC-R/DC-R) of up to 200MΩ
Displaying the quality factor 'Q'
Displaying the electrical loss factor 'D'
Displaying the phase angle '0' (0.00° to ±180.0°)
Please Note: The calibration plug OPEN referred to in the Operating Instructions is no longer included.
The Voltcraft LCR-400 is a CAT I Precision LCR Digital Multimeter that is ideal for measuring resistors, inductors and capacitors. The measurement functions and measuring ranges are selected using the pushbuttons. An Automatic Measuring Range selection is active in all measuring areas.
The multimeter would be ideally suited in departments of development, production or repair. The user has the option to use the automatic component recognition. This enables quick and easy operation of the device without specific component skills.
What's in the Box?2 crocodile test leads 1 Kelvin test tweezers Zero Calibration Plug Magnetic hanging strap Holster Batteries Power Supply USB cable Software on CD Operating instructions
USB interface
Measuring frequency up to 100kHz
Inductance to 20kHz
Capacity to 20mF
Resistance to 200 milliohms
Basic accuracy: 0.2%
Large display with 20,000 counts
Automatic component recognition (LCR)
Reference measurement with display of deviation in %
Display of kindness factor, phase angle and loss factor
HOLD function
Manual component choice
Manual switch for serial/ or parallel circuit
Simple 2-wire measurement
Precise 4-wire measurement at the plug terminal
Precise 5-wire measurement with tweezers
Dual display
Automatic backlight
2 possible measuring inputs: integrated measuring terminals and test sockets
The Voltcraft R-200 is able to measure milli-ohm resistance from 0.1mΩ to 40Ω with a high accuracy on transformers, circuits, ring-bus systems, components, etc. The sprayed on soft-rubber casing will protect the R-200 from harsh and rugged use.
Test current up to 200mA
Multimeter with measurement functions V/AC, V/DC, Ω, F, mA/AC, mA/DC, acoustic continuity tester and diode test
Auto power-off
High resolution from 0.1mΩ with 200mA test current
Additional multimeter measurement functions
Supplied with R-200, 1x set of Kelvin measurement leads, 6x AA batteries, Stable preservation case and instructions for use
The Voltcraft RT-100 automobile relay tester is intended for making fast and easy checks of most current automobile relays with 4 or 5 connections. The tester performs a full automatic check of the relay and indicates the result with a light (green = OK, red = error). The test is performed at the coil and contact side. Only one relay can be tested at a time.
The automobile relay tester requires an automobile direct current of 12V to operate. This can be taken directly from the vehicle battery. The supplied pole terminals make connection to the vehicle battery easy.
The Voltcraft SMD-200 is the ideal solution for measurement of SMD components. The forceps adaptor allows the simultaneous measurement of adherence and small SMD capacitors, resistors and diodes. The gauge is located perfectly in the hand and always allows a view of the display.
For resistors, capacitors and diodes
AC/DC voltage measurement with tweezers and test lead adaptor
Supplied with SMD-200, Tweezers, adaptor test lead adaptor, Protective cap, 2x LR44 batteries, operational instructions
