The Mean Well RS-100-12 is a Switch Mode Power Supply from the RS-100 Series. This low cost and high reliability power supply is supplied with voltage ratings of 12V DC Output voltage.
It is compact and lightweight and has been designed to be mounted into equipment/racks etc. The PSU has a universal mains input voltage of 88 to 264V AC and 125 to 373V DC. It has Short Circuit, Overload, Over Voltage and Over Temperature protection.
Universal AC input/ Full range
Protections: Short circuit/ Overload/ Over voltage
The Mean Well RS-100-24 is a Switch Mode Power Supply from the RS-100 Series. This low cost and high reliability power supply is supplied with voltage ratings of 24V DC Output voltage.
It is compact and lightweight and has been designed to be mounted into equipment/racks etc. The PSU has a universal mains input voltage of 88 to 264V AC and 125 to 373V DC. It has Short Circuit, Overload, Over Voltage and Over Temperature protection.
Universal AC input/ Full range
Protections: Short circuit/ Overload/ Over voltage
The Mean Well RS-150-12 is a Switch Mode Power Supply from the RS-150 Series. This low cost and high reliability power supply is supplied with voltage ratings of 12V DC Output voltage.
It is compact and lightweight and has been designed to be mounted into equipment/racks etc. The PSU has a universal mains input voltage of 88 to 132V AC and 176 to 264V DC. It has Short Circuit, Overload, Over Voltage and Over Temperature protection.
Protections: Short circuit/ Overload/ Over voltage
The Mean Well RS-15-12 is a Switch Mode Power Supply from the RS-15 Series. This low cost and high reliability power supply is supplied with voltage ratings of 12V DC Output voltage.
It is compact and lightweight and has been designed to be mounted into equipment/racks etc. It has a universal mains input voltage of 85 to 264V AC and 120 to 370V DC. The PSU has Short Circuit, Overload, Over Voltage and Over Temperature protection.
Universal AC input/ Full range
Protections: Short circuit/ Overload / Over voltage/ Over temperature
The Mean Well RS-15-24 is a Switch Mode Power Supply from the RS-15 Series. This low cost and high reliability power supply is supplied with voltage ratings of 24V DC Output voltage.
It is compact and lightweight and has been designed to be mounted into equipment/racks etc. It has a universal mains input voltage of 85 to 264V AC and 120 to 370V DC. The PSU has Short Circuit, Overload, Over Voltage and Over Temperature protection.
Universal AC input/ Full range
Protections: Short circuit/ Overload / Over voltage/ Over temperature
The Mean Well RS-25-12 is a Switch Mode Power Supply from the RS-25 Series. This low cost and high reliability power supply is supplied with voltage ratings of 12V DC Output voltage.
It is compact and lightweight and has been designed to be mounted into equipment/racks etc. The PSU has a universal mains input voltage of 88 to 264V AC and 125 to 373V DC. It has Short Circuit, Overload, Over Voltage and Over Temperature protection.
Universal AC input/ Full range
Protections: Short circuit/ Overload / Over voltage/ Over temperature
The Mean Well RS-25-24 is a Switch Mode Power Supply from the RS-25 Series. This low cost and high reliability power supply is supplied with voltage ratings of 24V DC Output voltage.
It is compact and lightweight and has been designed to be mounted into equipment/racks etc. The PSU has a universal mains input voltage of 88 to 264V AC and 125 to 373V DC. It has Short Circuit, Overload, Over Voltage and Over Temperature protection.
Universal AC input/ Full range
Protections: Short circuit/ Overload / Over voltage/ Over temperature
The Mean Well RSP-1000-12 is a 720W Single Output Power Supply from the RSP-1000 Series. This AC/DC enclosed switching power supply has a Low Profile of 1U and is highly reliable. It runs with an efficiency of up to 90%, with forced air cooling by a built-in DC Fan.
The RSP-1000-12 is ideal for applications requiring energy savings, no noise, limited space for installation, as well as economical cost. Functions include PFC, remote ON/OFF control, and protection against short circuit, over load, over voltage, and over temperature.
Applications include Industrial automation, Mechanical and electrical equipment, Appliances (vending machine, coffee machine, etc.).
Universal AC input / Full range
AC input active surge current limiting
Built-in 5V/0.5A auxiliary power
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload / Over voltage / Over temperature
Output voltage can be trimmed between 40 to 110% of the rated output voltage
The Mean Well RSP-150-24 is a 150W Single Output Power Supply from the RSP-150 Series. This AC/DC enclosed switching power supply has a Low Profile of 1U and is highly reliable. It runs with an efficiency of up to 90%, with free air convection cooling. The RSP-150-24 is ideal for applications requiring energy savings, no noise, limited space for installation, as well as economical cost.
Functions include PFC, remote ON/OFF control, and protection against short circuit, over load, over voltage, and over temperature.
Applications include Industrial automation, Mechanical and electrical equipment, Appliances (vending machine, coffee machine, etc.).
Universal AC input/Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
The Mean Well RSP-2000-12 is a 2000.4W Single Output Power Supply from the RSP-2000 Series. This AC/DC enclosed switching power supply has a Low Profile of 1U and is highly reliable. It runs with an efficiency of up to 90%, with forced air cooling by a built-in DC Fan. The RSP-2000-12 is ideal for applications requiring energy savings, no noise, limited space for installation, as well as economical cost.
Functions include PFC, remote ON/OFF control, and protection against short circuit, over load, over voltage, and over temperature.
Applications include Industrial automation, Mechanical and electrical equipment, Appliances (vending machine, coffee machine, etc.).
Universal AC input / Full range
Built-in 5V/0.3A, 12V/0.8A auxiliary power
Built-in active PFC function, PF>0.97
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan with fan speed control
Output voltage can be trimmed between 40~115% of the rated output voltage
The Mean Well RSP-2000-24 is a 1920W Single Output Power Supply from the RSP-2000 Series. This AC/DC enclosed switching power supply has a Low Profile of 1U and is highly reliable. It runs with an efficiency of up to 90%, with forced air cooling by a built-in DC Fan. The RSP-2000-24 is ideal for applications requiring energy savings, no noise, limited space for installation, as well as economical cost.
Functions include PFC, remote ON/OFF control, and protection against short circuit, over load, over voltage, and over temperature.
Applications include Industrial automation, Mechanical and electrical equipment, Appliances (vending machine, coffee machine, etc.).
Universal AC input / Full range
Built-in 5V/0.3A, 12V/0.8A auxiliary power
Built-in active PFC function, PF>0.97
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan with fan speed control
Output voltage can be trimmed between 40~115% of the rated output voltage
The Mean Well RSP-320-12 is a 320W Single Output Power Supply from the RSP-320 Series. This AC/DC enclosed switching power supply has a Low Profile of 1U and is highly reliable. It runs with an efficiency of up to 90%, with forced air cooling by a built-in DC Fan with fan speed control function.
The RSP-320-12 is ideal for applications requiring energy savings, no noise, limited space for installation, as well as economical cost.Functions include PFC, remote ON/OFF control, and protection against short circuit, over load, over voltage, and over temperature.
Applications include Industrial automation, Mechanical and electrical equipment, Appliances (vending machine, coffee machine, etc.).
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan with fan speed control function
The Sunpower SPS 025-12 is a 25W Single Output Enclosed Power Supply from the SPS-25-xx Series. This power supply has a standard mounting fixture, identical in construction to products of other power supply manufacturers, making it ideal as a replacement.
The power supply has built-in protective measures against overload, overvoltage and short-circuits with automatic restart. The PSU is highly reliable and efficient, and will give a very long service life due to the integration of high-quality components. It offers a Green Mode function, whereby power consumption is greatly reduced to under 0.3W at no load. Ideal for industrial applications where isolated dual outputs are required.
The Sunpower SPS 025-24 is a 25W Single Output Enclosed Power Supply from the SPS-25-xx Series. This power supply has a standard mounting fixture, identical in construction to products of other power supply manufacturers, making it ideal as a replacement.
The power supply has built-in protective measures against overload, overvoltage and short-circuits with automatic restart. The PSU is highly reliable and efficient, and will give a very long service life due to the integration of high-quality components. It offers a Green Mode function, whereby power consumption is greatly reduced to under 0.3W at no load. Ideal for industrial applications where isolated dual outputs are required.
The Sunpower SPS 035-12 is a 35W Single Output Enclosed Power Supply from the SPS-35-xx Series. This power supply has a standard mounting fixture, identical in construction to products of other power supply manufacturers, making it ideal as a replacement.
The power supply has built-in protective measures against overload, overvoltage and short-circuits with automatic restart. The PSU is highly reliable and efficient, and will give a very long service life due to the integration of high-quality components. It offers a Green Mode function, whereby power consumption is greatly reduced to under 0.5W at no load. Ideal for industrial applications where isolated dual outputs are required.
The Sunpower SPS 035-D4 is a 35W Dual Output Enclosed Power Supply from the SPS-035 Series. This highly efficient PSU is supplied with isolated outputs and can operate between -20C to +70C with cooling by free air convection and has protections such as over voltage, overload and short circuit.
This power supply has a standard mounting fixture, identical in construction to products of other power supply manufacturers, making it ideal as a replacement. The PSU's are highly reliable and efficient, and will give a very long service life due to the integration of high-quality components. Ideal for industrial applications where isolated dual outputs are required.
The Sunpower SPS 060-55 is a 60W Single Output Enclosed Power Supply from the SPS-50/60-xx Range. The PSU has a standard mounting fixture, identical in construction to products of other power supply manufacturers, making it an ideal replacement.
The power supply also has a Green Mode Function. This function reduces the Output Power down to <0.075W when in NO load.The power supply operates between -25°C to +70°C with natural cooling. A voltage input of 85 to 264V AC or 120 to 375V DC, makes this PSU suitable for international applications. The PSU is highly reliable and efficient, and will give a very long service life, due to the integration of high-quality components. Ideal for industrial applications where isolated dual outputs are required.
This 24V DC 100W single output industrial power supply comes in a robust enclosed chassis with a terminal cover. The high efficiency unit has a universal input and is ideal for use in factory automation, test and measurement and automated service equipment applications.
This 24V DC 150W single output industrial power supply comes in a robust enclosed chassis with a terminal cover. The high efficiency unit has a universal input and is ideal for use in factory automation, test and measurement and automated service equipment applications.
This 24V DC 15W single output industrial power supply comes in a robust enclosed chassis with a terminal cover. The high efficiency unit has a universal input and is ideal for use in factory automation, test and measurement and automated service equipment applications.
The TDK-Lambda LS50-12 belongs to the manufacturer's LS50 series of single output AC-DC power supplies. The TDK-Lambda is offered with a 3 year manufacturer warranty. With a MTBF of 700000 hrs, it offers superior reliability and its broad operating temperature range makes the LS50-12 suitable for installation in indoor/outdoor enclosures. At temperatures above 50°C, the PSU offers a lower derate, with up to 70% load available at 70°C.
Applications include test and measurement, automated service, factory automation, LED lighting and display, and general purpose.
Single output 12Vdc 4.2A 50W
Voltage adjustable ±10% via potentiometer
Convection cooled - quiet operation
Three year manufacturer warranty
Connection Screw terminals
Dimensions 97(W) x 36(H) x 99(D)mm
Input voltage range 85 - 265V/AC, 120 - 370V DC
MTBF 700000 hrs
Max. temperature +70°C
Min. temperature -25°C
Number of outputs 1
Output current 1: 4.2A
Output voltage 1: 12V DC
Power 50W
Temperature range -25°C up to +70°C
Type (manufacturer type) LS50-12
Weight 350g
Safety and EMC according to CE, EN / UL / CSA 60950, EN 55011-B, EN 55022-B, FCC-B
A 24V 6.5A single output general purpose switch mode power supply that features a universal input and compact size, making it especially suitable for field work throughout the world.
A 24V 12.5A single output general purpose switch mode power supply that features a universal input and compact size, making it especially suitable for field work throughout the world.
A 36V 8.4A single output general purpose switch mode power supply that features a universal input and compact size, making it especially suitable for field work throughout the world.
A 48V 2.1A single output general purpose switch mode power supply that features a universal input and compact size, making it especially suitable for field work throughout the world.
A 24V 25A single output general purpose switch mode power supply that features a universal input and compact size, making it especially suitable for field work throughout the world.
The TGR150-12 150W Industrial Enclosed Power Supply, 12VDC, 12.5A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, reliable, with low no-load power consumption and high efficiency. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 264VAC
Input Voltage (DC): 120VDC to 373VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 150W
Output Voltage: 12V DC
Output Current: 12.5A
No-load Power Consumption: 0.5W
Cooling by free air convection
Output short circuit, over current, over voltage and over temperature protection
Operating Altitude: up to 5000m
Withstands 300VAC surge input for 5s
Safety Specifications: Approved to IEC/EN/UL62368, EN60335, EN61558, GB4943 Safety Standard
The TGR150-15 150W Industrial Enclosed Power Supply, 15VDC, 10A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, reliable, with low no-load power consumption and high efficiency. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 264VAC
Input Voltage (DC): 120VDC to 373VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 150W
Output Voltage: 15V DC
Output Current: 10A
No-load Power Consumption: 0.5W
Cooling by free air convection
Output short circuit, over current, over voltage and over temperature protection
Operating Altitude: up to 5000m
Withstands 300VAC surge input for 5s
Safety Specifications: Approved to IEC/EN/UL62368, EN60335, EN61558, GB4943 Safety Standard
The TGR150-24 156W Industrial Enclosed Power Supply, 24VDC, 6.5A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, reliable, with low no-load power consumption and high efficiency. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 264VAC
Input Voltage (DC): 120VDC to 373VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 156W
Output Voltage: 24V DC
Output Current: 6.5A
No-load Power Consumption: 0.5W
Cooling by free air convection
Output short circuit, over current, over voltage and over temperature protection
Operating Altitude: up to 5000m
Withstands 300VAC surge input for 5s
Safety Specifications: Approved to IEC/EN/UL62368, EN60335, EN61558, GB4943 Safety Standard
The TGR150-36 154.8W Industrial Enclosed Power Supply, 36VDC, 4.3A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, reliable, with low no-load power consumption and high efficiency. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 264VAC
Input Voltage (DC): 120VDC to 373VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 154.8W
Output Voltage: 36V DC
Output Current: 4.3A
No-load Power Consumption: 0.5W
Cooling by free air convection
Output short circuit, over current, over voltage and over temperature protection
Operating Altitude: up to 5000m
Withstands 300VAC surge input for 5s
Safety Specifications: Approved to IEC/EN/UL62368, EN60335, EN61558, GB4943 Safety Standard
The TGR150-48 158.4W Industrial Enclosed Power Supply, 48VDC, 3.3A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, reliable, with low no-load power consumption and high efficiency. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 264VAC
Input Voltage (DC): 120VDC to 373VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 158.4W
Output Voltage: 48V DC
Output Current: 3.3A
No-load Power Consumption: 0.5W
Cooling by free air convection
Output short circuit, over current, over voltage and over temperature protection
Operating Altitude: up to 5000m
Withstands 300VAC surge input for 5s
Safety Specifications: Approved to IEC/EN/UL62368, EN60335, EN61558, GB4943 Safety Standard

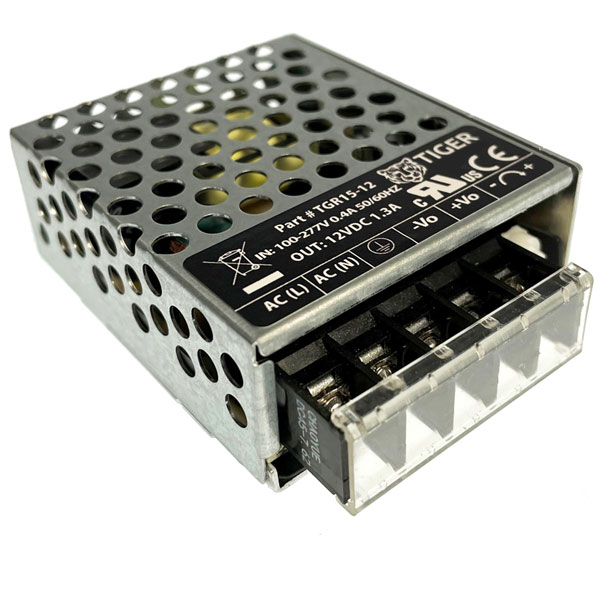

The TGR15-12 15W Industrial Enclosed Switching Power Supply, 12VDC, 1.3A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, with low no-load power consumption, high efficiency and high reliability. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 305VAC
Input Voltage (DC): 100VDC to 430VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 15.6W
Output Voltage: 12V DC
Output Current: 1.3A
No-load Power Consumption: ˂ 0.5W
Cooling Method: Free Air Convection
Output short circuit, over current and over voltage protection
Operating Altitude: up to 5000m
Compact Design
High MTBF
Safety Specifications: Approved to IEC/EN/UL62368, GB4943 Safety Standards
The TGR15-15 15W Industrial Enclosed Switching Power Supply, 15VDC, 1A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, with low no-load power consumption, high efficiency and high reliability. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 305VAC
Input Voltage (DC): 100VDC to 430VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 15W
Output Voltage: 15V DC
Output Current: 1A
No-load Power Consumption: ˂ 0.5W
Cooling Method: Free Air Convection
Output short circuit, over current and over voltage protection
Operating Altitude: up to 5000m
Compact Design
High MTBF
Safety Specifications: Approved to IEC/EN/UL62368, GB4943 Safety Standards
The TGR15-24 15W Industrial Enclosed Switching Power Supply 24VDC, 0.625A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, with low no-load power consumption, high efficiency and high reliability. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 305VAC
Input Voltage (DC): 100VDC to 430VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 15W
Output Voltage: 24V DC
Output Current: 0.625A
No-load Power Consumption: ˂ 0.5W
Cooling Method: Free Air Convection
Output short circuit, over current and over voltage protection
Operating Altitude: up to 5000m
Compact Design
High MTBF
Safety Specifications: Approved to IEC/EN/UL62368, GB4943 Safety Standards
The TGR15-3 15W Industrial Enclosed Switching Power Supply, 3.3VDC, 3A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, with low no-load power consumption, high efficiency and high reliability. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 305VAC
Input Voltage (DC): 100VDC to 430VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 9.9W
Output Voltage: 3.3V DC
Output Current: 3A
No-load Power Consumption: ˂ 0.5W
Cooling Method: Free Air Convection
Output short circuit, over current and over voltage protection
Operating Altitude: up to 5000m
Compact Design
High MTBF
Safety Specifications: Approved to IEC/EN/UL62368, GB4943 Safety Standards
The TGR15-48 15W Industrial Enclosed Switching Power Supply, 48VDC, 0.32A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, with low no-load power consumption, high efficiency and high reliability. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 305VAC
Input Voltage (DC): 100VDC to 430VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 15.36W
Output Voltage: 48V DC
Output Current: 0.32A
No-load Power Consumption: ˂ 0.5W
Cooling Method: Free Air Convection
Output short circuit, over current and over voltage protection
Operating Altitude: up to 5000m
Compact Design
High MTBF
Safety Specifications: Approved to IEC/EN/UL62368, GB4943 Safety Standards
The TGR15-5 15W Industrial Enclosed Switching Power Supply, 5VDC, 3A, is designed to accept either AC or DC input voltage.
The power supply is compact and lightweight and has been designed to be cost effective, with low no-load power consumption, high efficiency and high reliability. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 305VAC
Input Voltage (DC): 100VDC to 430VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 15W
Output Voltage: 5V DC
Output Current: 3A
No-load Power Consumption: ˂ 0.5W
Cooling Method: Free Air Convection
Output short circuit, over current and over voltage protection
Operating Altitude: up to 5000m
Compact Design
High MTBF
Safety Specifications: Approved to IEC/EN/UL62368, GB4943 Safety Standards
The TGR320-12 320.4W Industrial Enclosed Switching Power Supply, 12VDC, 26.7A, is designed to accept either AC or DC input voltage.
The power supply is compact and has been designed to be cost effective and reliable, with low no-load power consumption and high efficiency. The PSU is suitable for use in a wide variety of applications.
Input Voltage (AC): 85VAC to 305VAC
Input Voltage (DC): 120VDC to 430VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 320.4W
Output Voltage: 12V DC
Output Current: 26.7A
Cooling Method: Forced Air (Built-in Fan)
Power On LED
Output short circuit, over current, over voltage and over temperature protection
Safety Specifications: Approved to IEC/EN/UL62368, GB4943 Safety Standards
The TGR350-12 348W Industrial Enclosed Switching Power Supply, 12VDC, 29A, is designed to accept either AC or DC input voltage.
The power supply is compact and has been designed to be cost effective and reliable, with low no-load power consumption and high efficiency. The PSU is suitable for use in a wide variety of applications.
Selectable Input Voltage (AC): 90VAC to 132VAC/180VAC to 264VAC
Input Voltage (DC): 240VDC to 373VDC
Accepts AC or DC input (dual use of same terminals)
Maximum Power: 348W
Output Voltage: 12V DC
Output Current: 29A
No-load Power Consumption: 0.75W
Cooling Method: Forced Air (Built-in Fan)
Power On LED
Output short circuit, over current, over voltage and over temperature protection
Operating Altitude: up to 5000m
Withstands 300VAC surge input for 5s
Safety Specifications: Approved to IEC/EN/UL62368, EN60335, GB4943 Safety Standards
The Electronics in Meccano Circuits Shop is an affiliate of Rapid Electronics, and any purchases you make help support this website without affecting the price you pay! Any enquiries regarding products or order status should be directed to Rapid Electronics at www.rapidonline.com.
The Circuits Shop
