Economical miniature speaker from Primetone, ideal for use in small portable equipment.

• Fitted with paper cone and ferrite magnets
• Solder connection tags
• Size: 66mm diameter x 21mm deep
• Impedance 8R
• Handling capacity 300mW
• Primetone type 6608F

Economical miniature speaker from Primetone, ideal for use in small portable equipment.

• Fitted with paper cone and ferrite magnets
• Solder connection tags
• Size: 66mm diameter x 21mm deep
• Impedance 64R
• Handling capacity 300mW
• Primetone type 66648F

An ultra slim subminiature speaker from Primetone measuring 40mm in diameter.

• Overall depth of just 9.5mm
• Paper cone and alnico magnet
• Solder connection tags
• Power 0.1W
• Impedance 8R

An ultra slim subminiature speaker from Primetone measuring 40mm in diameter.

• Overall depth of just 9.5mm
• Paper cone and alnico magnet
• Solder connection tags
• Power 0.25W
• Impedance 8R

Weatherproof Mylar 8Ω loudspeaker, ideal for use as a sounder or warning device where a wide frequency response is required. Suitable for use in outdoor environments or where moisture is a problem as the Mylar film core is unaffected by water.

• Max power 0.6W
• Frequency response 350Hz to 4.5kHz
• 66mm diameter
• Manufacturer's part TMR-066F

Weatherproof Mylar 64Ω loudspeaker, ideal for use as a sounder or warning device where a wide frequency response is required. Suitable for use in outdoor environments or where moisture is a problem as the Mylar film core is unaffected by water.

• Max power 0.6W
• Frequency response 350Hz to 4.5kHz
• 66mm diameter

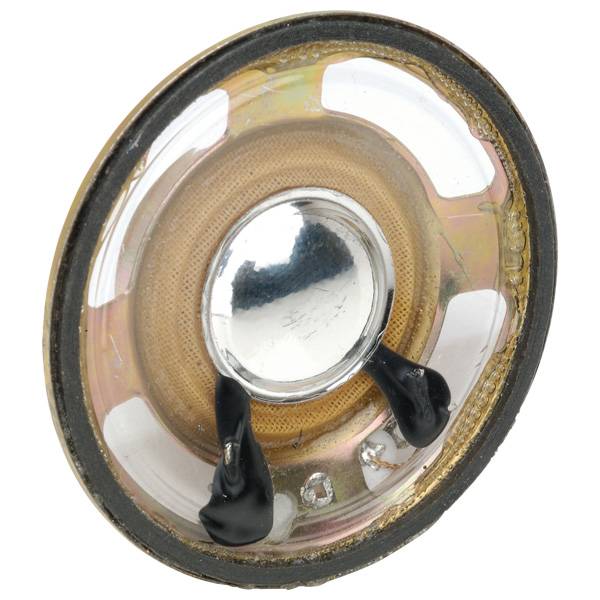

These 45mm miniature speakers feature Mylar cones and are suitable for a wide range of applications such as speech and music modules for greeting cards, etc.

• Speaker diameter: 45mm
• Rated impedance: 32Ω ±15%
• Nominal power: 0.25W
• Maximum power: 0.5W
• Resonant frequency: 500Hz ±25Hz
• Frequency range: 0 to 5.5kHz
• Sound output level @ 0.1W/0.1m: 92dB ±3dB
• Overall thickness: 5.8mm
• Operating temperature: –20°C to +60°C
• Storage temperature: –30°C to +70°C
• Weight: 12g
• Low profile
• High sound output level

These 50mm miniature speakers feature Mylar cones and are suitable for a wide range of applications such as speech and music modules for greeting cards, etc.

• Speaker diameter: 50mm
• Rated impedance: 8Ω ±15%
• Nominal power: 1W
• Maximum power: 1.5W
• Resonant frequency: 350Hz ±20Hz
• Frequency range: 0 to 20kHz
• Sound output level @ 0.1W/0.1m: 94dB ±3dB
• Overall thickness: 7.6mm
• Operating temperature: –10°C to +40°C
• Storage temperature: –20°C to +60°C
• Weight: 13.2g
• Low profile
• High sound output level

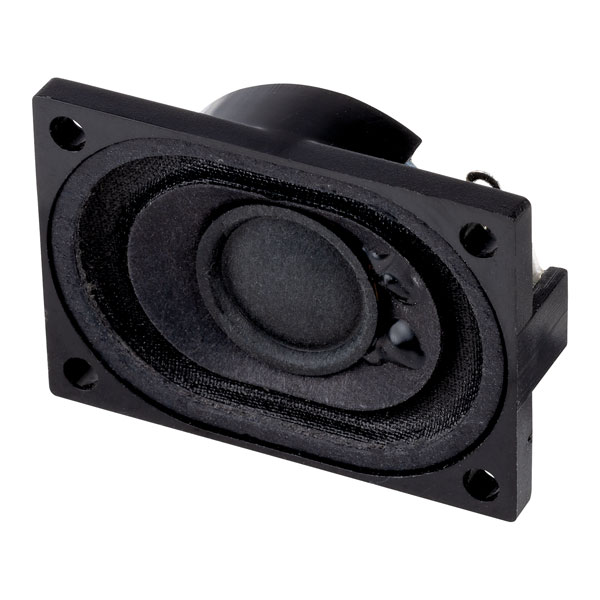

A miniature low-profile, rectangular 8Ω loudspeaker with high power handling capacity.

• Rated impedance: 8Ω ±15%
• Nominal power: 2W
• Maximum power: 3W
• Resonant frequency: 400Hz ±20%
• Frequency range: 200Hz to 20kHz
• Sound output level: 93dB ±3dB @ 1m
• Dimensions: 40 x 20 x 5.8mm
• Operating temperature: –20°C to +60°C
• Storage temperature: –30°C to +70°C
• Weight: 7.6g

A miniature low-profile, rectangular 4Ω loudspeaker with high power handling capacity.

• Rated impedance: 4Ω ±15%
• Nominal power: 2W
• Maximum power: 3W
• Resonant frequency: 400Hz ±20%
• Frequency range: 200Hz to 20kHz
• Sound output level: 93dB ±3dB @1m
• Dimensions: 40 x 20 x 5.8mm
• Operating temperature: –20°C to +60°C
• Storage temperature: –30°C to +70°C
• Weight: 7.6g

A miniature loudspeaker that has mounting lugs and flying leads.

• Impedance: 8Ω
• Power: 2W
• High sound pressure level
• Frequency range up to 20kHz
• Mounting lugs hole ø5.8mm
• Flying lead length 180mm
• Molex connector

A miniature 4Ω loudspeaker that features high power handling capacity.

• Rated impedance: 4Ω ±15%
• Nominal power: 2W
• Maximum power: 4W
• Resonant frequency: 380Hz ± 20%
• Frequency range: Up to 20kHz
• Sound output level: 84dB
• Dimensions: 40 x 28.3 x 12mm
• ABS housing
• Weight: 13g

This miniature ultra-slim loudspeaker is just 10mm in thickness and has a paper cone.

• Impedance: 8Ω
• Paper cone
• Nominal output power 0.2W
• 50mm diameter
• 10mm depth
• Suitable for a wide range of applications
• Wide frequency response enables use for speech, music or high frequency alarm output
• Solder tag termination
• Fitted with flange to assist mounting

This miniature ultra-slim loudspeaker is just 11mm in thickness and has a paper cone.

• Impedance: 64Ω
• Paper cone
• Nominal output power 0.2W
• 50mm diameter
• 11mm depth
• Suitable for a wide range of applications
• Wide frequency response enables use for speech, music or high frequency alarm output
• Solder tag termination
• Fitted with flange to assist mounting

Wide range speakers are suitable for speech, music and indication purposes. Ultra-slim design allows use where space is at a premium.

This miniature ultra-slim loudspeaker is just 11mm in thickness and has a mylar cone.

• Impedance: 8Ω
• Mylar cone
• Nominal output power 0.2W
• 50mm diameter
• 11mm depth
• Suitable for a wide range of applications
• Wide frequency response enables use for speech, music or high frequency alarm output
• Solder tag termination
• Fitted with flange to assist mounting

This miniature ultra-slim loudspeaker is just 11mm in thickness and has a mylar cone.

• Impedance: 64Ω
• Mylar cone
• Nominal output power 0.2W
• 50mm diameter
• 11mm depth
• Suitable for a wide range of applications
• Wide frequency response enables use for speech, music or high frequency alarm output
• Solder tag termination
• Fitted with flange to assist mounting

A high quality, good sounding full-range loudspeaker.

• Impedance: 8Ω
• Power: 10W
• Frequency response: 150Hz to 3.2kHz
• Resonant frequency: 150Hz
• Sound pressure level: 97dB
• Suitable for all applications
• Foam edged paper cone with chrome HF dome
• Diameter: 78mm
• Weight 400g

This miniature ultra slim loudspeaker is just 11mm in thickness.

• Mylar cones
• Suitable for a wide range of applications
• 50mm diameter
• 11mm depth
• Wide frequency response enables the speakers to be used for speech, music or high frequency alarm output
• Solder tag termination
• Fitted with flange to assist mounting
• Power 0.2W
• 64Ω

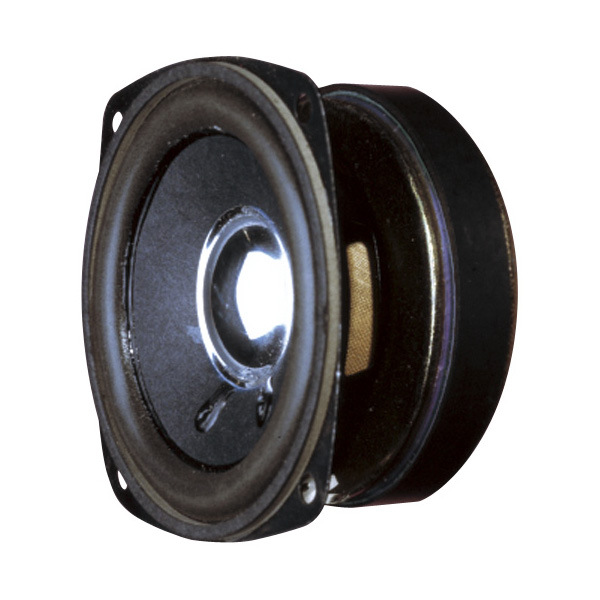

A quality and good sounding full range black loudspeaker.

• Suitable for all applications
• Foam edged paper cone with chrome HF dome
• Impedance 8R
• Power 10W
• 120Hz to 16kHz frequency response
• 120Hz resonant frequency
• 88dB sound pressure level
• 78mm diameter
• Weight 400g

These miniature ultra slim 8Ω loudspeakers are just 17mm thick and are suitable for a wide range of applications.

• Paper cones
• 50mm diameter
• Wide frequency response enables the speakers to be used for speech, music or high frequency alarm output
• Solder tag termination
• Fitted with flange to assist mounting

This 8cm (3.3in.) full-range speaker has a waterproof polypropylene cone and gives good bass reproduction and has a balanced frequency response.

Typical applications include narrow network column speakers, monitoring speakers, electronic musical instruments, ceiling-mounted speakers in railway carriages and buses, etc.

• Nominal impedance 8Ω
• Polypropylene cone
• Metal basket
• Rated power: 10W
• Maximum power: 15W
• Frequency response: 80 to 20,000Hz
• Protection rating: IP64 (front side) when built into a sealed enclosure
• Net weight: 240g
• Visaton type 2000

These Visaton 8cm 4Ω hi-fi fullrange speakers are suitable as effect channel speakers and mini subwoofer/satellite systems. Due to their small size they are ideal for use as control speakers for electronic devices. Suitable for use as ceiling-mounted speakers in railway carriages, mini Hi-Fi systems and model construction.

• Small size
• Protective grille 1138 available (order code 35-2959)

These Visaton 8cm 8Ω hi-fi fullrange speakers are suitable as effect channel speakers and mini subwoofer/satellite systems. Due to their small size they are ideal for use as control speakers for electronic devices. Suitable for use as ceiling-mounted speakers in railway carriages, mini Hi-Fi systems and model construction.

• Small size
• Protective grille 1138 available (order code 35-2959)

These Visaton 8cm 4Ω full-range speakers have a good bass reproduction, balanced frequency response and high efficiency. They are especially suitable as a built-in speaker for music reproduction and as a driver for 100V network column speakers. Typical applications include: narrow network column speakers, control speakers for electronic devices, ceiling-mounted speakers in railway carriages and buses and electronic musical instruments.

• Small size
• Protective grille 1138 available (order code 35-2959)

These Visaton 8cm 8Ω full-range speakers have a good bass reproduction, balanced frequency response and high efficiency. They are especially suitable as a built-in speaker for music reproduction and as a driver for 100V network column speakers. Typical applications include: narrow network column speakers, control speakers for electronic devices, ceiling-mounted speakers in railway carriages and buses and electronic musical instruments.

• Small size
• Protective grille 1138 available (order code 35-2959)

High quality 4 Ohm 6.5cm full range speaker from Visaton, suitable for use with narrow network column speakers, control speaker for electronic devices, in model construction and with electronic musical instruments.

• Excellent treble reproduction
• Outstanding high efficiency for its small size
• Waterproof cone
• Colour: black
• Suitable as a built-in speaker for music reproduction
• CE approved

High quality 8 Ohm 6.5cm full range speaker from Visaton, suitable for use with narrow network column speakers, control speaker for electronic devices, in model construction and with electronic musical instruments.

• Excellent treble reproduction
• Outstanding high efficiency for its small size
• Waterproof cone
• Colour: black
• Suitable as a built-in speaker for music reproduction
• CE approved

High quality black 10cm full range speaker from Visaton with good bass reproduction.

• Impedance 4Ω
• Power 30W
• Galvanised lacquered basket
• Balanced frequency response
• High efficiency
• Suitable as a built-in speaker for music reproduction
• Typical applications include 100V network column speakers, ceiling mounted speakers in transport, built-in car Hi-Fi and electronic music instruments
• CE approved

High quality black 10cm full range speaker from Visaton with good bass reproduction.

• Impedance 8Ω
• Power 30W
• Galvanised lacquered basket
• Balanced frequency response
• High efficiency
• Suitable as a built-in speaker for music reproduction
• Typical applications include 100V network column speakers, ceiling mounted speakers in transport, built-in car Hi-Fi and electronic music instruments
• CE approved

The Visaton R 10 S 4Ω is a 10cm (4 inch) full range speaker with high efficiency and balanced frequency response. Especially suitable as control speaker for electronic devices. Equivalent to model R 10 S TE, but with connectors 5.2 x 0.5 mm (+) and 2.8 x 0.5 mm (-).

Typical applications include control speakers for electronic devices, ceiling-mounted speakers in railway carriages and model construction.

• Protective grille No. 4640 (order code 35-2961)

The Visaton R 10 S 8Ω is a 10cm (4 inch) full range speaker with high efficiency and balanced frequency response. Especially suitable as control speaker for electronic devices. Equivalent to model R 10 S TE, but with connectors 5.2 x 0.5 mm (+) and 2.8 x 0.5 mm (-).

Typical applications include control speakers for electronic devices, ceiling-mounted speakers in railway carriages and model construction.

• Protective grille No. 4640 (order code 35-2961)

The Visaton SL87WPM 8Ω is a waterproof full range speaker with a 8cm (3.3 inch) transparent plastic cone and a rubber sealing ring. This speaker has a high mean sound pressure level and compact design and has been optimised for both voice and signal output. Typical applications include use as a control speaker for electronic devices and outdoor sound reinforcement systems.

• Impedance 8Ω
• Cutout diameter 80mm
• Frame size 83 x 83mm
• Overall size 85.5 x 85.5mm

This 5.8cm (2.3in.) full-range speaker has a coated paper cone, rubber surround, squared metal basket with 4 mounting holes and a rubber gasket.

The speaker has a very linear and wide frequency response and low resonant frequency making it suitable for a wide range of applications, including Hi-Fi.

• Impedance: 4Ω
• Rated power: 10W
• Maximum power: 12W
• Frequency response: 120 to 20000Hz
• Net weight: 130g
• Protection rating: IP64 (front side) when built into a sealed enclosure
• Visaton type 2204

This 5.8cm (2.3in.) full-range speaker has a coated paper cone, rubber surround, squared metal basket with 4 mounting holes and a rubber gasket.

The speaker has a very linear and wide frequency response and low resonant frequency making it suitable for a wide range of applications, including Hi-Fi.

• Impedance: 8Ω
• Rated power: 10W
• Maximum power: 12W
• Frequency response: 120 to 20000Hz
• Net weight: 130g
• Protection rating: IP64 (front side) when built into a sealed enclosure
• Visaton type 2205

This black full range speaker from Visaton is fitted with a square basket, soft surround and special light weight cone.

• Balanced frequency response above 250Hz
• Brilliant highs and good omnidirectional sound distribution
• Suitable as midrange driver in column speaker systems
• Ideal for Hi-Fi applications as well as for 100V sound reinforcement systems
• Suitable for model construction and as control speaker for electronic devices

This 5cm (2in.) full range speaker from Visatron has a black metal basket and two fixing lugs. Due to its low resonant frequency, the frequency response starts at 120Hz making it suitable as a full range or mid range driver in speaker systems for Hifi, small PA and 100V PA systems.

With its slim construction, it is also suitable as a control speaker in electronic devices.

• Rated power: 5W
• Maximum power: 8W
• Nominal impedance: 8Ω
• Frequency response: 120 to 20,000Hz
• Rubber gasket
• Waterproof design with PET cone and Mylar dust-cap
• UV-resistant
• Non-corrodible metal basket
• Net weight 140g
• Protection rating: IP65 (front side) when built into a sealed enclosure
• Visaton type 2236

A 1.4 x 2.5cm (0.5in. x 1in.) miniature speaker with a plastic diaphragm and rectangular plastic basket.

Its compact dimensions make it suitable for signal output in equipment, where space is at a premium.

• Rated power: 1W
• Maximum power: 1.5W
• Nominal impedance: 8Ω
• Frequency response: 500 to 20,000Hz
• Connection via soldering points on rear
• Protection rating: IP64 (front side) when built into a sealed enclosure
• Net weight: 2.5g
• Visaton type 2812

A waterproof 4cm (1.6in) square miniature speaker from Visaton featuring a plastic diaphragm and square metal basket with 4 mounting holes. Its compact dimensions make it suitable for signal output in machines and other equipment where space is at a premium. IP protected on front side when built into a sealed enclosure, making it suitable for outside and harsh environments.

• Colour: black
• Metal basket
• Plastic membrane (Mylar)
• Manufacturer's part 2846

A 5cm (2in.) miniature speaker with a metal basket and plastic diaphragm making it suitable for use both indoors and outdoors.

Due to its compact dimensions it is suitable for voice and signal output in machines and other equipment where space is at a premium.

• Diaphragm: Mylar
• Functionally at cold according to EN 60068-2-1/EN 50155
• Metal basket
• UV-resistant
• Rated power: 2W
• Maximum power: 3W
• Nominal impedance: 50Ω
• Frequency response: 250 to 12,000Hz
• Protection rating: IP65 (front side) when built into a sealed enclosure
• Net weight 50g
• Visaton type 2899

A high quality 5cm round speaker particularly well suited to outdoor applications and where ambient conditions are generally unfavourable.

• Magnetically shielded
• Plastic diaphragm and metal basket
• Full-range driver with good efficiency
• Broad frequency response and good voice reproduction
• Extremely small size due to a neodymium magnet system
• Typical applications include electronic devices and outdoor systems
• CE approved

This Visaton K36 WP 8Ω 3.2cm (1.3 inch) miniature speaker has a wide and balanced frequency response and very good low range reproduction. The speaker is fitted with a powerful Neodymium driver.

It is suitable for applications where slim construction and good music and speech reproduction are requested. Typical applications include flat screens (TV and PC), info terminals, other compact devices speech and music reproduction. Being weatherproof, it is particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).

This Visaton K36 WP 50Ω 3.2cm (1.3 inch) miniature speaker has a wide and balanced frequency response and very good low range reproduction. The speaker is fitted with a powerful Neodymium driver.

It is suitable for applications where slim construction and good music and speech reproduction are requested. Typical applications include flat screens (TV and PC), info terminals, other compact devices speech and music reproduction. Being weatherproof, it is particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).

A high quality 8 Ohm 5cm full range speaker from Visaton particularly well suited to outdoor applications.

• Moulded plastic cone and plastic basket
• Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads
• Broad frequency response and good voice reproduction
• Typical applications include outdoor systems and electronic devices
• CE approved

This quality 6.4cm round 8Ω speaker from Visaton is particularly well suited to outdoor applications.

• Moulded plastic cone, plastic basket and grill
• Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads
• Broad frequency response and good voice reproduction
• Supplied in black
• Typical applications include monitoring device for electronic devices and outdoor systems
• CE approved

A 13cm (5in) round full-range speaker from Visaton. Includes a balanced frequency response from 120Hz, high efficiency and excellent voice reproduction quality, making it suitable for use in larger scale PA arrays or in smaller monitor speakers.

• With tweeter dome
• Temperature range: -25 to 70°C
• Cutout: Ø 110mm
• Manufacturer's part 3011

A 16cm (6.5in) round full-range speaker from Visaton. Includes a balanced frequency response from 80Hz and high efficiency, making it suitable as a full-range unit for vocal or guitar monitors, or as a mid-range unit for full-scale or musicians' PA systems. Includes holes for fitting a transformer to magnet or basket (TR 10.16 or TR 6.8) for use in a 100 V-network.

• With tweeter cone
• Temperature range: -25 to 70°C
• Cutout: Ø 146mm
• Manufacturer's part 3017

10cm (4in.) full range speaker with tweeter cone and European standard basket.

The speaker offers simple fitting in vehicles with cut-outs for 10cm speakers.

• Impedance: 4Ω
• Typical applications include vehicles, mobile homes, etc.
• Moisturised cone
• Metal basket
• Rated power: 20W
• Maximum power: 30W
• Frequency response: 95 to 22000Hz
• Net weight: 340g
• Visaton type 4898

10cm (4in.) full range speaker with tweeter cone and European standard basket.

The speaker offers simple fitting in vehicles with cut-outs for 10cm speakers.

• Impedance: 8Ω
• Typical applications include vehicles, mobile homes, etc.
• Moisturised cone
• Metal basket
• Rated power: 20W
• Maximum power: 30W
• Frequency response: 95 to 22000Hz
• Net weight: 340g
• Visaton type 4899

The Visaton F 8 SC is a magnetically shielded 8cm (3,3 inch) full-range driver with a balanced frequency response. It is particularly suitable for smaller multimedia applications and very good value for money.

Typical applications include multimedia systems, video monitoring screens, TVs and computer terminals.

• 8Ω
• Moisturised cone
• Metal basket
• Magnetically shielded
• Protective grille No. 1138 (order code 35-2961)

A magnetically shielded 4 x 7cm full-range driver from Visaton, featuring a highly compact construction due to the neodymium magnet system. Includes a balanced frequency response from 220Hz and good omnidirectional sound distribution, making it suitable for music and voice reproduction in multimedia applications such as TVs, PCs etc.

• Ideal for video monitoring screens, TVs and control speaker for electronic devices
• Moisturised cone
• Metal basket
• Size: 4 x 7cm (1.6 x 2.8in)
• Manufacturer's part 8048
