A 12-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 115mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

A 2-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 15mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

A 3-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 25mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

A 4-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 35mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

A 5-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 45mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

A 6-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 55mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

A 7-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 65mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

A 8-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 75mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

A 9-pole low profile 10mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.

• Length 85mm
• 90° Mounting
• Rating 16A 300V
• Double interlocking modules
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Very high power 2-pole rising clamp terminal block from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

• 2 and 3-pole versions have a double interlocking mechanism for increased strength
• Moulded in UL94-V0 flame-retardant PA66
• Captive screws
• Professional rising clamp terminals
• Wire capacity 10mm² (20 to 6AWG)
• Pitch 10.16mm
• Current rating 52A UL, 57A VDE
• Length 20.3mm
• Width 18.7mm
• Height 29.6mm
• Manufacturer's part CTPB77VP/2

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Very high power 3-pole rising clamp terminal block from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

• 2 and 3-pole versions have a double interlocking mechanism for increased strength
• Moulded in UL94-V0 flame-retardant PA66
• Captive screws
• Professional rising clamp terminals
• Wire capacity 10mm² (20 to 6AWG)
• Pitch 10.16mm
• Current rating 52A UL, 57A VDE
• Length 30.5mm
• Width 18.7mm
• Height 29.6mm
• Manufacturer's part CTPB77VP/3

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Very high power 4-pole rising clamp terminal block from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

• Moulded in UL94-V0 flame-retardant PA66
• Captive screws
• Professional rising clamp terminals
• Wire capacity 10mm² (20 to 6AWG)
• Pitch 10.16mm
• Current rating 52A UL, 57A VDE
• Length 40.6mm
• Width 18.7mm
• Height 29.6mm
• Manufacturer's part CTPB77VP/4

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Very high power 5-pole rising clamp terminal block from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

• Moulded in UL94-V0 flame-retardant PA66
• Captive screws
• Professional rising clamp terminals
• Wire capacity 10mm² (20 to 6AWG)
• Pitch 10.16mm
• Current rating 52A UL, 57A VDE
• Length 51mm
• Width 18.7mm
• Height 29.6mm
• Manufacturer's part CTPB77VP/5

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Very high power 6-pole rising clamp terminal block from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

• Moulded in UL94-V0 flame-retardant PA66
• Captive screws
• Professional rising clamp terminals
• Wire capacity 10mm² (20 to 6AWG)
• Pitch 10.16mm
• Current rating 52A UL, 57A VDE
• Length 61mm
• Width 18.7mm
• Height 29.6mm
• Manufacturer's part CTPB77VP/6

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Standard profile screw terminal block from the CamdenBoss CTB2000 Series, with 4 poles, 10mm pitch.

• 24A rating
• End stackable
• Moulded in grey UL94-V0 flame retardant Lexan
• Wire protector terminals
• 2.5mm sq cable entry
• CUL, VDE and IMQ approved
• Guided pin alignment
• Captive screw
• Anti solder wicking terminals
• Manufacturer's part CTB2000/4

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

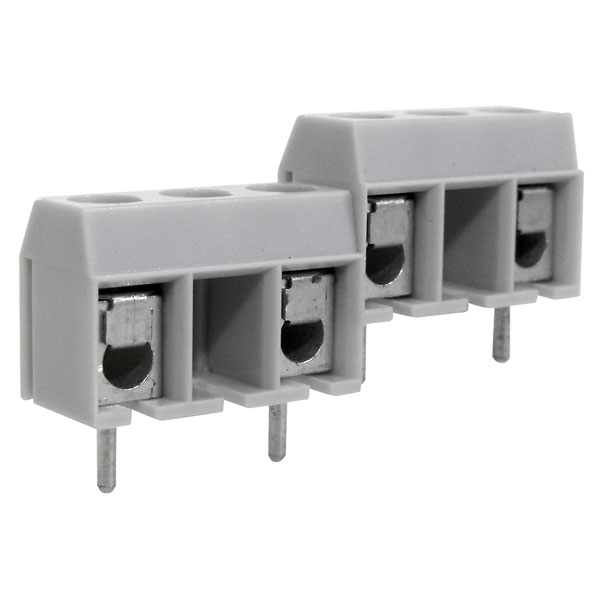

Standard profile 90° screw terminal blocks from the CamdenBoss CTB2050 Range, 10mm pitch, with 2 poles.

The 2-pole terminal blocks are interlocking.

• 24A current rating
• Moulded in grey UL94-V0 flame retardant Lexan
• Wire protector terminals
• 2.5mm² cable entry
• Guided pin alignment
• Captive screw
• Anti solder wicking terminals
• UL, VDE and IMQ approved
• Manufacturer's part CTB2050/2

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Standard profile commercial screw terminal blocks from the CamdenBoss CTB2500 Series, 10mm pitch, with 2 poles.

These terminals are available from Rapid in a range of sizes from 2-pole to 5-pole.

• 24A current rating
• Moulded in grey UL94-V0 flame retardant Lexan
• 4mm² cable entry
• PCB mounting
• Wire protector terminals
• Guided pin alignment
• Captive screws
• Anti solder wicking terminals
• UL, VDE and IMQ approved
• Manufacturer's part CTB2500/2

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Standard profile commercial screw terminal blocks from the CamdenBoss CTB2500 Series, 10mm pitch, with 3 poles.

These terminals are available from Rapid in a range of sizes from 2-pole to 5-pole.

• 24A current rating
• Moulded in grey UL94-V0 flame retardant Lexan
• 4mm² cable entry
• PCB mounting
• Wire protector terminals
• Guided pin alignment
• Captive screws
• Anti solder wicking terminals
• UL, VDE and IMQ approved
• Manufacturer's part CTB2500/3

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Low profile commercial screw terminal block from the CamdenBoss CTB55VN Series, 10mm pitch, with 4 poles.

There is a range of these end-stackable terminal blocks available from Rapid, from 2-pole to 6-pole.

• End stackable
• Moulded in green UL94-V0 flame retardent PA
• Wire protector terminals
• 2.5mm² cable entry
• Guided pin alignment
• Captive screws
• Anti solder wicking terminal
• UL, VDE and IMQ approvals
• Manufacturer's part CTB55VN/4

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Low profile commercial screw terminal block from the CamdenBoss CTB55VN Series, 10mm pitch, with 6 poles.

There is a range of these end-stackable terminal blocks available from Rapid, from 2-pole to 6-pole.

• End stackable
• Moulded in green UL94-V0 flame retardent PA
• Wire protector terminals
• 2.5mm² cable entry
• Guided pin alignment
• Captive screws
• Anti solder wicking terminal
• UL, VDE and IMQ approvals
• Manufacturer's part CTB55VN/6

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Low profile screw terminals for use with PCB terminal blocks, part of the CamdenBoss CTB6000 Series, 10mm pitch, with 3 poles.

The 3-pole to 12-pole blocks are end stackable.

• 13.5A current rating
• Test probe facility
• Moulded in grey UL94-V0 flame retardant Lexan
• Wire protector terminals
• 1.5mm² cable entry
• Guided pin alignment
• Captive screw
• UL, VDE and IMQ approved
• Manufacturer's part CTB6000/3

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Very high power rising clamp terminal block, part of the CamdenBoss CTB77VP series, with 2 poles, 10.16mm pitch. Double interlocking mechanism for increased strength.

• 57A current rating, 630V voltage rating
• Rising clamp termination
• PCB mounting, 1 row
• Nickel plated brass contact material
• Polyamide 66 housing material, grey colour
• Zinc plated steel clamp
• UL94-V0 flame retardant moulding
• 10mm² cable entry
• Guided pin alignment
• M4 zinc colour passivated steel captive screws
• Manufacturer's part CTB77VP/2

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Very high power rising clamp terminal block, part of the CamdenBoss CTB77VP series, with 3 poles, 10.16mm pitch. Double interlocking mechanism for increased strength.

• 57A current rating, 630V voltage rating
• Rising clamp termination
• PCB mounting, 1 row
• Nickel plated brass contact material
• Polyamide 66 housing material, grey colour
• Zinc plated steel clamp
• UL94-V0 flame retardant moulding
• 10mm² cable entry
• Guided pin alignment
• M4 zinc colour passivated steel captive screws
• Manufacturer's part CTB77VP/3

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Professional terminal block from the CamdenBoss CTB8000 Series with 18 poles, 10mm pitch.

Flexible strip can easily be cut to the required number of poles.

• 10mm pitch
• 22A rating
• PCB mounting, 1 row
• Rising clamp termination
• Moulded in grey flame retardant UL94V-0 Lexan
• 4mm sq cable entry
• CUL, VDE and IMQ approved
• Guided pin alignment
• Captive screws
• Anti solder wicking terminals
• Manufacturer's part CTB8000/18

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Professional terminal block from the CamdenBoss CTB8000 Series with 3 poles, 10mm pitch.

• 10mm pitch
• 22A rating
• PCB mounting, 1 row
• Rising clamp termination
• Moulded in grey flame retardant UL94V-0 Lexan
• 4mm sq cable entry
• CUL, VDE and IMQ approved
• Guided pin alignment
• Captive screws
• Anti solder wicking terminals
• Manufacturer's part CTB8000/3

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Low profile commercial screw terminal block from the CamdenBoss CTB55VN Series, 10mm pitch, with 2 poles.

There is a range of these end-stackable terminal blocks available from Rapid, from 2-pole to 6-pole.

• End stackable
• Moulded in green UL94-V0 flame retardent PA
• Wire protector terminals
• 2.5mm² cable entry
• Guided pin alignment
• Captive screws
• Anti solder wicking terminal
• UL, VDE and IMQ approvals
• Manufacturer's part CTB55VN/2

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Low profile commercial screw terminal block from the CamdenBoss CTB55VN Series, 10mm pitch, with 3 poles.

There is a range of these end-stackable terminal blocks available from Rapid, from 2-pole to 6-pole.

• End stackable
• Moulded in green UL94-V0 flame retardent PA
• Wire protector terminals
• 2.5mm² cable entry
• Guided pin alignment
• Captive screws
• Anti solder wicking terminal
• UL, VDE and IMQ approvals
• Manufacturer's part CTB55VN/3

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Low profile commercial screw terminal block from the CamdenBoss CTB55VN Series, 10mm pitch, with 5 poles.

There is a range of these end-stackable terminal blocks available from Rapid, from 2-pole to 6-pole.

• End stackable
• Moulded in green UL94-V0 flame retardent PA
• Wire protector terminals
• 2.5mm² cable entry
• Guided pin alignment
• Captive screws
• Anti solder wicking terminal
• UL, VDE and IMQ approvals
• Manufacturer's part CTB55VN/5

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

The WAGO 1-Way PCB Spring Terminal Block 10-10.16mm 16A Grey is a modular PCB terminal with 1 pole/2 solder pins and locking side pin spacing of 10-10.16mm/0.4in. Connectable single terminals for WAGO Series 256 PCB's.

The CAGE CLAMP® connection technique allows stripped solid and ferruled conductors to be pushed in. With its space saving design, the terminal block is up to 30% smaller than standard terminal blocks and with a conductor entry angle of less than 15° which allows easier installation in smaller spaces.

• Mounting example: 10 x 73 04 69-07 with end plate 73 05 35-07
• Cage clamp connection
• Grey colour
• 13 x 10 x 14mm (H x W x D)

Stackable single-pole PCB terminal block from WAGO with CAGE CLAMP® connection and screwdriver actuation.

• 45° conductor entry angle permits a wide range of applications and wiring options
• Commoning option
• Colour: blue
• Pitch 5/5.08mm
• Current rating 24A
• Height 17mm
• Depth 14mm
• Width 7.2mm
• Manufacturer's part 236-744

Stackable single-pole PCB terminal block from WAGO with CAGE CLAMP® connection and screwdriver actuation.

• 45° conductor entry angle permits a wide range of applications and wiring options
• Commoning option
• Colour: orange
• Pitch 5/5.08mm
• Current rating 24A
• Height 17mm
• Depth 14mm
• Width 7.2mm
• Manufacturer's part 236-746

Stackable single-pole PCB terminal block from WAGO with CAGE CLAMP® connection and screwdriver actuation, suitable for Ex-i applications.

• 45° conductor entry angle permits a wide range of applications and wiring options
• Commoning option
• Pitch 7.5/7.62mm
• Colour: blue
• Current rating 24A
• Height 17mm
• Depth 14mm
• Width 9.7mm
• Manufacturer's part 236-754

Stackable single-pole PCB terminal block from WAGO with CAGE CLAMP® connection and screwdriver actuation.

• 45° conductor entry angle permits a wide range of applications and wiring options
• Commoning option
• Pitch 7.5/7.62mm
• Colour: orange
• Current rating 24A
• Height 17mm
• Depth 14mm
• Width 9.7mm
• Manufacturer's part 236-756

Stackable single-pole PCB terminal block from WAGO with CAGE CLAMP® connection and screwdriver actuation.

• 45° conductor entry angle permits a wide range of applications and wiring options
• Commoning option
• Pitch 10/10.16mm
• Current rating 24A
• Colour: blue
• Height 17mm
• Depth 14mm
• Width 12.2mm
• Manufacturer's part 236-764

Stackable single-pole PCB terminal block from WAGO with CAGE CLAMP® connection and screwdriver actuation.

• 45° conductor entry angle permits a wide range of applications and wiring options
• Commoning option
• Pitch 10/10.16mm
• Current rating 24A
• Colour: orange
• Height 17mm
• Depth 14mm
• Width 12.2mm
• Manufacturer's part 236-766

High current 2-pole PCB terminal blocks from WAGO with lever actuation.

• Tool-free opening and closing
• CAGE CLAMP® connection
• 30° entry
• Number of poles: 2
• Number of potentials: 2
• Pitch 10mm
• Current rating 76A
• Colour: grey
• Height 33.3mm
• Depth 30mm
• Width 21.5mm
• Manufacturer's part 2716-102

High current 3-pole PCB terminal blocks from WAGO with lever actuation.

• Tool-free opening and closing
• CAGE CLAMP® connection
• 30° entry
• Number of poles: 3
• Number of potentials: 3
• Pitch 10mm
• Current rating 76A
• Colour: grey
• Height 33.3mm
• Depth 30mm
• Width 31.5mm
• Manufacturer's part 2716-103

High current 4-pole PCB terminal blocks from WAGO with lever actuation.

• Tool-free opening and closing
• CAGE CLAMP® connection
• 30° entry
• Number of poles: 4
• Number of potentials: 4
• Pitch 10mm
• Current rating 76A
• Colour: grey
• Height 33.3mm
• Depth 30mm
• Width 41.5mm
• Manufacturer's part 2716-104

High current 5-pole PCB terminal blocks from WAGO with lever actuation.

• Tool-free opening and closing
• CAGE CLAMP® connection
• 30° entry
• Number of poles: 5
• Number of potentials: 5
• Pitch 10mm
• Current rating 76A
• Colour: grey
• Height 33.3mm
• Depth 30mm
• Width 51.5mm
• Manufacturer's part 2716-105

High current 6-pole PCB terminal blocks from WAGO with lever actuation.

• Tool-free opening and closing
• CAGE CLAMP® connection
• 30° entry
• Number of poles: 6
• Number of potentials: 6
• Pitch 10mm
• Current rating 76A
• Colour: grey
• Height 33.3mm
• Depth 30mm
• Width 61.5mm
• Manufacturer's part 2716-106

High current 8-pole PCB terminal blocks from WAGO with lever actuation.

• Tool-free opening and closing
• CAGE CLAMP® connection
• 30° entry
• Number of poles: 8
• Number of potentials: 8
• Pitch 10mm
• Current rating 76A
• Colour: grey
• Height 33.3mm
• Depth 30mm
• Width 81.5mm
• Manufacturer's part 2716-108

Snap-fit end plate from WAGO.

• Colour: grey
• Height 19mm
• Width 1.5mm
• Depth 22.9mm
• Manufacturer's part 745-100

Snap-fit flanged end plate from WAGO.

• Colour: grey
• Height 19mm
• Width 7.9mm
• Depth 22.9mm
• Manufacturer's part 745-140

Snap-fit end plate from WAGO.

• Colour: grey
• Height 23mm
• Width 1.6mm
• Depth 29.1mm
• Manufacturer's part 745-300

Snap-fit end plate from WAGO.

• Colour: grey
• Height 27mm
• Width 1.7mm
• Depth 33.4mm
• Manufacturer's part 745-500

The WAGO 2-Way PCB Spring Terminal Block 7.5mm 57A Grey has 4 solder pins/pole 2, pin spacing 10mm/0.394in without fixing flange. Modular single terminals from the WAGO 745 Series with spring-cage connection

• 745-502/006-000
• Grey colour
• CAGE CLAMP®S Connection
• 27 x 21.7 x 33.4mm (H x W x D)

The WAGO 1-Way PCB Spring Terminal Block 7.5mm 57A Grey is a modular PCB terminal block with 4 solder pins/pole 1, pole pin spacing 10mm/0.394in. Modular single terminals from the WAGO 745 Series with spring-cage connection.

• 745-851/006-000
• Grey colour
• CAGE CLAMP®S Connection
• 27 x 10 x 33.4mm (H x W x D)

Stackable 1-pole PCB terminal block from WAGO with 45° entry angle.

• Screwdriver-actuated CAGE CLAMP® for custom terminal strip assemblies
• Comb-style jumper bars for commoning and distributing potentials
• Four solder pins for high mechanical stability
• Integrated testing tap
• Marker slot for miniature WSB and WMB markers
• Pitch 10mm
• Rated current 76A
• Colour: blue
• Height 33.5mm
• Width 11.5mm
• Depth 33.4mm
• Manufacturer's part 745-854/006-000

Stackable 1-pole PCB terminal block from WAGO with 45° entry angle.

• Screwdriver-actuated CAGE CLAMP® for custom terminal strip assemblies
• Comb-style jumper bars for commoning and distributing potentials
• Four solder pins for high mechanical stability
• Integrated testing tap
• Marker slot for miniature WSB and WMB markers
• Pitch 10mm
• Rated current 76A
• Colour: green/yellow
• Height 33.5mm
• Width 11.5mm
• Depth 33.4mm
• Manufacturer's part 745-857/006-000
