A snap-in 4-pole socket without strain relief from WAGO.

• 100% protected against mismating
• Coding Q - for "clean earth" applications
• Pitch 10mm
• Current rating 32A
• Colour: green
• Height 18.5mm
• Width 45.5mm
• Depth 37.5mm
• Manufacturer's part 770-2324

Strain relief housing with 2 poles from WAGO suitable for single cable with 5 to 9mm diameter.

• Colour: black
• Made from Polyamide 66
• Height 15.9mm
• Width 24.6mm
• Depth 45mm
• Manufacturer's part 770-502/042-000

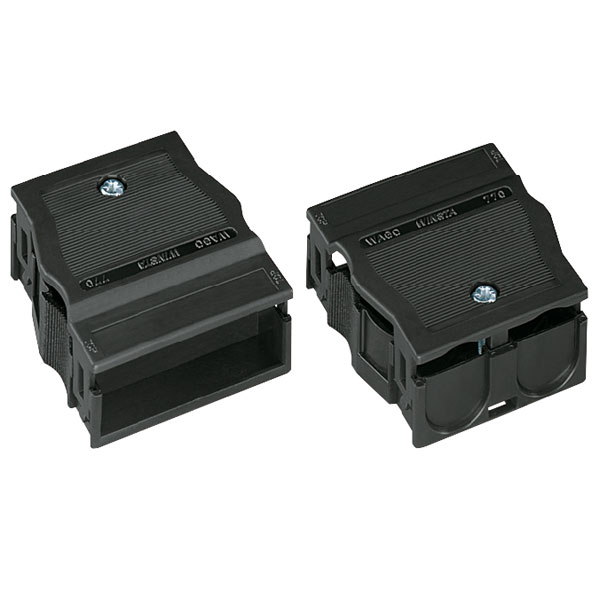

Strain relief housing with 4 poles from WAGO suitable for single cable with 5 to 9mm diameter.

• Colour: black
• Made from Polyamide 66
• Height 17mm
• Width 44.6mm
• Depth 50mm
• Manufacturer's part 770-504/023-000

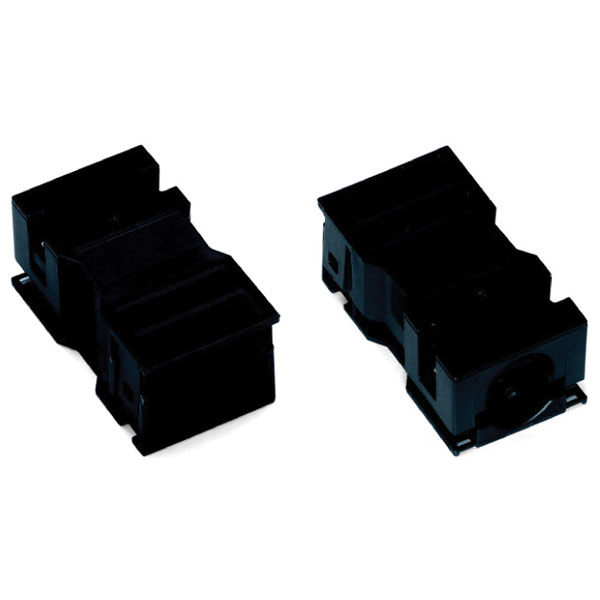

Intermediate 3-pole coupler from WAGO with 1 plug and 1 socket.

• 100% protected against mismating
• Rated current 25A
• Pitch 10mm
• Number of poles 3
• Number of potentials 3
• Colour: black
• Polyamide 66 insulation
• Height 11.6mm
• Width 30mm
• Depth 40mm
• Manufacturer's part 770-603

A 3-pole T-distribution connector from WAGO with 1 plug and 2 sockets.

• 100% protected against mismating
• Rated current 25A
• Pitch 10mm
• Number of poles 3
• Number of potentials 3
• Colour: black
• Polyamide 66 insulation
• Height 36.1mm
• Width 34mm
• Depth 48.9mm
• Manufacturer's part 770-606

A 3-pole distribution connector from WAGO with 1 plug and 3 sockets.

• 100% protected against mismating
• Rated current 25A
• Pitch 10mm
• Number of poles 3
• Number of potentials 3
• Colour: black
• Polyamide 66 insulation
• Height 32.7mm
• Width 30mm
• Depth 46mm
• Manufacturer's part 770-607

A 3-pole intermediate coupler from WAGO with 1 plug and 5 sockets.

• 100% protected against mismating
• Rated current 25A
• Pitch 10mm
• Number of poles 3
• Number of potentials 3
• Colour: black
• Polyamide 66 insulation
• Height 48mm
• Width 30mm
• Depth 46mm
• Manufacturer's part 770-608

Mounting plate for distribution connectors from WAGO.

• Colour: black
• Polyamide 66 insulation
• Manufacturer's part 770-623

Mounting plate for distribution connectors from WAGO.

• Colour: black
• Polyamide 66 insulation
• Manufacturer's part 770-625

A 3-pole H-distribution connector from WAGO with 1 plug and 2 sockets.

• 100% protected against mismating
• Rated current 25A
• Pitch 10mm
• Number of poles 3
• Number of potentials 3
• Colour: black
• Polyamide 66 insulation
• Height 32.7mm
• Width 30mm
• Depth 51mm
• Manufacturer's part 770-634

A 3-pole H-distribution connector from WAGO with 1 plug and 2 sockets suitable for flying leads.

• 100% protected against mismating
• 3rd locking lever
• Rated current 25A
• Pitch 10mm
• Number of poles 3
• Number of potentials 3
• Colour: black
• Polyamide 66 insulation
• Height 32.7mm
• Width 30mm
• Depth 51mm
• Manufacturer's part 770-635

A 3-pole H-distribution connector from WAGO with 1 plug and 2 sockets suitable for flying leads.

• 100% protected against mismating
• 3rd locking lever
• Rated current 25A
• Pitch 10mm
• Number of poles 3
• Number of potentials 3
• Colour: black
• Polyamide 66 insulation
• Height 32.7mm
• Width 30mm
• Depth 51mm
• Manufacturer's part 770-636

Snap-in 3-pole socket with strain relief from WAGO.

• 100% protected against mismating
• Pitch 10mm
• Rated current 25A
• Colour: black
• Depth 36mm
• Width 35.5mm
• Height 17.5mm
• Manufacturer's part 770-703

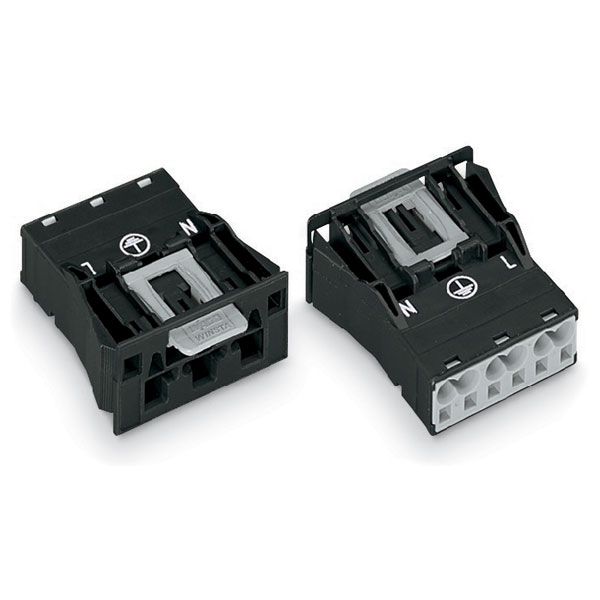

Snap-in 3-pole plug with strain relief from WAGO.

• 100% protected against mismating
• Pitch 10mm
• Rated current 25A
• Colour: black
• Depth 36mm
• Width 35.5mm
• Height 17.5mm
• Manufacturer's part 770-713

A 5-pole h-distribution connector from WAGO with 1 plug, 2 sockets and 3 locking levers.

• 100% protected against mismating
• Pitch 10mm
• Rated current 25A
• Colour: blue
• Depth 46mm
• Width 50mm
• Height 36.7mm
• Manufacturer's part 770-993

Compact PCB terminal block with 5 poles from WAGO with push-in CAGE CLAMP® connection and screwdriver actuation.

• Simple, push-in termination of solid and ferruled conductors
• Double entries for power supply and potential distribution
• Quick and easy PCB replacement without disrupting looped-through potentials
• Rated current 10A
• Pitch 5mm
• Colour: grey
• Number of connection points 10
• Number of potentials 5
• Height 16.25mm
• Width 26.5mm
• Depth 19.8mm
• Manufacturer's part 806-105

Compact PCB terminal block with 8 poles from WAGO with push-in CAGE CLAMP® connection and screwdriver actuation.

• Simple, push-in termination of solid and ferruled conductors
• Double entries for power supply and potential distribution
• Quick and easy PCB replacement without disrupting looped-through potentials
• Rated current 10A
• Pitch 5mm
• Colour: grey
• Number of connection points 16
• Number of potentials 8
• Height 16.25mm
• Width 41.5mm
• Depth 19.8mm
• Manufacturer's part 806-108

Compact PCB terminal block with 10 poles from WAGO with push-in CAGE CLAMP® connection and screwdriver actuation.

• Simple, push-in termination of solid and ferruled conductors
• Double entries for power supply and potential distribution
• Quick and easy PCB replacement without disrupting looped-through potentials
• Rated current 10A
• Pitch 5mm
• Colour: grey
• Number of connection points 20
• Number of potentials 10
• Height 16.25mm
• Width 51.5mm
• Depth 19.8mm
• Manufacturer's part 806-110

Solder pin strip connector with 2 poles from WAGO.

• Pitch 5mm
• Solder pin diameter 1mm
• Solder pin length 3.4mm
• Drilled hole diameter 1.3mm
• Height 12mm
• Width 9.8mm
• Depth 2.7mm
• Manufacturer's part 806-902

Solder pin strip connector with 3 poles from WAGO.

• Pitch 5mm
• Solder pin diameter 1mm
• Solder pin length 3.4mm
• Drilled hole diameter 1.3mm
• Height 12mm
• Width 14.8mm
• Depth 2.7mm
• Manufacturer's part 806-903

Solder pin strip connector with 5 poles from WAGO.

• Pitch 5mm
• Solder pin diameter 1mm
• Solder pin length 3.4mm
• Drilled hole diameter 1.3mm
• Height 12mm
• Width 24.8mm
• Depth 2.7mm
• Manufacturer's part 806-905

Solder pin strip connector with 10 poles from WAGO.

• Pitch 5mm
• Solder pin diameter 1mm
• Solder pin length 3.4mm
• Drilled hole diameter 1.3mm
• Height 12mm
• Width 49.8mm
• Depth 2.7mm
• Manufacturer's part 806-910

The WAGO 3-Pin Equipment Connection Terminal Block Cross-Section 0.5-4mm² 32A Black is suitable for mounting via M3 screw and nut, or self-tapping screw 2.9mm Ø from top L1-N with 2 x pin 2-pole.

• Cross-section: 0.5-4mm²
• Four conductors per pin for single-core and flexible cables of 0.5-4 mm²
• Test jack 2mm Ø
• Weight 20.382g
• 20-12 AWG

The WAGO 5-Pin Equipment Connection Terminal Block Cross-Section 0.5-4mm² 32A Black is suitable for mounting via M3 screw and nut, or self-tapping screw 2.9mm Ø from top L1-N with 2 x pin 2-pole.

• Cross-section: 0.5-4mm²
• Four conductors per pin for single-core and flexible cables of 0.5-4 mm²
• Test jack 2mm Ø
• Weight 34.73g

The WAGO 2-Pin Equipment Connection Terminal Block Cross-Section 0.5-4mm² 32A Black is suitable for mounting via M3 screw and nut, or self-tapping screw 2.9mm Ø from top L1-N with 2 x pin 2-pole.

• Cross-section: 0.5-4mm²
• Four conductors per pin for single-core and flexible cables of 0.5-4 mm²
• Test jack 2mm Ø
• Weight 13.788g
• 20-12 AWG

Insulated comb-style jumper bar from WAGO for conductor entry.

• Colour: black
• Current rating 32A
• Manufacturer's part 862-482

Note: Each bar consists of 5 linked jumpers, as illustrated. The MOQ of 5 will involve the purchase of 5 bars.

Chassis mount terminal block with 3 poles and 12 connection points from WAGO.

• Mounting via M3 screw and nut or self-tapping 2.9mm screw
• Push-in CAGE CLAMP® connection
• Side-entry wiring
• Pitch 12mm
• Colour: black
• Height 22.3mm
• Width 36mm
• Depth 35mm
• Manufacturer's part 862-503

Chassis mount terminal block with 4 poles and 16 connection points from WAGO.

• Mounting via M3 screw and nut or self-tapping 2.9mm screw
• Push-in CAGE CLAMP® connection
• Side-entry wiring
• Pitch 12mm
• Colour: black
• Height 22.3mm
• Width 48mm
• Depth 35mm
• Manufacturer's part 862-504

Chassis mount terminal block with 5 poles and 20 connection points from WAGO.

• Mounting via M3 screw and nut or self-tapping 2.9mm screw
• Push-in CAGE CLAMP® connection
• Side-entry wiring
• Pitch 12mm
• Colour: black
• Height 22.3mm
• Width 60mm
• Depth 35mm
• Manufacturer's part 862-505

Chassis mount terminal block with 2 poles and 8 connection points from WAGO.

• Mounting via M3 screw and nut or self-tapping 2.9mm screw
• Push-in CAGE CLAMP® connection
• Side-entry wiring
• Pitch 12mm
• Colour: black
• Height 22.3mm
• Width 24mm
• Depth 35mm
• Manufacturer's part 862-552

Chassis mount terminal block with 2 poles from WAGO.

• 1 snap-in foot per pole
• Push-in CAGE CLAMP® connection
• Side-entry wiring
• Number of connection points 8
• Number of potentials 2
• Current rating 32A
• Pitch 12mm
• Colour: white
• Height 22.3mm
• Width 24mm
• Depth 35mm
• Manufacturer's part 862-632

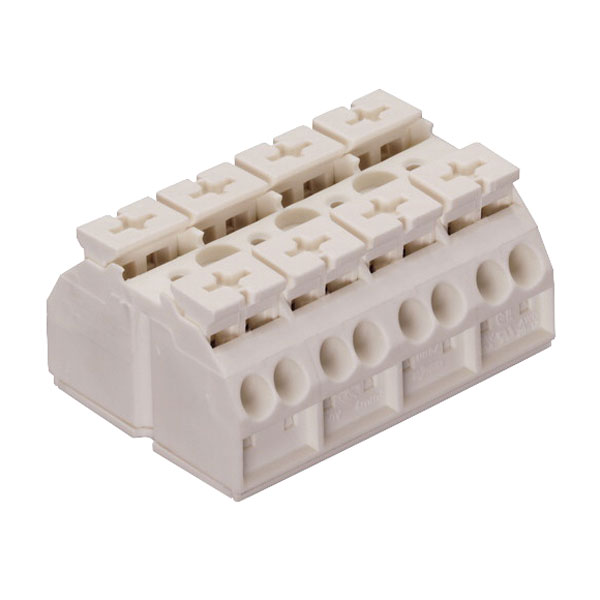

Chassis mount terminal block with 4 poles from WAGO.

• Snap-in foot at positions 1 and 4
• Push-in CAGE CLAMP® connection
• Side-entry wiring
• Number of connection points 16
• Number of potentials 4
• Current rating 32A
• Pitch 12mm
• Colour: white
• Height 22.3mm
• Width 48mm
• Depth 35mm
• Manufacturer's part 862-694

Compact snap-in mounting terminal blockwith 4 poles from WAGO.

• CAGE CLAMP® connection
• Front-entry wiring
• Current rating 24A
• Colour: grey
• Number of connection points 8
• Number of potentials 4
• Height 27.6mm
• Width 22.5mm
• Depth 33.4mm
• Manufacturer's part 869-154

A mounting foot for 260 series terminal blocks. It has a snap-in foot for mounting on a DIN rail.

• Width 6.4mm
• Grey colour
• Manufacturer's part 209-120
