The HellermannTyton 151-00018 CTC10FT6LG is a Clamp for Corrugated Conduit (Tubing) with a base in the shape of a fir tree from the CTC- Series. Due to the individual fins, the clamp can be easily inserted into a pre-drilled hole. The corrugated conduit is then snapped into the clamp where it is securely held. The rib on the inside of the clamp fits into the profile of the tubing and prevents the tubing from slipping.

This clamp is used for applications in the automobile industry, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.

• Compatible with: IWS 8.5-13
• Fire protection properties: Complies with UL94 HB
• Material: Polyamide 6.6 modified impact resistant/heat stabilised (PA66HIRHS)
• Halogen-free: Yes
• Temperature range: -40°C to +105°C
• Dimensions: 8(W) x 21.4(H)mm
• Fir tree length: 11.1mm
• Disc diameter: 16mm
• Fixing hole: 6.5-7mm
• Panel thickness max: 6.0mm
• Supplied Singularly
• Supplied in Black
• Type: CTC Series
• Manufacturer's part: 151-00018 CTC10FT6LG

The HellermannTyton 155-25201 CTC22FT9 is a Clamp for Corrugated Conduit (Tubing) with a base in the shape of a fir tree from the CTC- Series. Due to the individual fins, the clamp can be easily inserted into a pre-drilled hole. The corrugated conduit is then snapped into the clamp where it is securely held. The rib on the inside of the clamp fits into the profile of the tubing and prevents the tubing from slipping.

This clamp is used for applications in the automobile industry, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.

• Compatible with: IWS 19-29
• Fire protection properties: Complies with UL94 HB
• Material: Polyamide 6.6 modified impact resistant/heat stabilised (PA66HIRHS)
• Halogen-free: Yes
• Temperature range: -40°C to +105°C
• Dimensions: 8(W) x 37.7(H)mm
• Fir tree length: 12.2mm
• Disc diameter: 23mm
• Fixing hole: 8-7.9mm
• Panel thickness max: 5.0mm
• Supplied Singularly
• Supplied in Black
• Type: CTC Series
• Manufacturer's part: 155-25201 CTC22FT9

The HellermannTyton HelaGuard 166-11202 HG-LW13 is a Lightweight Non-Metallic Conduit from the HG-LW Range. The conduit is highly flexible and has a small bending radius. Ideal for applications in machine building, plant construction, control panels and public buildings, wherever lower mechanical protection is required. The conduit can also be used in moving applications.

• Halogen-free: Yes
• Material: Polamid 6 PA6
• Specification: HelaGuard Light
• Operating temperature: -40°C to +120°C
• Flammability: Self extinguishing According to EN 61386
• Nominal diamater: 13mm
• Outside diamater: 13mm
• Inside diamater: 8.4mm
• Bending radius: 25mm
• Supplied in lengths of 1m
• Supplied in Black UV Resistant
• Type: HG-LW Range
• Manufacturer's part: 166-11202 HG-LW13 HelaGuard

The HellermannTyton HelaGuard 166-11207 HG-LW42 is a Lightweight Non-Metallic Conduit from the HG-LW Range. The conduit is highly flexible and has a small bending radius. Ideal for applications in machine building, plant construction, control panels and public buildings, wherever lower mechanical protection is required. The conduit can also be used in moving applications.

• Halogen-free: Yes
• Material: Polamid 6 PA6
• Specification: HelaGuard Light
• Operating temperature: -40°C to +120°C
• Flammability: Self extinguishing According to EN 61386
• Nominal diamater: 42mm
• Outside diamater: 42.5mm
• Inside diamater: 35.7mm
• Bending radius: 65mm
• Supplied in lengths of 1m
• Supplied in Black UV Resistant
• Type: HG-LW Range
• Manufacturer's part: 166-11207 HG-LW42 HelaGuard

The HellermannTyton HelaGuard 166-11401 HG-FR13 is a Non-Metallic Conduit from the HG-FR Range. The conduit is highly flame retardant, highly flexible and has a high fatigue life. Ideal for applications in railway vehicles, railway tunnels, underground stations and public buildings, where high fire protection is required.

• Halogen-free: Yes
• Material: Polamid 6 PA6-FR
• Specification: HelaGuard Light
• Operating temperature: -40°C to +120°C
• Flammability: Self extinguishing According to EN 61386
• Nominal diamater: 13mm
• Outside diamater: 13mm
• Inside diamater: 9.8mm
• Bending radius: 25mm
• Supplied in lengths of 1m
• Supplied in Black UV Resistant
• Type: HG-LW Range
• Manufacturer's part: 166-11401 HG-FR13 HelaGuard

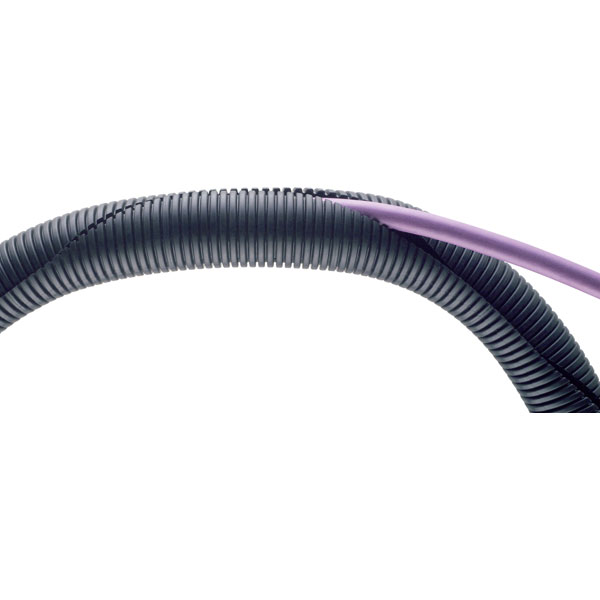

The HellermannTyton 166-11802 is a Non Metallic Double Slit Conduit from the HG-DC Range. This conduit is ideal when there is the requirement for retrofitting flexible conduit protection to an already fitted installation. This lightweight, double slit conduit is a non-metallic flexible system that offers ease of installation where mechanical protection for electrical wiring, pneumatic pipes and cables is subsequently found to be required.

The conduit is easily slipped over any cabling, thanks to the double slit along its length. Once in position it provides adequate protection and full cable management, protecting the cables from snagging, abrasion or accidental damage.

• Fire protection properties: in accordance with UL94 V2
• Halogen-free: Yes
• Specification: Protective hose HealGuard PA6 Double Slit
• Operating temperature: -40°C to +110°C
• Flammability: Self extinguishing According to EN 61386
• Nominal diamater: 16mm
• Outside diamater: 15.8mm
• Inside diamater: 10.5mm
• Bending radius: 60mm
• Supplied in lengths of 1m
• Supplied in Black
• Type: HG-DC Range
• Manufacturer's part: 166-11802 HG-DC16

The HellermannTyton 166-11900 HG-PP10 is a Standard Duty Conduit has been manufactured from Polypropylene (PP). It has been designed for machine building, electrical installations, buildings, particularly when buried in concrete or plaster.

• Very flexible
• Abrasion resistant
• Resistant to acids and alkalis
• Self-extinguishing to IEC 61386
• Inside diameter: 6.3mm
• Operating Temperature: -20°C to +90°C
• Supplied in lengths of 1m
• Supplied in black (UV resistant)
• Type: HG-PP10
• Manufacturer's part: 166-11900

The HellermannTyton 166-11901 HG-PP13 is a Standard Duty Conduit has been manufactured from Polypropylene (PP). It has been designed for machine building, electrical installations, buildings, particularly when buried in concrete or plaster.

• Very flexible
• Abrasion resistant
• Resistant to acids and alkalis
• Self-extinguishing to IEC 61386
• Colour: Black
• Content: Sold per metre
• Inside diameter: 9.8mm
• Operating Temperature: -20°C to +90°C
• Supplied in lengths of 1m
• Supplied in black (UV resistant)
• Type: HG-PP13
• Manufacturer's part: 166-11901

The HellermannTyton 166-11902 HG-PP16 is a Standard Duty Conduit has been manufactured from Polypropylene (PP). It has been designed for machine building, electrical installations, buildings, particularly when buried in concrete or plaster.

• Very flexible
• Abrasion resistant
• Resistant to acids and alkalis
• Self-extinguishing to IEC 61386
• Colour: Black
• Content: Sold per metre
• Inside diameter: 11.8mm
• Operating Temperature: -20°C to +90°C
• Supplied in lengths of 1m
• Supplied in black (UV resistant)
• Type: HG-PP16
• Manufacturer's part: 166-11902

The HellermannTyton 166-11907 HG-PP28 is a Standard Duty Conduit has been manufactured from Polypropylene (PP). It has been designed for machine building, electrical installations, buildings, particularly when buried in concrete or plaster.

• Very flexible
• Abrasion resistant
• Resistant to acids and alkalis
• Self-extinguishing to IEC 61386
• Colour: Black
• Content: Sold per metre
• Inside diameter: 22.8mm
• Operating Temperature: -20°C to +90°C
• Supplied in lengths of 1m
• Supplied in black (UV resistant)
• Type: HG-PP28
• Manufacturer's part: 166-11907

The HellermannTyton 166-11910 HG-PP54 is a Standard Duty Conduit has been manufactured from Polypropylene (PP). It has been designed for machine building, electrical installations, buildings, particularly when buried in concrete or plaster.

• Very flexible
• Abrasion resistant
• Resistant to acids and alkalis
• Self-extinguishing to IEC 61386
• Colour: Black
• Content: Sold per metre
• Inside diameter: 47.2mm
• Operating Temperature: -20°C to +90°C
• Supplied in lengths of 1m
• Supplied in black (UV resistant)
• Type: HG-PP54
• Manufacturer's part: 166-11910

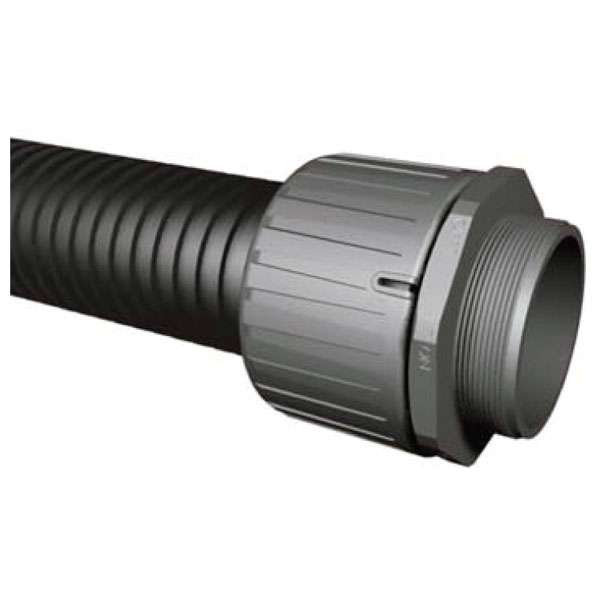

The HellermannTyton 166-21000 HG10 is a Straight Conduit Fitting with a fixed External Thread, and comes from the HG-S Series. This fitting has a high pull off strength, and is resistant to solvents and oils. The conduit fitting has been manufactured from Polyamide 6.6 (PA66).

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts
• Halogen-free: Yes
• Material: Polyamide 6.6
• Specification: Threaded hose connection
• Operating temperature: -50°C to +135°C
• Fire protection properties: in accordance with UL94 V2
• Nominal diamater: 10mm
• Thread size: M12
• Bore size: 7.5mm
• Supplied in Singularly
• Supplied in Black
• Type: HG-S Range
• Manufacturer's part: 166-21000 HG10-S-M12

The HellermannTyton 166-210001HG13 is a Straight Conduit Fitting with a fixed External Thread, and comes from the HG-S Series. This fitting has a high pull off strength, and is resistant to solvents and oils. The conduit fitting has been manufactured from Polyamide 6.6 (PA66).

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts
• Halogen-free: Yes
• Material: Polyamide 6.6
• Specification: Threaded hose connection
• Operating temperature: -50°C to +135°C
• Fire protection properties: in accordance with UL94 V2
• Nominal diamater: 13mm
• Thread size: M16
• Bore size: 11mm
• Supplied in Singularly
• Supplied in Black
• Type: HG-S Range
• Manufacturer's part: 166-21001 HG13-S-M16

The HellermannTyton 166-21011 HG11 is a Straight Conduit Fitting with a fixed External Thread, and comes from the HG-S Series. This fitting has a high pull off strength, and is resistant to solvents and oils. The conduit fitting has been manufactured from Polyamide 6.6 (PA66).

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts
• Halogen-free: Yes
• Material: Polyamide 6.6
• Specification: Threaded hose connection
• Operating temperature: -50°C to +135°C
• Fire protection properties: in accordance with UL94 V2
• Nominal diamater: 13mm
• Thread size: PG9
• Bore size: 11mm
• Supplied in Singularly
• Supplied in Black
• Type: HG-S Range
• Manufacturer's part: 166-21011 HG13-S-PG9

The HellermannTyton 166-22104 HGL28 is a Straight Cable Gland Fitting from the HG-SCG Series. This straight fitting is supplied with an M25 thread and comes complete with cable seal and strain relief. This straight cable gland provides strain relief and is also highly resistant to solvents and oils.

• Provides strain relief
• Seals cable at IP68 and IP69k
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Inside diameter: 22.8mm
• Operating Temperature: -50°C to +135°C
• Supplied singly
• Supplied in black
• Screw thread: M25
• Type: HGL28-SCG
• Manufacturer's part: 166-22104

The HellermannTyton 166-25701 PACC16 is a Clip for Corrugated Conduit from the PACC Series. The clip is quick and easy to install and is supplied with a through hole, so that it can be fastened to the required surface with a screw. The clip has been manufactured from Polyamide 6.6 (PA66) and issupplied in black.

• Easy and quick assembly with non-metallic conduits
• Lid is integrated
• Hole for fastening with screw
• Inner rib prevents conduit from slipping
• Can be used in C-shaped DIN rails
• Fire protection properties: in accordance with UL94 V2
• Halogen-free: Yes
• Material: Polyamide 6.6
• Specification: Hose holder
• Operating temperature: -50°C to +130°C
• Nominal diamater: 16mm
• Fixing hole: M5
• Supplied in singly
• Supplied in Black
• Type: PACC Range
• Manufacturer's part: 166-25701 PACC16

The HellermannTyton 166-25706 PACC54 is a Clip for Corrugated Conduit from the PACC Series. The clip is quick and easy to install and is supplied with a through hole, so that it can be fastened to the required surface with a screw. The clip has been manufactured from Polyamide 6.6 (PA66) and issupplied in black.

• Easy and quick assembly with non-metallic conduits
• Lid is integrated
• Hole for fastening with screw
• Inner rib prevents conduit from slipping
• Can be used in C-shaped DIN rails
• Fire protection properties: in accordance with UL94 V2
• Halogen-free: Yes
• Material: Polyamide 6.6
• Specification: Hose holder
• Operating temperature: -50°C to +130°C
• Nominal diamater: 54mm
• Fixing hole: M6
• Supplied in singly
• Supplied in Black
• Type: PACC Range
• Manufacturer's part: 166-25703 PACC54

The HellermannTyton 166-30101 SC12 is a HelaGuard Galvanised Steel Conduit from the SC Series. This flexible Steel Conduit has a high compression strength and high tensile and impact strength.

Applications include under floor wiring in offices, data cabling, protection of hydraulic or pneumatic conduits and high mechanical protection.

• High compression, tensile and impact strength
• Very flexible
• Material: Galvanised Steel
• Specification: HelaGuard SC Protective steel hose
• Halogen-free: Yes
• Material: Polyamide 6.6
• Operating temperature: -100°C to +300°C
• Nominal diamater: 12m
• Outside diamater: 13mm
• Inside diamater: 10.2
• Supplied in lengths of 1m
• Supplied in Metal
• Type: SC Series
• Manufacturer's part: 166-30101 SC12

The HellermannTyton 166-30702 is a Galvanised Steel Wiring Duct with black PVC Conduit from the HTWD-DIN Range. This wiring duct will efficiently route and protect wire and cable. The dimensions of the HTWD-DIN wiring duct as well as the spacing of the punched holes in the base comply with EN 50085. The fingers forming the slots can be removed at snap-off points without forming sharp edges.

The wiring duct has been finished with a self-adhesive tape on the bottom of the trunking to provide flexibility for duct mounting and is ideal to hold the duct in place before permanent fixing.

• High compression, tensile and impact strength
• Very flexible
• Good resistance to alkalis and acids
• Good resistance to chemicals
• Halogen-free: No
• Material: Galvanised Steel with black PVC-Sheath
• Specification: HelaGuard PSC Protective steel hose
• Inside dimensions: 13mm
• Supplied in lengths of 1m
• Type: HTWD-DIN Range
• Manufacturer's part: 166-30702

The HellermannTyton 169-22100 IWS-10-N6-BK-L1 is an Isolvin Corrugated Conduit from the IWS Range. The conduit has been manufactured from Polyamide 6 and is characterised above all, by its excellent resistance to oils, fuels and solvents. It is resistant to abrasion and offers excellent mechanical protection as well as excellent fatigue strength under alternating flexural stress.

• Fire protection properties: Complies with UL94 HB and FMVSS-302
• Halogen-free: Yes
• Material: Polyamide 6 (PA6)
• Operating temp.: -40°C to +120°C
• Outside diameter: 13mm
• Inside diameter: 9.9mm
• Wall thickness: 0.25mm
• Other dimensions: 2.7(P) x 1.8(W)mm
• Supplied in lengths of 50m
• Supplied in Black
• Type: IWS
• Manufacturer's part: 169-22100 IWS-10-N6-BK-L1

The HellermannTyton 173-00600 HEGEMIP06 is a Braided Sleeving from the Helagaine HEGEMIP Range. The braided sleeving has been manufactured from tin-plated copper and polyester threads. Helagaine HEGEMIP braided sleeves offer electromagnetic protection as well as secure cable bundling.

The mix of materials, make the sleeves expandable and easy to apply. In contrast to purely copper braids, the HEGEMIP sleeves can be bent and twisted and still return to their original form. As a result, this HEGEMIP braid is particularly suitable for applications where there is movement.

The supporting inner tube makes insertion of cables easier, and protects the sleeves from deformation during transport. Besides it's excellent electromagnetic protection ratings, the braid is very resistant to abrasion.

Applications for Helagaine HEGEMIP braided sleeving is for highly sensitive electronics, such as electrical appliances and machines, radio equipment, military and automotive engineering.

• Material: Polyester (PET), tinned-copper (CU)
• Fire protection properties: Complies with UL94 HB and FMVSS-302
• Halogen-free: Yes
• Temperature range: -40°C to +175°C
• Braid diameter: 6.0mm
• Bundle minimum: 5.0mm
• Bundle maximum: 10.0mm
• Weight: 28.5g/m
• Supplied per metre
• Supplied in Aluminium, Black
• Type: Helagaine HEGEMIP
• Manufacturer's part: Hellemann Tyton 173-00600 HEGEMIP06

The HellermannTyton 173-00800 HEGEMIP08 is a Braided Sleeving from the Helagaine HEGEMIP Range. The braided sleeving has been manufactured from tin-plated copper and polyester threads. Helagaine HEGEMIP braided sleeves offer electromagnetic protection as well as secure cable bundling.

The mix of materials, make the sleeves expandable and easy to apply. In contrast to purely copper braids, the HEGEMIP sleeves can be bent and twisted and still return to their original form. As a result, this HEGEMIP braid is particularly suitable for applications where there is movement.

The supporting inner tube makes insertion of cables easier, and protects the sleeves from deformation during transport. Besides it's excellent electromagnetic protection ratings, the braid is very resistant to abrasion.

Applications for Helagaine HEGEMIP braided sleeving is for highly sensitive electronics, such as electrical appliances and machines, radio equipment, military and automotive engineering.

• Material: Polyester (PET), tinned-copper (CU)
• Fire protection properties: Complies with UL94 HB and FMVSS-302
• Halogen-free: Yes
• Temperature range: -40°C to +175°C
• Braid diameter: 8.0mm
• Bundle minimum: 8.0mm
• Bundle maximum: 11.5mm
• Weight: 26.5g/m
• Supplied per metre
• Supplied in Aluminium, Black
• Type: Helagaine HEGEMIP
• Manufacturer's part: Hellemann Tyton 173-00800 HEGEMIP08

This galvanised steel hose clip from LappKabel has a worm gear drive and is ideal for clamping cable conduit.

• Inside diameter: 16 - 25mm
• Type: SILVYN® SCH 16 - 25 S
• Manufacturer's part 52003160

Easy-to-fit high tensile conduit gland from LappKabel, offering added protection against vibration.

• Protection class IP66
• With plug-lock
• Free of silicone and halogen
• Colour: Black (RAL 9005)
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506315

Easy-to-fit high tensile conduit gland from LappKabel, offering added protection against vibration.

• Protection class IP66
• With plug-lock
• Free of silicone and halogen
• Colour: Black (RAL 9005)
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506325

Easy-to-fit high tensile conduit gland from LappKabel, offering added protection against vibration.

• Protection class IP66
• With plug-lock
• Free of silicone and halogen
• Colour: Black (RAL 9005)
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506345

Easy-to-fit high tensile conduit gland from LappKabel, offering added protection against vibration.

• Protection class IP66
• With plug-lock
• Free of silicone and halogen
• Colour: Black (RAL 9005)
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506355

Easy-to-fit high tensile conduit gland from LappKabel, offering added protection against vibration.

• Protection class IP66
• With plug-lock
• Free of silicone and halogen
• Colour: Black (RAL 9005)
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506365

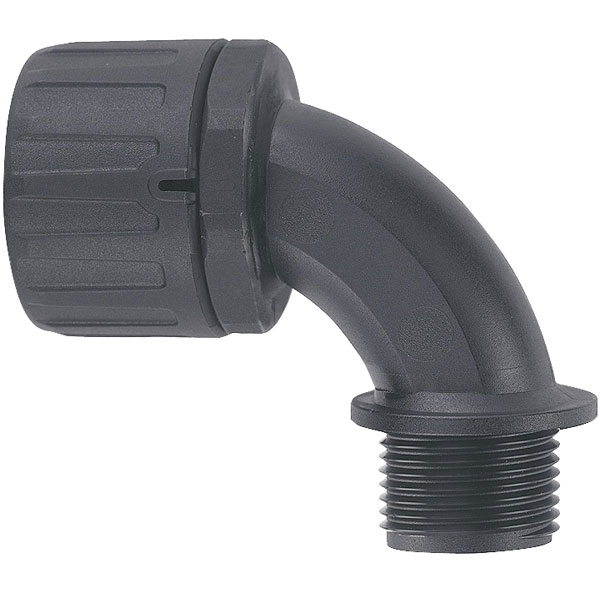

Easy-to-fit high tensile 90° conduit gland from

• 90° angle
• Protection class IP66
• With plug-lock
• Colour: Black
• Compatible with: 60 11 53
• Inside diameter: 6.3mm
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506485

Easy-to-fit high tensile 90° conduit gland from LappKabel allows an elbow joint to be added to trunking for cabling etc.

• 90° angle
• Protection class IP66
• With plug-lock
• Colour: Black
• Compatible with: 60 12 02
• Inside diameter: 16.7mm
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506525

This Silvyn FCL conduit clip from LappKabel offers fast assembly and disassembly and high mechanical strength.

• With cover, with hose catch
• Colour: Black (RAL 9005)
• Inside diameter: 6.3mm
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506905

This Silvyn FCL conduit clip from LappKabel offers fast assembly and disassembly and high mechanical strength.

• With cover, with hose catch
• Colour: Black (RAL 9005)
• Inside diameter: 22.8mm
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55506945

Easy-to-fit high tensile conduit gland from LappKabel, offering added protection against vibration.

• Protection class IP66
• With plug-lock
• Free of silicone and halogen
• Colour: Black (RAL 9005)
• Material: PA 6
• Temperature range: -40 to +135°C
• Manufacturer's part 55507055

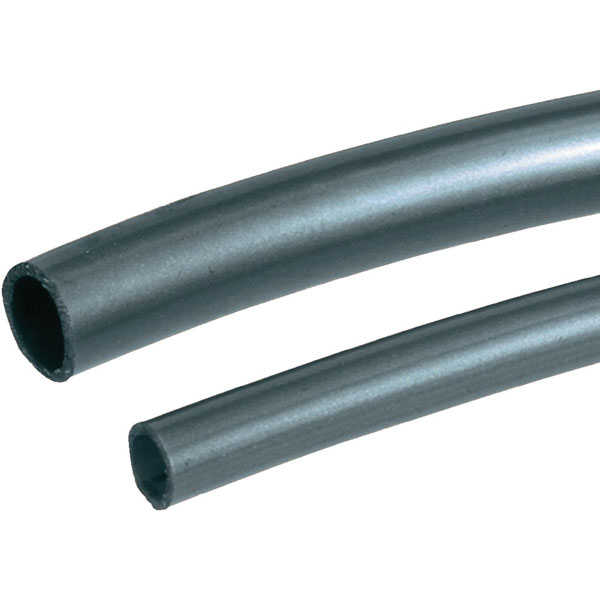

This flexible soft conduit from LappKabel offers easy protection and additional insulation for cables and groups of wires.

• Suitable for protection against dust and damp
• Flame-resistant and self-extingishing
• Electrical dielectric strength 25kV/mm
• Tear strength: 23 N/mm² Shore hardness A: 75º to 90º
• Colour: Silver-grey (RAL 7001)
• Sold b y metre
• Inside diameter: 13mm
• Material: Soft PVC
• Outside diameter: 16mm
• Temperature range: -5 to +80°C
• Manufacturer's part 61713300

This crushable and extendable grey PVC conduit from LappKabel is ideal for use in a number of applications including drag chains and robotics.

• VDE approved
• Bend radius: 10mm
• Colour: Grey
• Inside diameter: 10mm
• Sold by metre
• Material: Soft PVC and insulated spring steel wire spiral
• Outside diameter: 14mm
• Temperature range: -20 to +80ºC
• Manufacturer's part 61721700

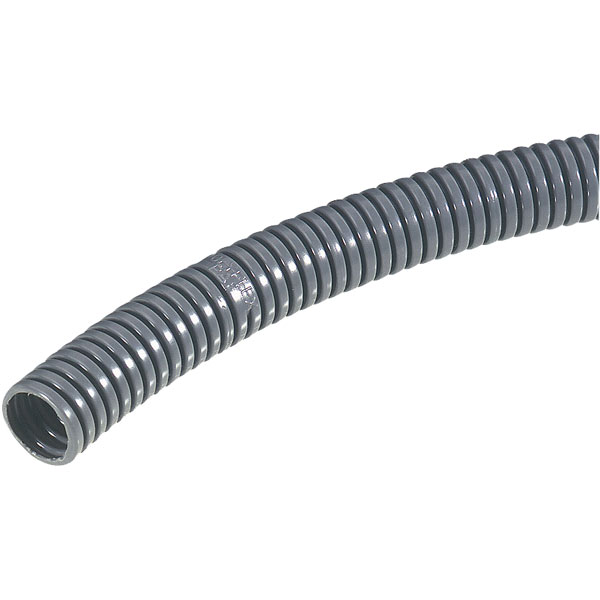

This Silvyn RILL lightweight corrugated conduit from LappKabel is highly flexible and crush-resistant.

• Very flexible
• Colour: Grey
• Halogen free
• Inside diameter: 23mm
• Material: PA 6 silicone-free, UL94 V0
• Outside diameter: 28.5mm
• Standards: UL file no.: E86359
• Temperature range: -40 to +115°C
• Sold per metre: Yes
• Manufacturer's part 61746970

This heat resistant blue PVC conduit from LappKabel is bendable and crush-resistant and is ideal for the easy assembly and fixing of cables and wires.

• Heat-resistant
• Bend radius: 20mm
• Colour: Blue
• Inside diameter: 10mm
• Material: PVC
• Outside diameter: 14.7mm
• Temperature range: -10°C to +90°C
• Sold per metre: Yes
• Manufacturer's part 61751700

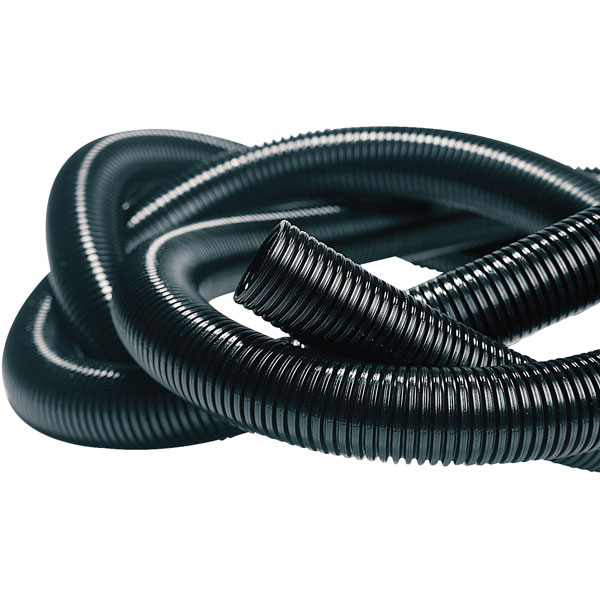

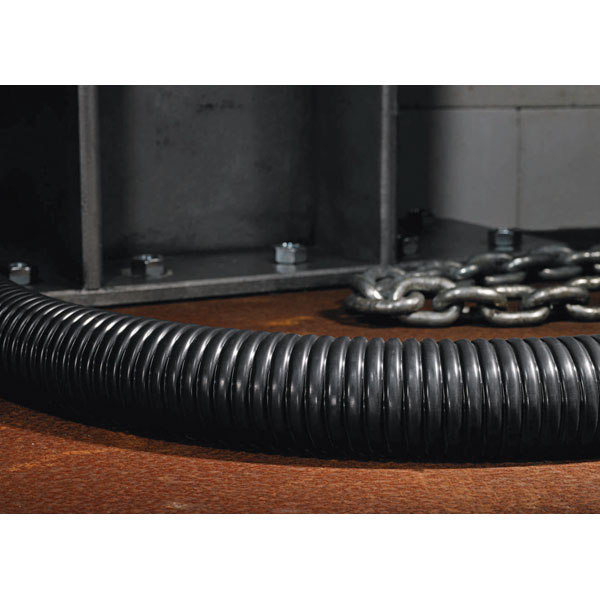

This crush and impact-resistant black corrugated PVC conduit from LappKabel is ideal for use in a number of applications both indoors and out.

• UV, high chemical and mechanical resistance
• Free of silicone and halogen
• Bend radius: 50mm
• Colour: Black (RAL 9005)
• Halogen free
• Inside diameter: 22.5mm
• Material: PA 6
• Outside diameter: 28.5mm
• Temperature range: (static) -40 to +120ºC, (dynamic) -20 to +100ºC
• Manufacturer's part 61754045

This insulating tube from LappKabel is made from silicone and is ideal for bundling and insulating cables against heat, cold and temperature fluctuations.

• Colour: Ecru
• Inside diameter: 3mm
• Material: Silicone
• Temperature range: -60°C to +180°C
• Type: ISS 3
• Wall thickness: 0.4mm
• Sold per metre: Yes
• Manufacturer's part 61760070

This insulating tube from LappKabel is made from silicone and is ideal for bundling and insulating cables against heat, cold and temperature fluctuations.

• Colour: Ecru
• Inside diameter: 4mm
• Material: Silicone
• Temperature range: -60°C to +180°C
• Type: ISS 4
• Wall thickness: 0.75mm
• Sold per metre: Yes
• Manufacturer's part 61760080

This insulating tube from LappKabel is made from silicone and is ideal for bundling and insulating cables against heat, cold and temperature fluctuations.

• Colour: Ecru
• Inside diameter: 7mm
• Material: Silicone
• Temperature range: -60°C to +180°C
• Type: ISS 7
• Wall thickness: 0.9mm
• Sold per metre: Yes
• Manufacturer's part 61760110

This insulating tube from LappKabel is made from PVC and is ideal for bundling and insulating cables.

• Colour: Black
• Fire protection properties: According to DIN 75200 (FMVSS302 223)
• Inside diameter: 8mm
• Material: Soft PVC with smooth surface
• Temperature range: -10°C to +60°C
• Type: ISY 8
• Wall thickness: 0.7mm
• Sold per metre: Yes
• Manufacturer's part 61793090

This insulating tube from LappKabel is made from PVC and is ideal for bundling and insulating cables.

• Colour: Black
• Fire protection properties: According to DIN 75200 (FMVSS302 223)
• Inside diameter: 10mm
• Material: Soft PVC with smooth surface
• Temperature range: -10°C to +60°C
• Type: ISY10
• Wall thickness: 0.7mm
• Sold per metre: Yes
• Manufacturer's part 61793110

This insulating tube from LappKabel is made from PVC and is ideal for bundling and insulating cables.

• Colour: Black
• Fire protection properties: According to DIN 75200 (FMVSS302 223)
• Inside diameter: 16mm
• Material: Soft PVC with smooth surface
• Temperature range: -10°C to +60°C
• Type: ISY16
• Wall thickness: 1mm
• Sold per metre: Yes
• Manufacturer's part 61793119

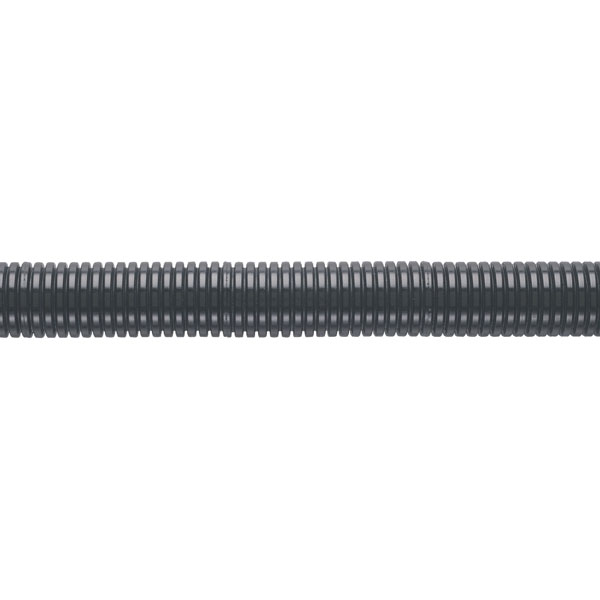

This black conduit from LappKabel is slit in a sinusoidal curve which prevents small cables with small radii from escaping.

• Made from polypropylene
• UV resistant
• Colour: Black
• Halogen free
• Inside diameter: 7.5mm
• Material: PP
• Outside diameter: 10mm
• Temperature range: -40 to +130°C
• Manufacturer's part 61806505

This black conduit from LappKabel is slit in a sinusoidal curve which prevents small cables with small radii from escaping.

• Made from polypropylene
• UV resistant
• Colour: Black
• Halogen free
• Inside diameter: 8.5mm
• Material: PP
• Outside diameter: 11.4mm
• Temperature range: -40 to +130°C
• Manufacturer's part 61806510

This LappKabel SILVYN Conduit Rill (Protection Hose) is a protective tube made of polypropylene. This conduit is used wherever a subsequent wiring assembly is required, but no high demand is placed on the protection. This means there is no need to install a conduit gland. The slit of the conduit does not run in a straight line, but in a succession of waves or curves. This helps small diameter cables to be managed more securely.

Applications include mechanical engineering, electrical industry and shipbuilding

• UV resistant
• Sold by the metre: Yes
• Halogen-free: Yes
• Material: Polypropylene PP
• Temperature range: -30°C to +130°C
• Type: SILVYN® Rill PP
• Supplied with inside diameter: 13mm
• Supplied with outside diameter: 15.8mm
• Supplied in black (RAL 9005)
• Manufacturer's part: LappKabel 61806525

This black conduit from LappKabel is slit in a sinusoidal curve which prevents small cables with small radii from escaping.

• Made from polypropylene
• UV resistant
• Colour: Black
• Halogen free
• Inside diameter: 19mm
• Material: PP
• Outside diameter: 23.9mm
• Temperature range: -40 to +130°C
• Manufacturer's part 61806540

This flexible Silvyn RILL conduit from LappKabel is made from halogen-free black polyamide with a sinusoidal slit which remains closed under torsion.

• Polyamide 6.6
• Colour: Black
• Halogen free
• Inside diameter: 12.2mm
• Material: PA6 thermally modified, cadmium-free, halogen-free
• Outside diameter: 15.7mm
• Temperature range: -40°C to +140°C
• Manufacturer's part 61806565

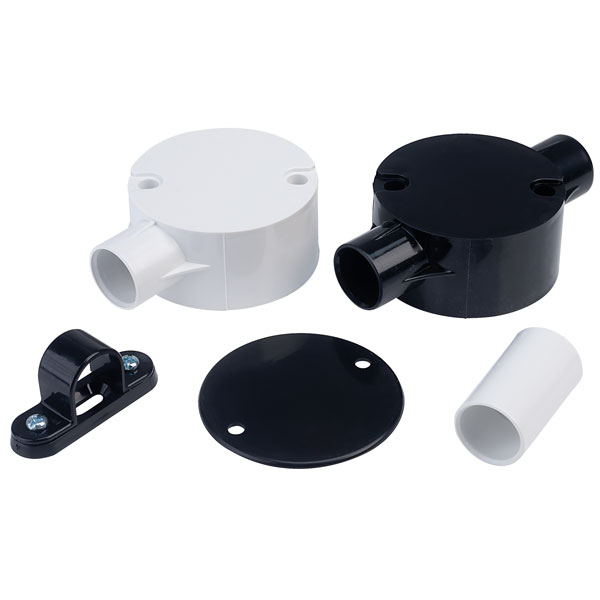

Tower black straight couplings for 20mm diameter round PVC conduit from Schneider Electric.

• Colour: black
• Robust heavy gauge
• Supplied in a pack of 100
• Schneider Electric type Tower ISM80053
