The Chocolate Vending Machine
By Tim Surtell

This working model of a vending machine uses electronics and mechanisms which were probably similar to those used in real vending machines before the use of modern microprocessors.  It was first built in 1995 and has since been re-painted and re-built with a more reliable mechanism.

Click to enlarge

The model vending machine
| Enlarge to 640x480 |

Using the Machine

How the Machine Works

The Electronics

The vending machine uses a simple circuit with two relays wired up to 'latch' on when power is applied to the relay coil.  The relays stay on until the power is removed. The circuit is shown in figure 1.

Further Information Relays - Includes an explanation of the latching relay circuit

When a coin is inserted into the coin slot, it pushes a micro-switch S4 which switches on the money relay RL1 . The button lamp L3 and the lamps above the sweet dispensers L4-6 will now be lit. When the button S5 is pressed, the button relay RL2 is switched on, activating one of the three motors depending on the position of rotary switch S6. The diodes D1-3 stop current passing the wrong way through the other motors via the other lamps. The motor rotates, pushing out a sweet, until one of three normally-closed micro-switches S7-9 is activated by one of the gear wheels.  This breaks the circuit to the money relay RL1 and switches it off. In turn, button relay RL2 is also switched off. The motor and lamps are now off ready for the next customer.

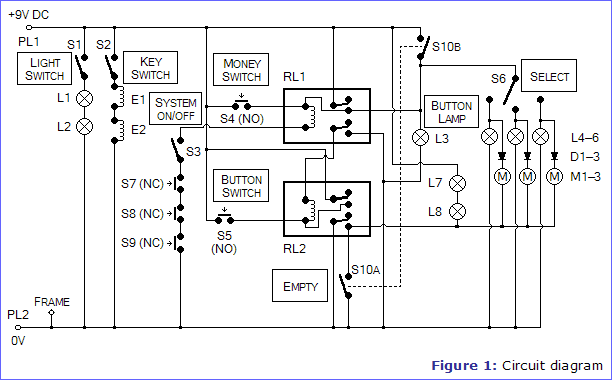

Figure 1: Circuit diagram

The Mechanics

Each of the three sweet dispensers is driven by a 9V motor which has a worm gear on its axle.  This meshes with a 19-tooth pinion which in turn meshes with a 57-tooth gear. The axle on which this gear is placed runs down to the base of the dispenser where a 19-tooth pinion meshes with a 57-tooth gear that pushes out the sweet.  On the underside of this gear is a right-angle bracket that pushes against a micro-switch S7-9 to reset the system after one revolution.

Operating the Machine

To open the side door of the machine requires the key to be inserted into the key-switch at the rear of the machine. The rear door is simply held closed by a magnet. Behind the side door, there is access to the money tray and three switches.  The system on/off switch turns the machine on and off. The light switch operates three lamps to light the inside of the machine. An empty button is provided to allow each dispenser to be quickly emptied. When pressed, the motor of the chosen dispenser turns rapidly and the system is not reset after each revolution.

To load sweets into the machine means first flicking the system on/off switch. The dispenser to be filled is selected using the rotary switch, and the empty button is pushed momentarily.

A Meccano axle rod is inserted at the base of the dispenser to stop the sweets falling out as the dispenser is loaded. The back of the dispenser is on a hinge and is opened by pulling down a catch at the top. After loading the sweets, the back of the dispenser is put back into place, the axle rod is removed and the system on/off switch is flicked again.

This procedure may seem like a lot of hassle, but it is better than the procedure for loading the original machine: the whole mechanism had to be removed, and it was awkward putting it back into place!

Further Model Details

Click to enlarge

The coin slot
| Enlarge to 640x480 |

Click to enlarge

With the rear door open, showing the three dispensers
| Enlarge to 640x480 |

Click to enlarge

With the side door open, showing the electronics
| Enlarge to 640x480 |

Article Information
Source: Electronics in Meccano - www.eleinmec.com | First published in EiM: Issue 1 (September 1998)
Topic: Model Studies | Created: 2/10/2007 | Last modified: 2/11/2007
